2 Assembly Instructions for PCB Camera, Multicolor SIPLACE S-25 HM / S-27 HM 2.4 Assembly Kits, Tools 02/2007 Edition 56 2.4 Assembly Kit s, T ools 2.4.1 Assembly Kit "PCB Camera Mu lticolor S-25 HM / S-27 HM" …
SIPLACE S-25 HM / S-27 HM 2 Assembly Instructions for PCB Camera, Multicolor
02/2007 Edition 2.3 Safety Instructions
55
Rules for Germany:
Observe the guidelines of the Main Association of the German Trade Association, VBG 93.
In all other countries, comply with the pertinent guidelines and standards of the specific countries
in question.
Standards to be observed:
IEC 60825-1, EN 60825-1.
2
2.3.2 Definitions
DANGER
in terms of these instructions means that death, severe bodily injury or considerable material da-
mage WILL occur if the instructions about danger are not followed.
2
WARNING
in terms of these instructions means that death, severe bodily injury or considerable material da-
mage may occur if the warnings are not heeded. 2
CAUTION
in terms of these instructions mean that minor bodily injury or material may occur if the cautions
are not heeded. 2
NOTE
in terms of these instructions is a statement of important information about the product or the
pertinent portion of the instructions to which particular attention is being drawn. 2
2 Assembly Instructions for PCB Camera, Multicolor SIPLACE S-25 HM / S-27 HM
2.4 Assembly Kits, Tools 02/2007 Edition
56
2.4 Assembly Kits, Tools
2.4.1 Assembly Kit "PCB Camera Multicolor S-25 HM / S-27 HM"
2
2.4.2 Tools, Auxiliary Test Equipment and Expendable Materials
– Drill, possibly cable drum
(only for S.25 HM with a manufacturing date Sep to Dec 98)
– Drill bits for core diameter 3.3 mm and thread cutter M4
(only for S.25 HM, with a manufacturing date Sep to Dec 98)
– Vacuum cleaner (only for S.25 HM, with a manufacturing date Sep to Dec 98)
– Set of Allen wrenches
– Oblique-nosed cutting pliers
– Open-end wrench or size 6 mm socket wrench (only for HS-50)
– Wire stripper
– ESD bracelet
– Crimping pliers made by AMP (for connector sleeves)
– Insulating tape and permanent marker
– Ethyl alcohol.
1 Assembly Kit "PCB Camera Multicolor S-25 HM / S-27 HM" Item no. 00358042-01
2
PCB Camera Multicolor assembly, made by Sticksel LP-Kamera
Multicolor, Fa. Sticksel each with 2 connection cables
Item no. 00355462-01
2
Spacer plate (= adapter) Item no. 00348078-01
6
hex head cap screw M3 x 14 (captive) Item no. 00327105-01
2
PCB camera board, modular, made by Sticksel Item no. 00344490-01
1
Assembly kit 50 V module for PCB camera S-25 HM / S-27 HM,
consisting of:
Item no. 00357863-01
1 Relay RS 30 / 24 VDC GSE 1 A,
manufacturer: Weidmüller: Order no. 11 01 66
Item no. 00345646-01
1 Converter 24V/50V 50 mA, Siemens AG (universal illumination
converter)
Item no. 00349095-01
1 Retrofit cable for voltage module, 50 V, consisting of: Item no. 00356979-01
Cable W1 with 2 connector sleeves and 1 twin connector sleeve
Cable W2, complete, with 1 connector sleeve *)
Cable W3, complete, with 1 connector sleeve *)
Cable W4, complete, with connector sleeves
Cable W 5, complete, with 2 connector sleeves
7 Twin connector sleeves 2 x 1.5 mm
2
, Order no. 18H 7081,
Bürklin (1unit = reserve)
Order no. 18H 7081
SIPLACE S-25 HM / S-27 HM 2 Assembly Instructions for PCB Camera, Multicolor
02/2007 Edition 2.5 Preparatory Steps
57
2.5 Preparatory Steps
: Open the safety hoods.
: Remove the reject bin.
: Disassemble the cover of the feeder modules.
: Undock the movable component changeover tables
: Turn the machine OFF at the main switch, isolate the machine from the mains, turn OFF the
flow of compressed air at the compressed air uni
: Push the X-gantries toward the outside of the machine so that the placement heads are readily
accessible.
2.5.1 Assembly in the Terminal Panel, Right Side
NOTE:
Ascertain you before starting assembly, what kind of clamping field is in the machine
see chapters 2.5.1, 2.5.3 and 2.5.4. 2

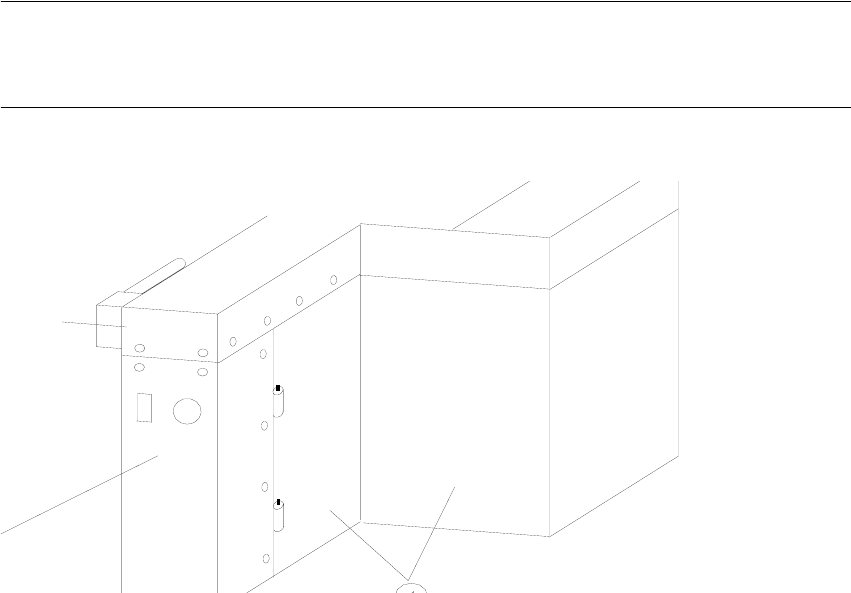

Abb. 2.5.1 Opening the Machine Frame Doors (Service Cabinets for Terminal Panel, Right Side)
Key:
1. Machine frame doors
2. Lateral protection (remains installed)
