2 Assembly Instructions for PCB Camera, Multicolor SIPLACE S-25 HM / S-27 HM 2.5 Preparatory Steps 02/2007 Edition 66 2.5.4 S-27 HM wir ing wi th new terminal block : Open the vertical ca ble duct on the righ t. : Remove…
SIPLACE S-25 HM / S-27 HM 2 Assembly Instructions for PCB Camera, Multicolor
02/2007 Edition 2.5 Preparatory Steps
65
2
2

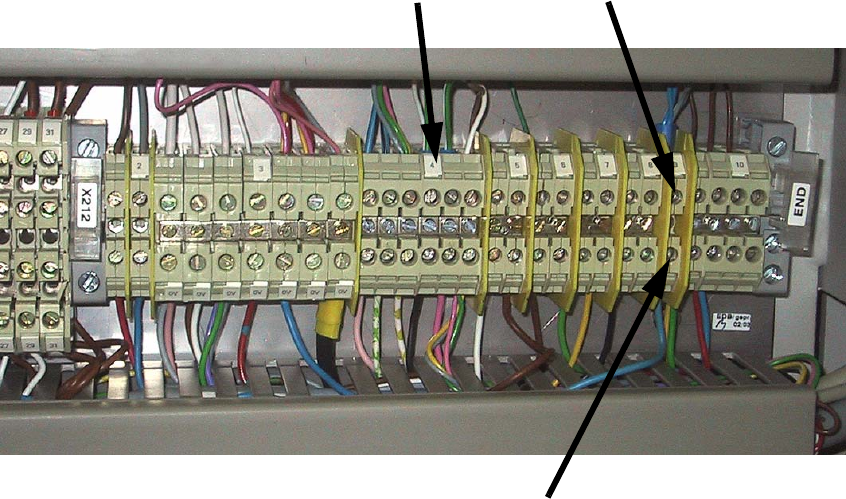

: Clamp the two combined green and white wires to X212/4 (+24V).
: Clamp the combined blue and gray wires to X212/9.
: Remove the blue wire from cable 00306880-xx from the cable duct and clamp to X212/9 using
a ferrule (+50V).
2
2
2
2
2
2
2
2
2
2
X212/9X212/4
X212/9 from cable duct
00306880-xx
2 Assembly Instructions for PCB Camera, Multicolor SIPLACE S-25 HM / S-27 HM
2.5 Preparatory Steps 02/2007 Edition
66
2.5.4 S-27 HM wiring with new terminal block
: Open the vertical cable duct on the right.
: Remove the lamp-wire connector with the white, blue-black and blue wires.
2
Fig. 2.14 - 1 Terminal block on left-hand side
2
: Clamp white wire from the lamp-wire connector to X6/6 (GND).
: Clamp blue-black wire from the lamp-wire connector to X6/5 (+24 V).
: Clamp blue wire from the lamp-wire connector to X7/1 (+50V).
2
2
2
X6/6
X6/5
X7/1
SIPLACE S-25 HM / S-27 HM 2 Assembly Instructions for PCB Camera, Multicolor
02/2007 Edition 2.5 Preparatory Steps
67
2
Fig. 2.14 - 2 Terminal block on the right-hand side
2
No additional wiring is required. The connections are prewired. 2
