2 Assembly Instructions for PCB Camera, Multicolor SIPLACE S-25 HM / S-27 HM 2.2 Installing PCB Camera Board and PC B Camera Multicolor 02/2007 Edition 72 Following the configuration of the Mu lticolor PC B camera at th …

SIPLACE S-25 HM / S-27 HM 2 Assembly Instructions for PCB Camera, Multicolor

02/2007 Edition 2.2 Installing PCB Camera Board and PCB Camera Multicolor

2.2.2 Installing the PCB Camera Multicolor

Abb. 2.2.4 PCB Camera Multicolor Assembly with Distance Plate (Spacer)

: Find out before installing the PCB camera Multicolor which PCB or substrate thickness will be

placed next. Depending on the thickness, it will or will not be necessary to place the distance

plate (spacer) from the assembly kit under each camera.

The table below is helpful during assembly process. In deciding, calculations are carried out to

ascertain which thickness range the current PCB or substrate thickness is closest to the focus.

NOTE:

At S-27 HM the distance plate is always mounted with the PCB camera Multicolor.

(Distance between surface conyeyor rail and lower surface of camera = 16 mm). 2

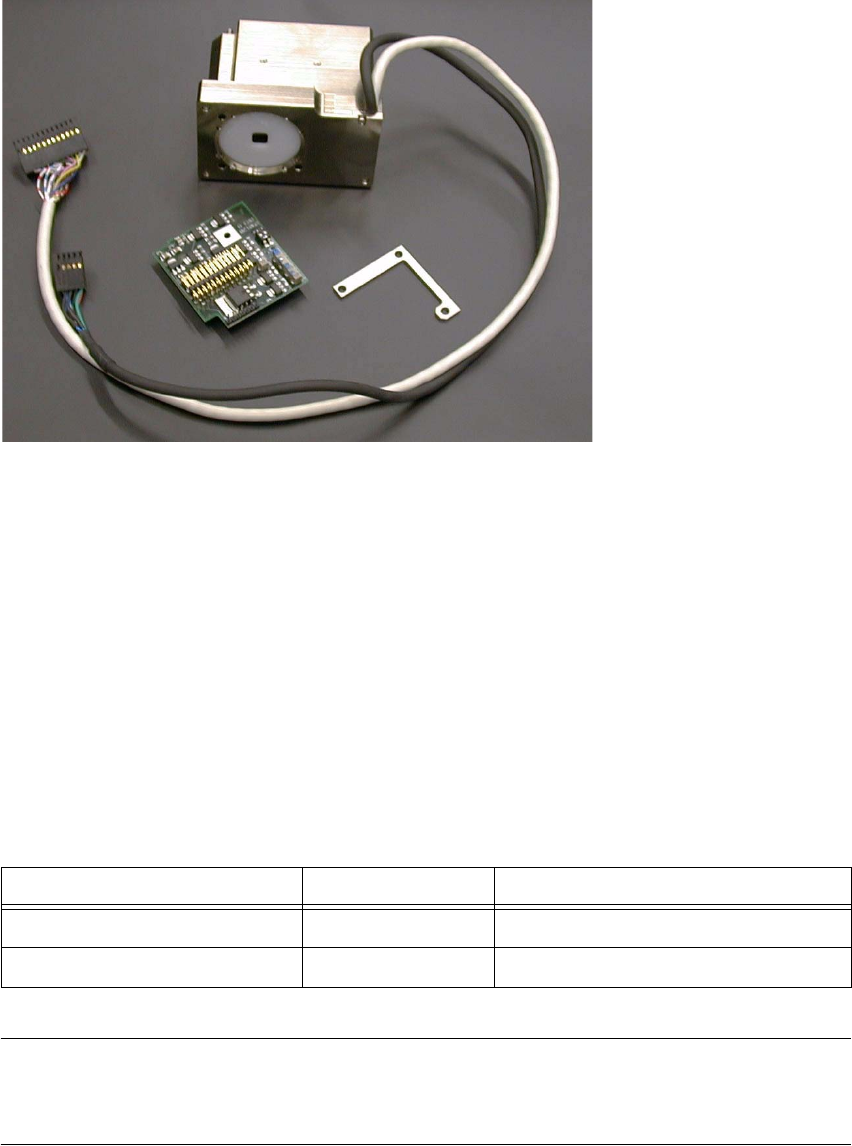

1 Distance plate (Spacer) *) *

2 PCB camera Multicolor incl. cable and connector *)

3 Fasteners for PCB camera Multicolor: 3 hex head cap screws M3 x 14, captive *)

4 "PCB camera board, modular" *)

5 Cable "illumination", camera *) -> Connection to X3 at "PCB (camera) board modular"

6 Cable "camera" *) -> Connection to X4 at "Vision board, modular"

PCB or substrate thickness Focus Install distance plate (spacer)

0.3 - 3.4 mm 1.7 mm Yes

1.5 - 4.5 mm 3.2 mm No

2 Assembly Instructions for PCB Camera, Multicolor SIPLACE S-25 HM / S-27 HM

2.2 Installing PCB Camera Board and PCB Camera Multicolor 02/2007 Edition

Following the configuration of the Multicolor PCB camera at the line computer, including descri-

bing the PCB or substrate (entry of the thickness), a message can be accessed at the line com-

puter as a check (see Abschn. 2.3.1). 2

In most cases, adequate imaging quality will still be achieved even it work is done outside the ran-

ges indicated above.

With the spacer plate removed, system fiducials can still be adequately recognized. 2

: Ascertain the PCB/substrate thickness to be processed now.

: Use the table to determine whether the distance plate is required.

If YES, place the distance plate (see Abb. 2.7.4 -> 1) from the camera assembly kit on the ca-

mera’s assembly surface in the correct rotational position (this is determined on the basis of

the holes).

: Place the PCB camera Multicolor, including the distance plate, if applicable, in the correct po-

sition on the distance bolts (HS-50) or directly on the camera holder from below (S-25 HM).

: Use the 3 captive hex head cap screws M 3 x 14 to screw the camera to the camera holder.

: Fasten the cables with the two cable ties.

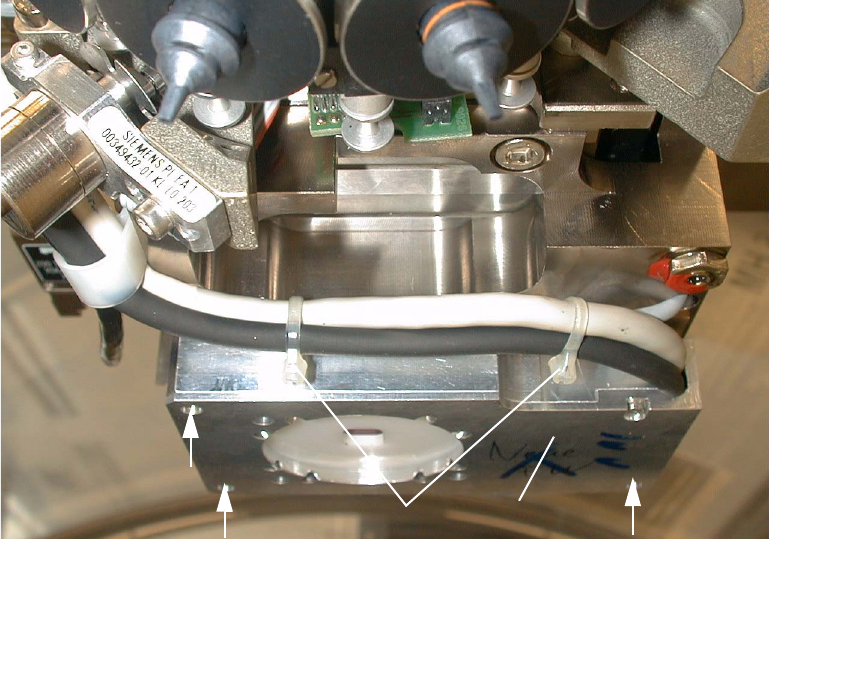

Abb. 2.2.5 Fastening the PCB Camera Multicolor (View from below, diagonally)

1 PCB camera Multicolor

2 Fasteners: 3 hex head cap screws M3 x 14 (captive)

3 2 Cable ties

SIPLACE S-25 HM / S-27 HM 2 Assembly Instructions for PCB Camera, Multicolor

02/2007 Edition 2.2 Installing PCB Camera Board and PCB Camera Multicolor

2.2.3 Installing the "PCB Camera Board, Modular" from the Assembly Kit

: Check the serial number of the PCB camera board, modular: It must correspond to the number

on the Multicolor PCB camera. Per gantry this allocation must be maintained during installa-

tion. The position of the number is shown in the following illustration.

Abb. 2.2.6 Check: Identical Serial Number on Modular PCB Camera Board and PCB Camera Multicolor

: Screw the distance holders of the assembly kit on the "vision board modular".

: Plug the "PCB camera board, modular" onto the "Vision board, modular" in the correct position,

as shown above.

Abb. 2.2.7 Installing the "PCB Camera Board, Modular" from Assembly Kit (Using HS-50 as an Example)

: Fix the PCB board modular.

1 Head PCB HS-50 assembly (modular)

2 PCB camera board, modular, manufacturer = Sticksel

3 Position of the recess

20002
