INFINITY TECHNI CAL REFEREN CE DRI VES AND SEN SORS Chapter Issu e 4 Aug 01 Infinity Dual Imag e Manual 1.13 F our Channel Comms Card The communication s card is f itted to slot X7 of the machine pc . It is used to inter…
1.12 Infinity Dual Image Manual Chapter Issue 4 Aug 01
INFINITY
TECHNICAL REFERENCE
DRIVES AND SENSORS
Stepper Drive Card The link settings for the Dual Image stepper drive card are shown below:
Figure 1-8 Dual StepperDrive PCB
INFINITY
TECHNICAL REFERENCE
DRIVES AND SENSORS
Chapter Issue 4 Aug 01 Infinity Dual Image Manual 1.13
Four Channel
Comms Card
The communications card is fitted to slot X7 of the machine pc. It is used to
interface with external communications devices such as the remote bar code
reader, infra-red link and the stencil bar code reader. This card uses a shared
interrupt (IRQ) level for the available options. The correct DIP switch and
jumper link settings are shown below.
Figure 1-9 4 Channel RS232 Comms Card Set Up
3SK27 3PL27
P1 - 3PL19 - Stencil
Barcode Reader - COM5
P2 - 3PL20 - Remote
Barcode Reader -COM6
P3 - 3PL20 -
Spare -COM7
P4 - 3PL21 -
Spare -COM8
12
3
4
56
7
ON
SPEED
A3
A4
A5
A6
A7
A8
S2
12
3
4
56
7
ON
MODE0
MODE1
A4
A5
A6
A7
A8
S1
3 4 5 6 7 9 10 11 12 15
JP1
CH#1
3 4 5 6 7 9 10 11 12 15
JP2
CH#2
3 4 5 6 7 9 10 11 12 15
JP3
CH#3
3 4 5 6 7 9 10 11 12 15
JP4
CH#4
IRQ
BASE ADDRESS
VECTOR ADDRESS
JP15
123
MODE0: ON-Share IRQ
OFF-Indep.IRQ
MODE1: ON-Standard
OFF-Enhance
SPEED: ON-8x
OFF-1x
1.14 Infinity Dual Image Manual Chapter Issue 4 Aug 01
INFINITY
TECHNICAL REFERENCE
PNEUMATIC OVERVIEW
PNEUMATIC OVERVIEW

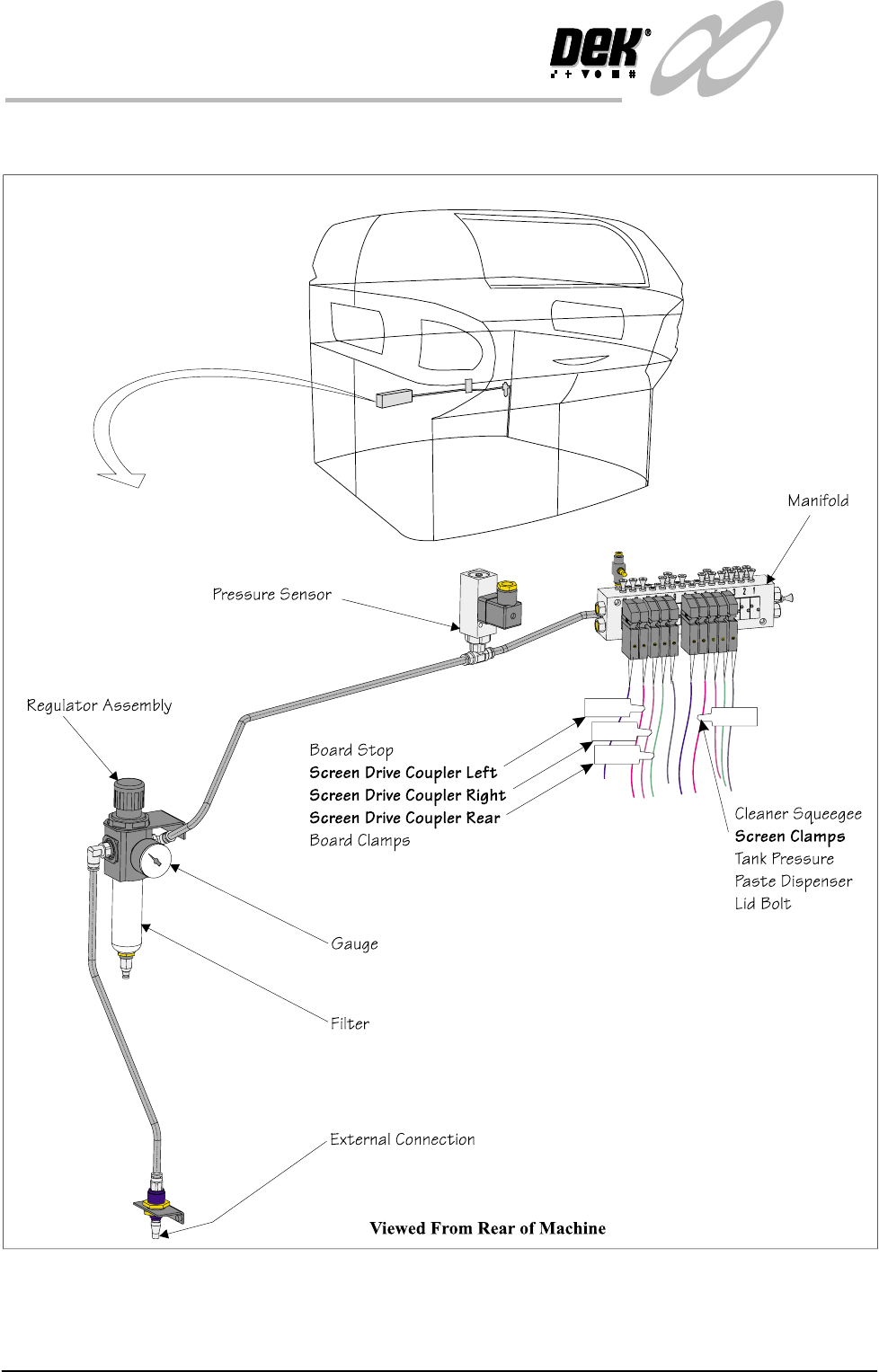

Figure 1-10 Pneumatics
