INFINITY
TECHNICAL REFERENCE
ADJUSTMENTS AND SETTINGS
Chapter Issue 4 Aug 01 Infinity Dual Image Manual 1.27
Creating a Product
File
On the ready page the current product is displayed in the status menu (shown as
Default in the figure). To access the maintenance page to set up dual image select
the More button on the soft key bar.
Figure 1-20 Selecting the More Button on the Ready Page
1. Select Maint.
2. Select Set Prefs.
NOTE
When first setting up dual image, the soft key F7 in the above figure is blank,
this changes to Swap Product when dual image is enabled.
1.28 Infinity Dual Image Manual Chapter Issue 4 Aug 01
INFINITY
TECHNICAL REFERENCE
ADJUSTMENTS AND SETTINGS
3. Scroll down the menu for the parameter - Number of Products. Using the
incr. or decr. softkeys, set this parameter to 2.
Figure 1-21 Selecting the Number of Products Option
As the machine is going to be run in Dual image mode a configuration error
prompt message is displayed to warn the user that the screen needs to be of the
correct type.
Figure 1-22 Screen Load Configuration Prompt
INFINITY
TECHNICAL REFERENCE
ADJUSTMENTS AND SETTINGS
Chapter Issue 4 Aug 01 Infinity Dual Image Manual 1.29
4. Select Confirm to continue.
5. Scroll down the page to Screen Locate Distance, this is the distance from
the leading edge of the screen to the centre of the slot in the runner adaptor
(or bracket - see Adapting a 29 inch screen). This distance is defaulted to 91.5
mm.
6. Select Change Screen and load the correct screen. If the actuators do not
engage the slot cleanly the screen locate distance parameter is used to make
finite adjustments. A message is displayed in the operator prompt panel as
shown in the figure. The sensor associated with this measurement is the
Screen at Rear, a long throw opto through beam type

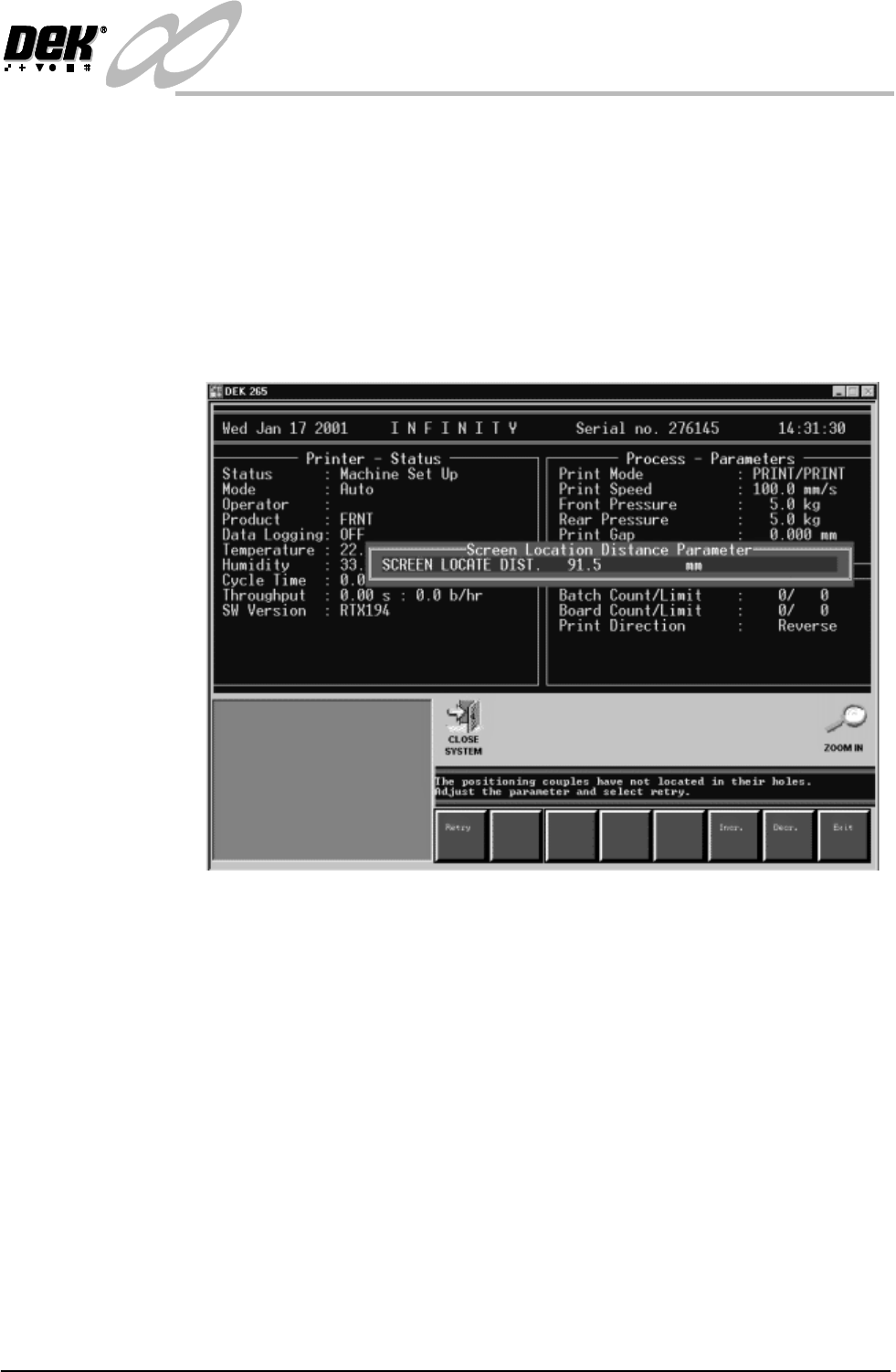

Figure 1-23 Adjusting Screen Locate Distance
