INFINITY TECHNI CAL REFEREN CE DIAGN OSTICS Chapter Issu e 4 Aug 01 Infinity Dual Imag e Manual 1.39 T oggle Screen Cla mps Selecting this diagnostic function alternately ener gizes and de-energizes the screen clamps, di…
1.38 Infinity Dual Image Manual Chapter Issue 4 Aug 01
INFINITY
TECHNICAL REFERENCE
DIAGNOSTICS
DIAGNOSTICS
Screen Change Selecting this diagnostics module opens the following window:
The menu bar changes displaying the following:
Next / Previous keys move the highlight bar up and down the list of selectable
diagnostic functions.
Run Diagnost activates the diagnostic function, as selected by the highlight bar.
Exit returns operation to the module diagnostics page.
Home Screen Motor Selecting this diagnostic function drives the screen motor to its home position,
as set by its home sensor.
Move Screen Motor
Using Jog Buttons
Selecting this diagnostic function drives the screen motor using the jog buttons.
The right jog button drives the screen motor forward and the left jog button
drives it to the rear, stopping immediately the button is released.
Toggle Coupling
Right
Selecting this diagnostic function alternately energizes and de-energizes the
drive coupling right solenoid, displaying On when energized and Off when de-
energized.
Toggle Drive
Coupling
Selecting this diagnostic function alternately energizes and de-energizes the
drive coupling left solenoid, displaying On when energized and Off when de-
energized.
Run
Diagnost
Next Previous Exit
INFINITY
TECHNICAL REFERENCE
DIAGNOSTICS
Chapter Issue 4 Aug 01 Infinity Dual Image Manual 1.39
Toggle Screen
Clamps
Selecting this diagnostic function alternately energizes and de-energizes the
screen clamps, displaying On when energized and Off when de-energised.
Load Screen Selecting this diagnostic function performs a load screen cycle. During the load
screen cycle, after the screen has cleared the rear sensor, if a screen bar code
reader is fitted, the screen bar code reader is triggered and the resultant barcode
is displayed in the message box on the monitor.
NOTE
If a barcode reader is fitted and the read barcode function is not displayed, check
that the screen barcode hardware has been enabled in set preferences.
Unload Screen Selecting this diagnostic function performs a unload screen cycle.
Drive Coupling
Extended
This diagnostic function monitors and continuously displays the status of the
drive couplings.
Front Screen Sensor This diagnostic function continuously displays the status of the front screen
sensor.
Centre Screen
Sensor
This diagnostic function continuously displays the status of the centre screen
sensor.
Rear Screen Sensor This diagnostic function continuously displays the status of the rear screen
sensor.
Exit Screen Sensor This diagnostic function continuously displays the status of the screen safety
rear sensor.
Safety Screen
Sensor
This diagnostic function continuously displays the status of the screen safety
front sensor.
1.40 Infinity Dual Image Manual Chapter Issue 4 Aug 01
INFINITY
TECHNICAL REFERENCE
DIAGNOSTICS

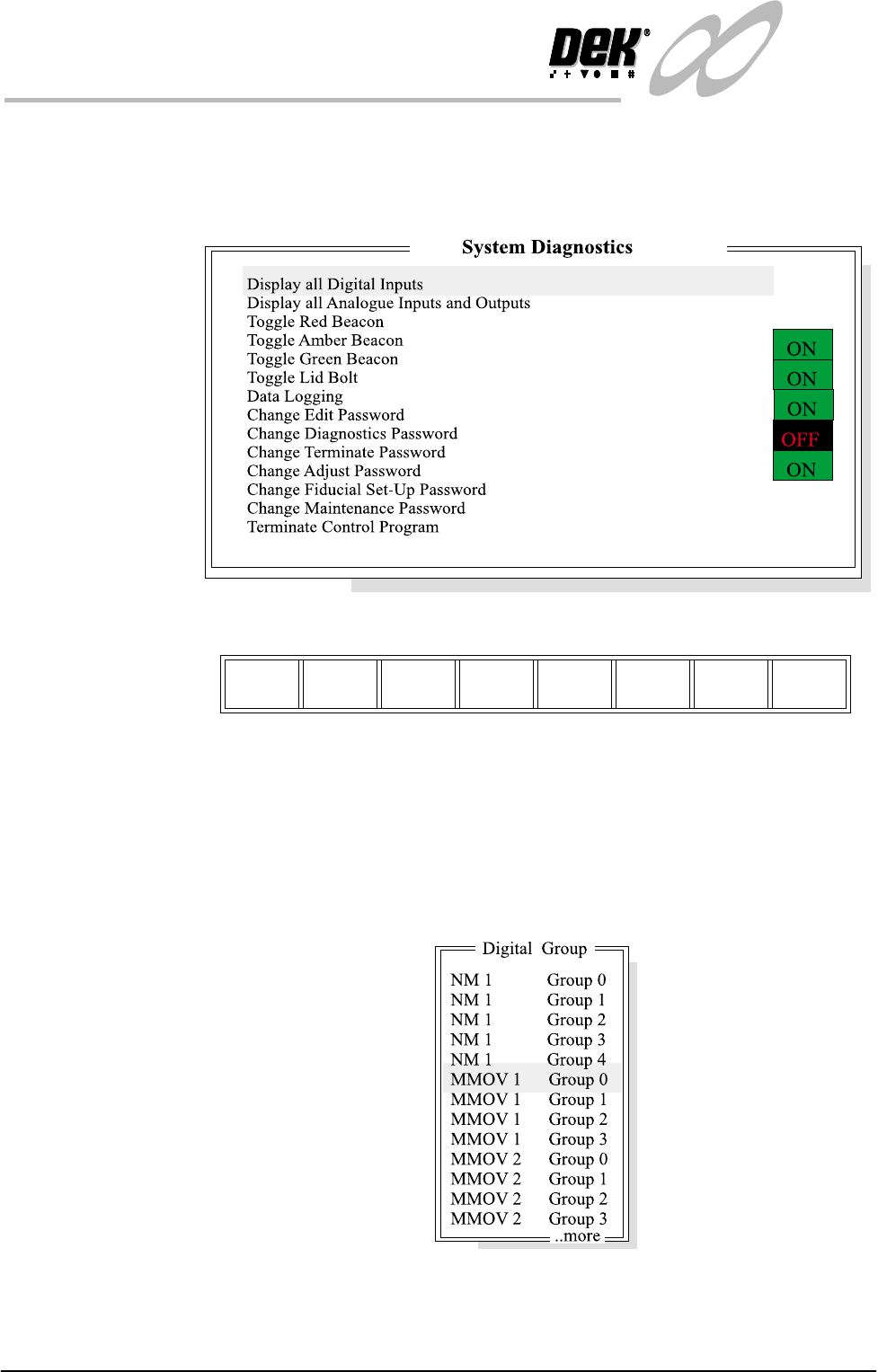

System
Digital Group This diagnostic is provided to monitor the system input and output states.
Selecting this diagnostic opens the following window:
The menu bar changes displaying the following:
Next / Previous keys move the highlight bar up and down the list of selectable
diagnostic functions.
Run Diagnost activates the diagnostic function, as selected by the highlight bar.
Exit returns operation to the module diagnostics page.
Display all Digital
Inputs.
Selecting this diagnostic function opens the window:
Run
Diagnost
Next Previous Exit
