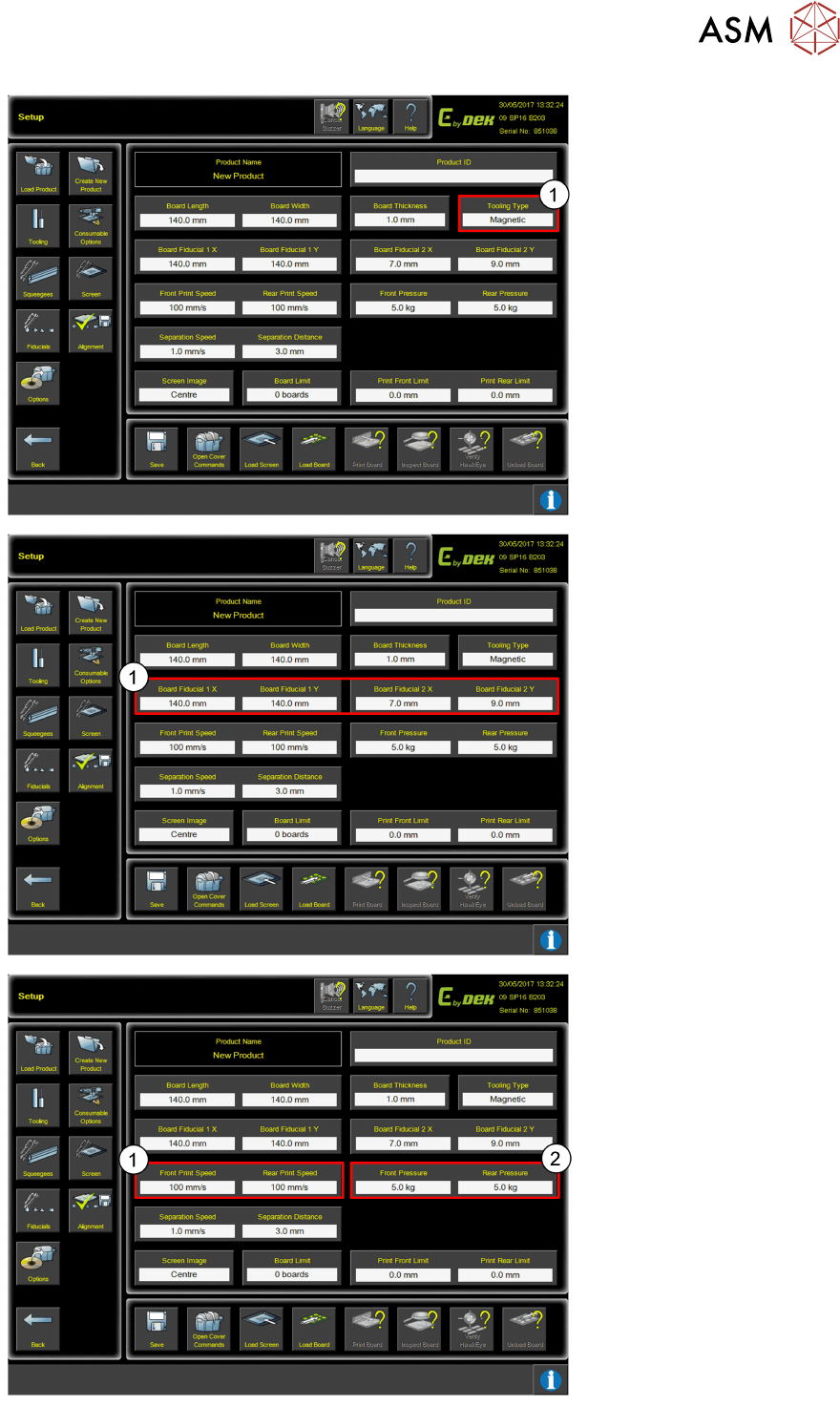

3 Create from Default or copy from existing
3.1 Creating a new product file
Programming Training E by DEK 12/2017 15
1. Select which type of
Tooling is being used.
1. Add the measurements
of the location for the
Board FIducials.
1. Set the Print Speed.
2. Set the Squeegee
Pressure.

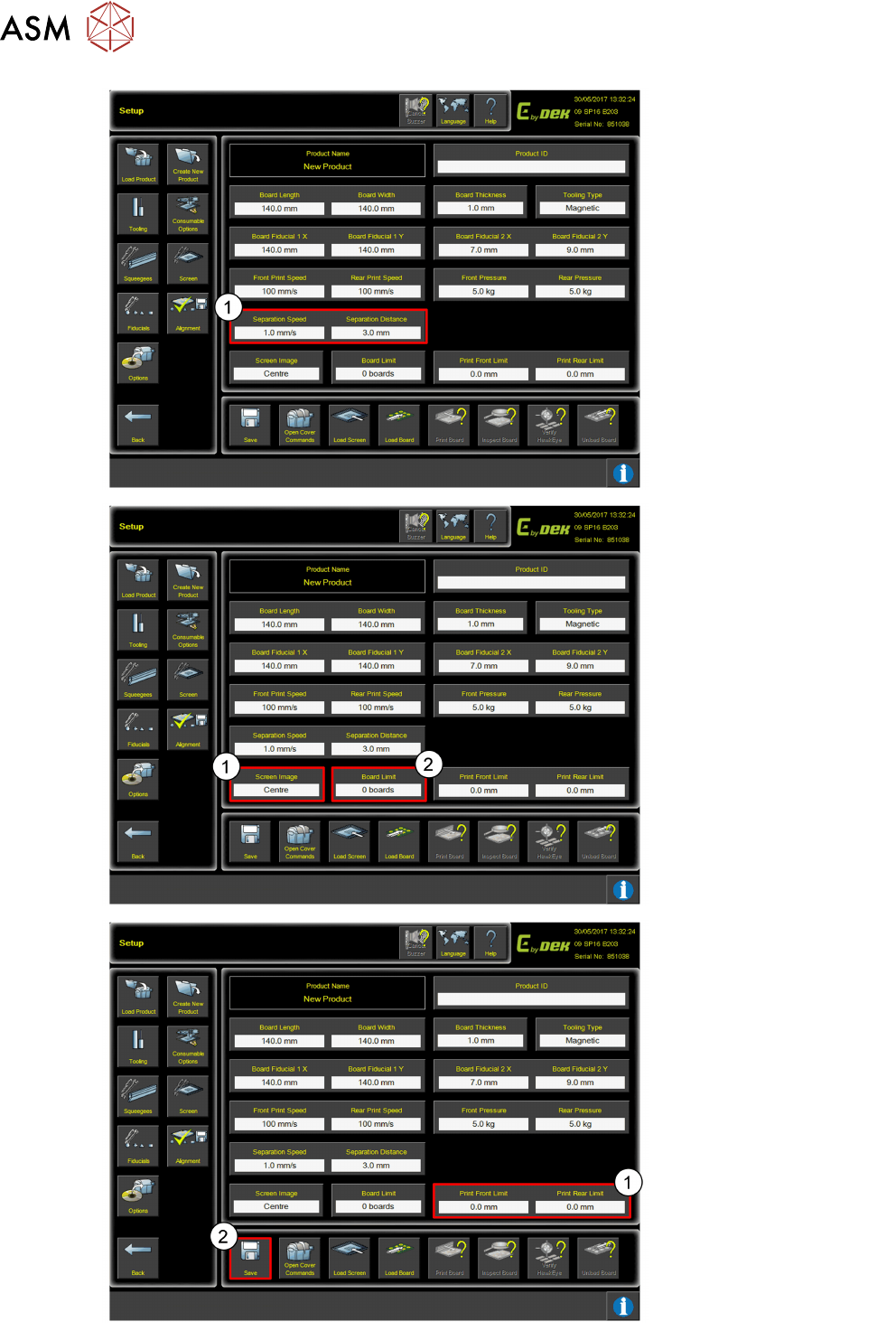

3 Create from Default or copy from existing
3.1 Creating a new product file
16 Programming Training E by DEK 12/2017
1. Set Separation Speed
and Separation
Distance.
1. Select Screen Image
location settings.
2. Add Board Limit.
1. Set Print Limits.
2. Click Save when
complete.
3 Create from Default or copy from existing
3.2 Loading a saved product file
Programming Training E by DEK 12/2017 17
3.2 Loading a saved product file
1. To load a product file,
select Load Product.
1. Select which Product file
you wish to load.
2. Click Load.
