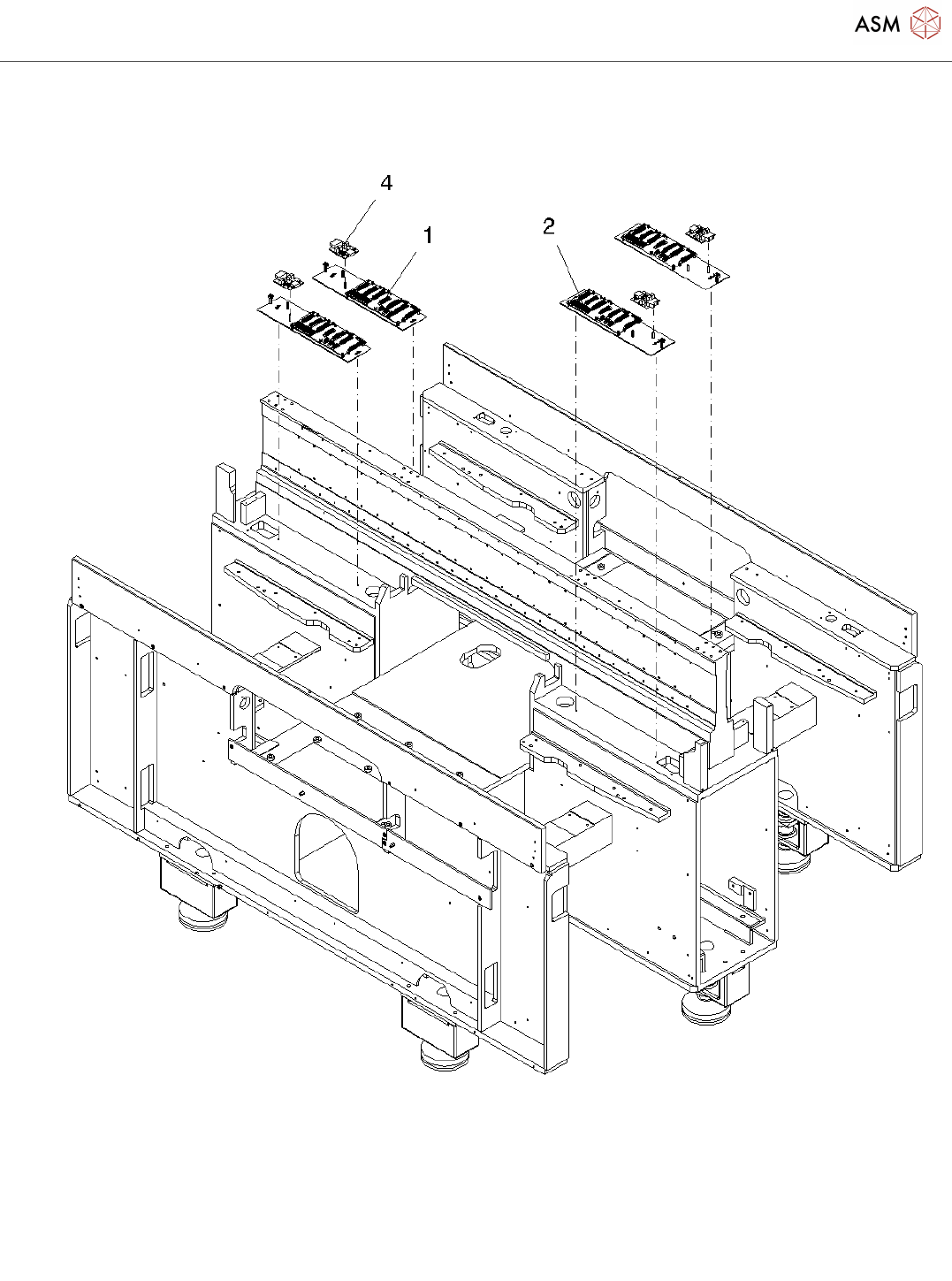

Basic module gantry wiring
Page 1 / 3 23.11.2021

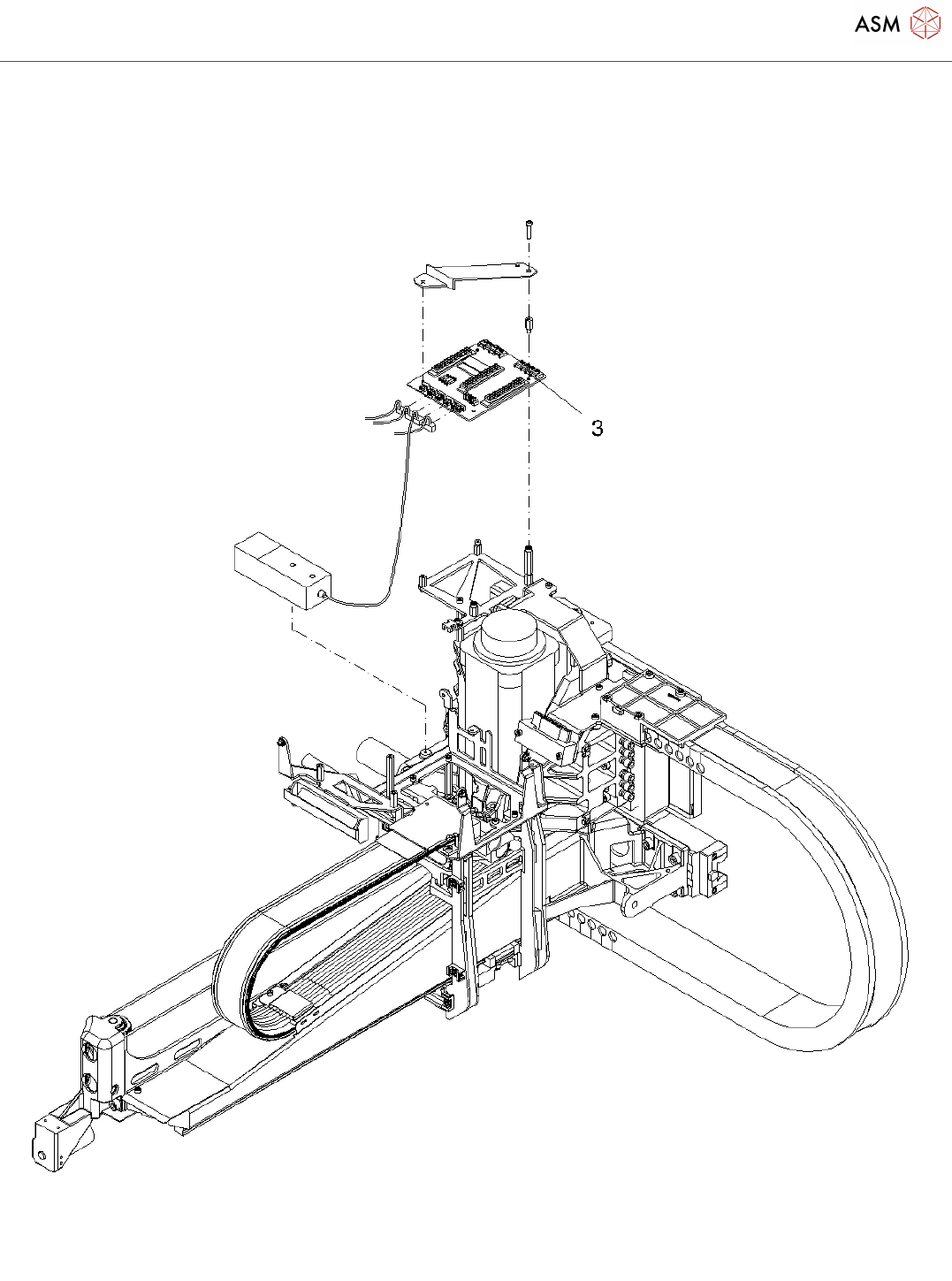

Basic module gantry wiring
Page 2 / 3 23.11.2021
Basic module gantry wiring
Page 3 / 3 23.11.2021
Pos. Item no. Description Part marking
03040426-01 BASIC MODULE GANTRY WIRING/HS-
D
1 03040827-01 TRAILING DISTRIBUTOR GANTRY 1
A. 3 COMPL
SPARE PART
2 03040828-01 TRAILING DISTRIBUTOR GANTRY 2
A. 4 COMPL
SPARE PART
3 03040826-02 GANTRY DISTRIBUTOR COMPL. SPARE PART
4 03010670-02 HOTLINK FILTER SPARE PART
