1004-003

29

Key No. PART No. PART NAME Q’ty REMARKS New Code

NOTE

S-2

S-2 list-1

必ずバージョンを確認してから、立体分解図の書類番号を選択して下さい。（

Fig. S

参照）

Make sure to conﬁrm the version No. and select the Document No. for the Exploded View. (Refer to Fig. S).

101 08771100 ASSY,GEAR(WORM) 1 877S--020-101 08771100

101 -03 6301736938 COLLAR(PULLEY) 1 216A1654

101 -04 6301265971 COLLAR(BEARING) 1 216A1147

101 -07 6301254692 PULLEY,TIMING 1 223Q0562

101 -08 6301268248 SET SCREW(SET SCREW) 3 M2X3 SET 221C0100

101 -09 6301736945 COVER(SHAFT) 1 211AD861

102 08771101 ASSY,GEAR 1 877S--020-102 08771101

102 -03 6301736938 COLLAR(PULLEY) 1 216A1654

102 -04 6301265971 COLLAR(BEARING) 1 216A1147

102 -07 6301254692 PULLEY,TIMING 1 223Q0562

102 -08 6301268248 SET SCREW(SET SCREW) 3 M2X3 SET 221C0100

102 -09 6301736945 COVER(SHAFT) 1 211AD861

103 6301584263 ASSY,GEAR 2 877S--020-103 023E0024

104 08771102 ASSY,SPROCKET 1 877S--020-104 08771102

105 08771103 ASSY,SPROCKET 1 877S--020-105 08771103

106 6301264905 HOLDER 1 877S--020-106 216B1404

107 6301264912 PIN,LOCATE 1 877S--020-107 216E1480

108 6301706306 COLLAR(SPROCKET) 1

877S--020-1081

216A1632

108 6301706320 COLLAR(SPROCKET) 1

877S--020-1082

216A1634

108 6301706344 COLLAR(SPROCKET) 1

877S--020-1083

216A1636

109 6301732718 COVER(WORM-A) 1 877S--020-109 211AD788

110 6301732725 COVER(WORM-B) 1 877S--020-110 211AD789

111 6301732732 COVER(WORM-C) 1 877S--020-111 211AD790

112 6301732749 COVER(WORM-D) 1 877S--020-112 211AD791

113 6301653884 CAP(CAP) 1 877S--020-113 217A0154

114 6301733265 COVER(SENSOR) 1 877S--020-114 211AD803

115 6301735580 COVER 1 877S--020-115 211AD849

121 6301254708 BELT,TIMING 2 877S--020-121 223L0270

122 6301265988 PIN,LOCATE 1 877S--020-122 216E1485

123 6300083804 WASHER 3 877S--020-123 221H0017

124 6300083057 BOLT,HEX-SCT 7 M2X4 877S--020-124 221A0121

126 6300007510 BOLT,HEX-SCT 4 M3X8 877S--020-126 221A0006

127 6300007534 BOLT,HEX-SCT 4 M3X12 877S--020-127 221A0008

129 4111412806 WASHER SPR 3 8 877S--020-129 221H0281

130 4111413902 WASHER V 3X7X0.5 8 877S--020-130 221H0312

131 6301688923 ROHS:BOLT,HEX-SCT 2 877S--020-131 221AA083

139 08771204 ASSY,MOTOR,AC-SERVO 2 M01,M02

877S--020-509 08771204

145 6301733258 COVER(MOTOR) 1 877S--020-075 211AD802

GD-18083C

0901-001

30

テープフィーダ

T

APE FEEDER

GD-18083C GD-18083C

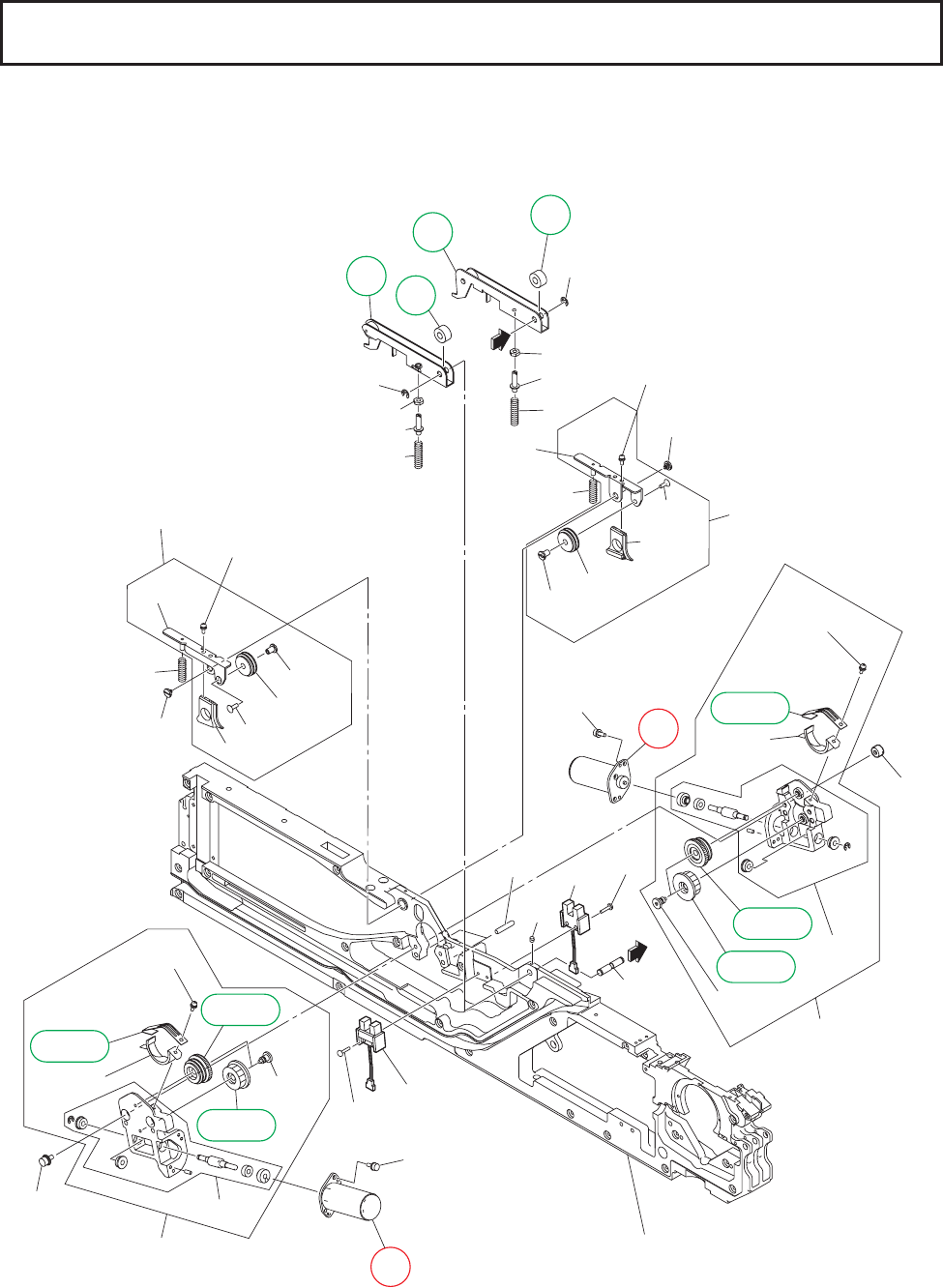

Fig. S-3

カバーテープ巻取り部

Cover Tape Winding Section

221

202-01

221

245

202-05

218

202-03

215

216

232

220

219

See Fig.S-1

Key No.1

219

220

232

201-04

242

238

245

201-05

201-03

233

214

216

202-02

242

228

234

236

.

228

234

236

.

229

235

237

.

C

224

210

201-06

201-09

202-09

202

202-04

202-06

201-01

201

201-02

注)

Key No.201-02,-03,-04,202-02,-03,-04,207-02,208-02,211,214,215,216,221(○印)

は保守品となっております。交換時期については取扱説明書を参照、もしくは

当社サービス員にご相談下さい。

Notice) The Key No. 201-02, -03, -04, 202-02, -03, -04, 207-02, 208-02, 211, 214, 215, 216

and 211 (with a circle) are maintenance components.

For replacement timing, refer to the Instruction Manual or consult our service

personnel.

227

213

208-01

208-03

208-04

227

213

207-03

208-06

208-05

208-02

207-02

207-04

207-05

207-01

207-06

207

208

S-3 illust-1

必ずバージョンを確認してから、立体分解図の書類番号を選択して下さい。（

Fig. S

参照）

Make sure to conﬁrm the version No. and select the Document No. for the Exploded View. (Refer to Fig. S).

1004-003

31

Key No. PART No. PART NAME Q’ty REMARKS New Code

NOTE

S-3

S-3 list-1

必ずバージョンを確認してから、立体分解図の書類番号を選択して下さい。（

Fig. S

参照）

Make sure to conﬁrm the version No. and select the Document No. for the Exploded View. (Refer to Fig. S).

201 08771200 ASSY,GEAR 1 877S--020-201 08771200

201 -01 08771201 ASSY,BASE(L) 1 08771201

201 -02 6301749013 GEAR(HIRA-2) 1 223E0516

201 -03 6301551449 GEAR 1 223E0458

201 -04 6301622576 COVER(MAKITORI-2) 1 211AC677

201 -05 6301347011 PIN,LOCATE(SITEN-1) 2 216E1539

201 -06 6301690292 MACHINE SCREW 1 221DA060

201 -09 6301492612 COVER 1 211AB091

202 08771202 ASSY,GEAR 1 877S--020-202 08771202

202 -01 08771203 ASSY,BASE(R) 1 08771203

202 -02 6301749013 GEAR(HIRA-2) 1 223E0516

202 -03 6301551449 GEAR 1 223E0458

202 -04 6301622576 COVER(MAKITORI-2) 1 211AC677

202 -05 6301347011 PIN,LOCATE(SITEN-1) 2 216E1539

202 -06 6301690292 MACHINE SCREW 1 221DA060

202 -09 6301492605 COVER 1 211AB090

207 6301664101 ASSY,LEVER(KAIJO-L) 1 877S--020-207 016S1021

207 -01 6301663005 ASSY,LEVER(KAIJO-L) 1 016S1019

207 -02 6301656298 GEAR(HIRA-1) 1 223E0499

207 -03 6301656281 PIN,LOCATE(SITENN-1) 1 216E1731

207 -04 6301656359 BLOCK(L) 1 211G5776

207 -05 4110335700 SCR FLT 2.5X6 1 221D0261

207 -06 6301689715 MACHINE SCREW 2 221DA008

208 6301664095 ASSY,LEVER(KAIJO-R) 1 877S--020-208 016S1020

208 -01 6301662992 ASSY,LEVER(KAIJO-R) 1 016S1018

208 -02 6301656298 GEAR(HIRA-1) 1 223E0499

208 -03 6301656281 PIN,LOCATE(SITENN-1) 1 216E1731

208 -04 6301656366 BLOCK(R) 1 211G5777

208 -05 4110335700 SCR FLT 2.5X6 1 221D0261

208 -06 6301689715 MACHINE SCREW 2 221DA008

210 4111410000 NUT HEX 3 2 877S--020-210 221F0100

213 6301266374 SPRING,COMP 2 877S--020-213 222M1310

214 6301608372 ASSY,LEVER(MAKITORI-L) 1 877S--020-214 016S0964

215 6301608389 ASSY,LEVER(MAKITORI-R) 1 877S--020-215 016S0965

216 6301266619 ROLLER(A) 2 877S--020-216 213C0207

218 6301266596 PIN,GUIDE 2 877S--020-218 216F0884

219 6301266381 SPRING,COMP 2 877S--020-219 222M1311

220 6301266602 PIN,GUIDE(BANE) 2 877S--020-220 216F0885

221 6301267715 MOTOR,DC 2 M91,M92

877S--020-221 4M130018

224 6301265988 PIN,LOCATE 2 877S--020-224 216E1485

227 6301656311 PIN,LOCATE(SITEN-2) 2 877S--020-227 216E1732

228 6300008494 BOLT,HEX-SCT 4 M2.5X6 877S--020-228 221A0104

229 6300007541 BOLT,HEX-SCT 2 M3X14 877S--020-229 221A0009

232 4110160203 RING E 2.5 2 877S--020-232 221K0114
