2 Brief Description
2.1 Product Description
Montageanleitung / Assembly Instructions SIPLACE TX-Serie Basic Pack Vacuum Tooling 07/2017 49
2 Brief Description
2.1 Product Description
SIPLACE TX machines from Serial No. TA001 can be retrofitted with a customer-specific Basic
Pack Vacuum Tooling TX.
The Basic Pack Vacuum Tooling TX is a prerequisite for the use of the ACT vacuum tooling.

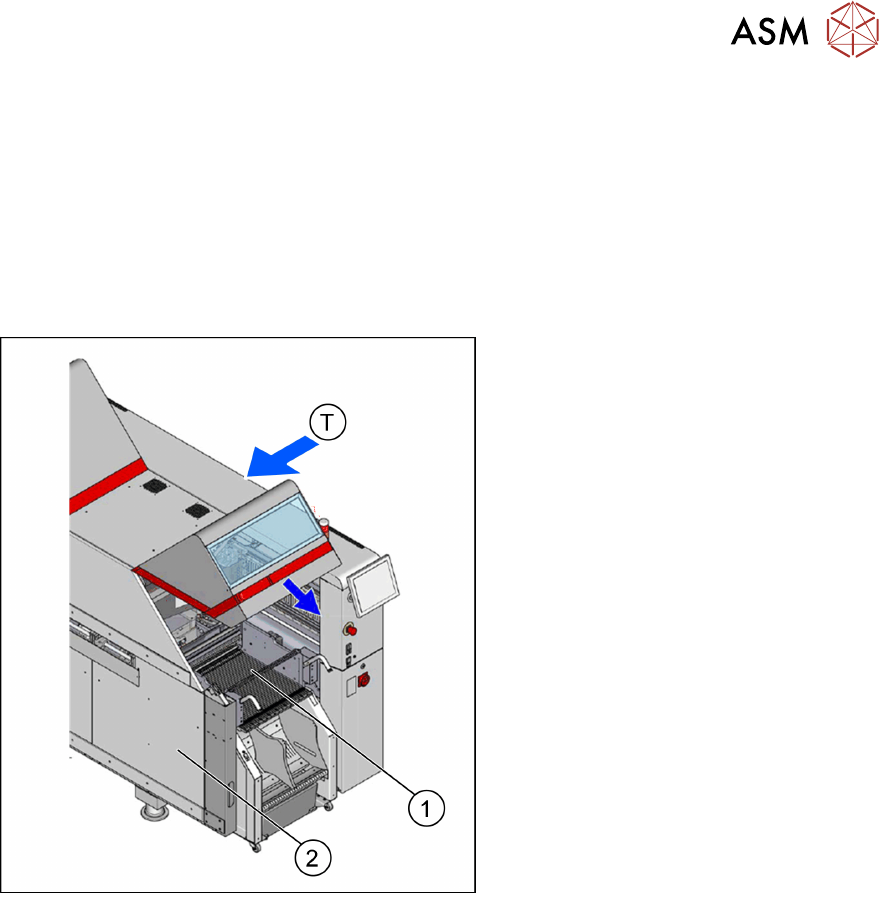

Mounting Position Basic Pack Vakuum Tooling TX
1.
2.
T
Location 2
Mounting position behind the cover and
below the conveyor unit
Transport direction
2.2 Prerequisites
The following prerequisites are required for the use of an ACT vacuum tooling:
[03149194-xx] Basic Pack Vacuum Tooling TX
[03150062-xx] Screw joint transport stabilization
[03153003-xx] Transport reinforcement TXmicron
[03155026-xx] Optional lifting table tooling for TXmicron 15µm
2 Brief Description
2.3 Scope of Delivery
50 Montageanleitung / Assembly Instructions SIPLACE TX-Serie Basic Pack Vacuum Tooling 07/2017
2.3 Scope of Delivery
Basic Pack Vacuum Tooling TX [03149194-xx]
Article number: 00588121
Quant-
ity
Designation Item no.
1 Valve unit cpl. 03138689-xx
1 Plate f. switch cpl. 03147483-xx
1 Slide plate 03139299-xx
1 Vacuum switchVS-V-D-PNP 03047841-xx
1 Cable: Vacuum_tooling 03139108-xx
1 Cable: Vacuum_tooling sensor 03139109-xx
1 Hose set valve unit TXm VacTool 03153346-xx
1 TX-Vac. tooling cover 03149358-xx
Overview of Parts
Vacuum unit
Maintenance unit
Compressed air supply - maintenance unit
2 Brief Description
2.3 Scope of Delivery
Montageanleitung / Assembly Instructions SIPLACE TX-Serie Basic Pack Vacuum Tooling 07/2017 51
Vacuum switch + plate
PUN 10 – 70 mm
PUN 10 – 2800 mm
PUN 8 – 2800 mm
PUN 6 – 300 mm
PUN 6 – 800 mm
