3 Installation
3.2 Assembly
56 Montageanleitung / Assembly Instructions SIPLACE TX-Serie Basic Pack Vacuum Tooling 07/2017
► Fit the corner cover together with the vacuum
switch support!
The screw is behind the plate (2). Tighten the
screw of the corner cover via the access to the
screw (1).
► Remove the conveyor cover.
► Pull the [03139108-04] cable through the side
panel into the machine and through the opening
in the machine base (1) to below the conveyor.
► Pull through the two tied PUN 8 - 2800 mm pneu-
matic hoses (1) through the machine to the open-
ing at location 1 for the feeder location.
► Then pull through the hoses and cables to the va-
cuum tooling cover.
3 Installation
3.3 Final Work
Montageanleitung / Assembly Instructions SIPLACE TX-Serie Basic Pack Vacuum Tooling 07/2017 57
► Fix both connectors from below to the vacuum
tooling cover [03149358-xx] (1).
► Connect both vacuum hoses (2) from below to
the vacuum tooling cover.
Observe the green marking for lane 1 and the
blue marking for lane 2!
► Fit the vacuum tooling cover in the output area of
the conveyor.
► Connect the vacuum toolings from above.
► Dismantle both cover plates via the conveyor
controls.

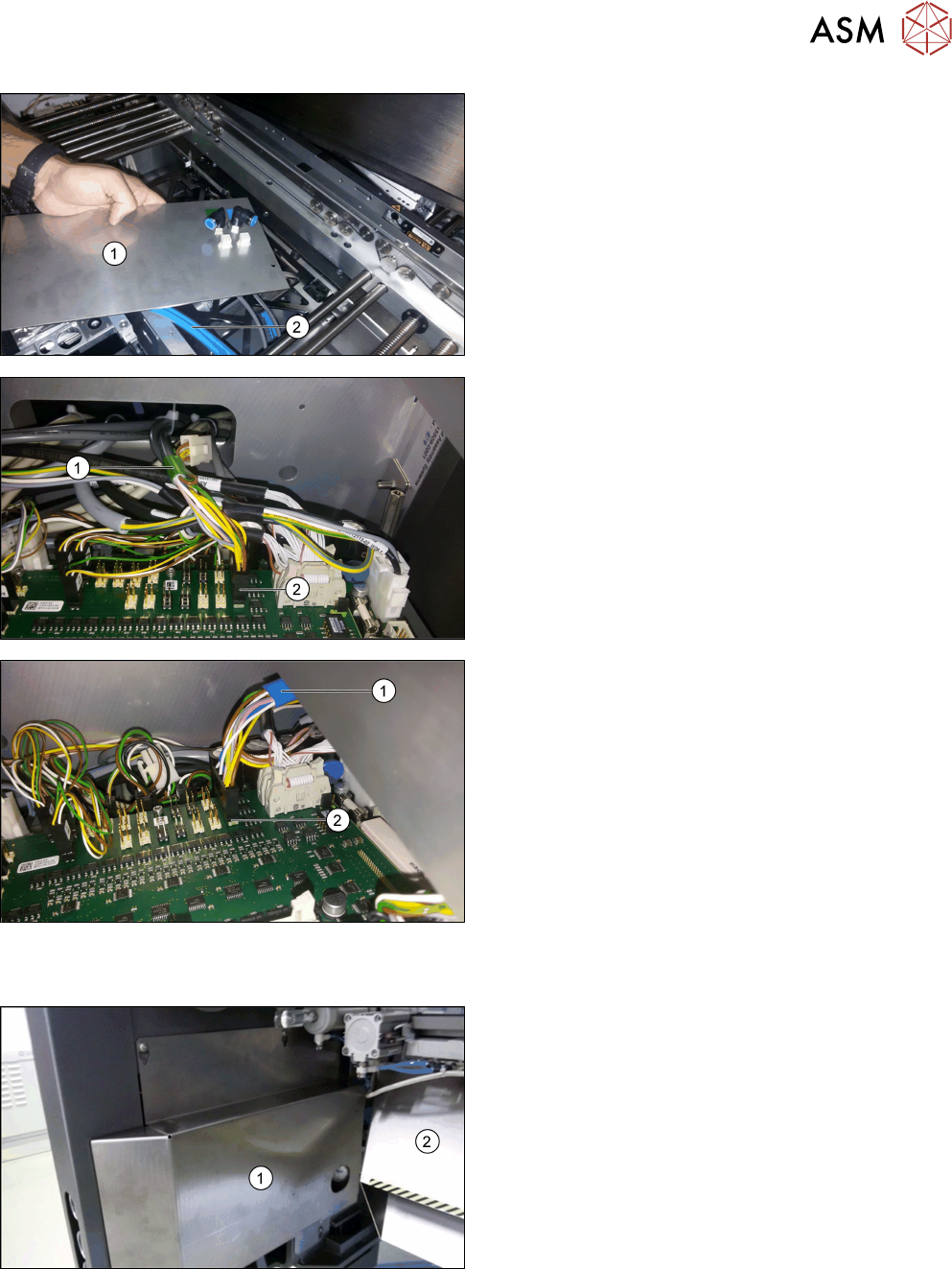

► Cable connection to the conveyor control lane 1
(green marking (1)):
Connect the [03139108-04] cable to the X34.A1
connector (2) at TSPcontrol board Lane 1 - X34.
► Cable connection to the conveyor control lane 2
(blue marking (1)):
Connect the [03139108-04] cable to the X34.A2
connector (2) at TSPcontrol board Lane 2 - X34.
3.3 Final Work
► Refit all covers in the conveyor area.
► Fit the new slide plate (1) and the waste tape
chute (2).
3 Installation
3.3 Final Work
58 Montageanleitung / Assembly Instructions SIPLACE TX-Serie Basic Pack Vacuum Tooling 07/2017
► Fit the cover plate (1) at the machine base.
NOTICE
Input pressure manometer
Set the manometer of the maintenance unit to an input pressure of 3.5 bar (max. permiss-
ible are 4.2 bar).

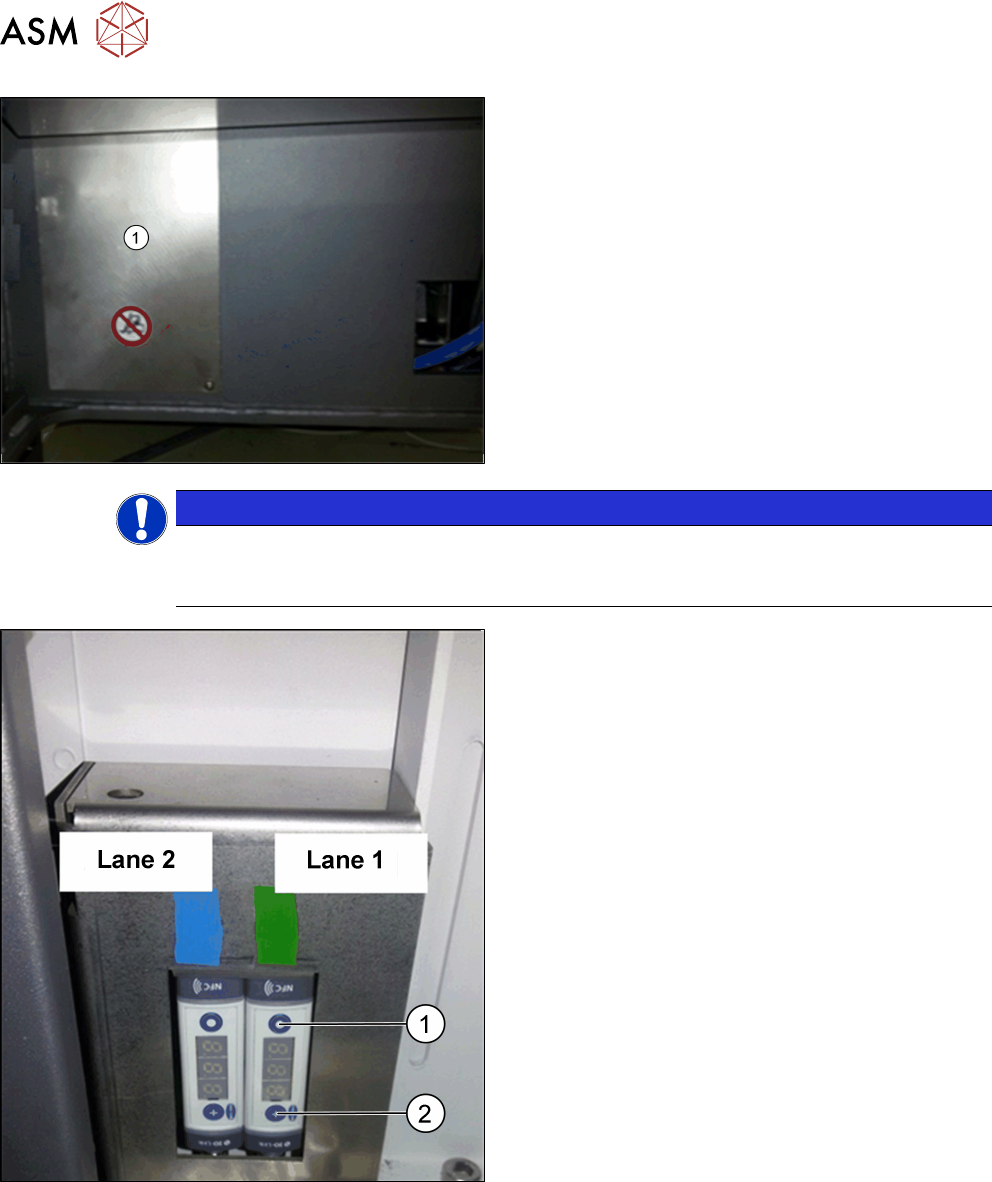

► Setting of the vacuum switches: At a vacuum of
0.1 bar (100 mbar) with a hysteresis of 0.05 bar
(50 mbar), the lifting table should sink.
At 0.45 bar (450 mbar) with a hysteresis of 0.05
bar (50 mbar), the placement should start.
► Perform the setting with the MODE button (1) and
SET button (2); please refer to the enclosed
Schmalz instructions for the vacuum switch
[30.30.01.00997/1 - 04.2016].
