1.4 Loading W8, W12 mm Feeders

1.4.1 Loading Procedures

1. Unlock the tape leaf by moving the tape leaf lock in the direction of the arrow.

When finished, raise up the tape leaf in the direction of the arrow as shown.

Opening the Tape Leaf

2. Set the parts reel in the holder. When loading, check that the holes (feeding holes)

in the tape are on the left side as shown.

Setting the Parts Reel (7 inch holder)

Parts tape

Holder

Parts reel

Feed hole

CP6M8005

Tape leaf

Tape leaf lock

CP6M8004

Part 8 Chapter 1 WC Feeders

Edition 1.0 8-1-4 CP-6 Series Mechanical Reference

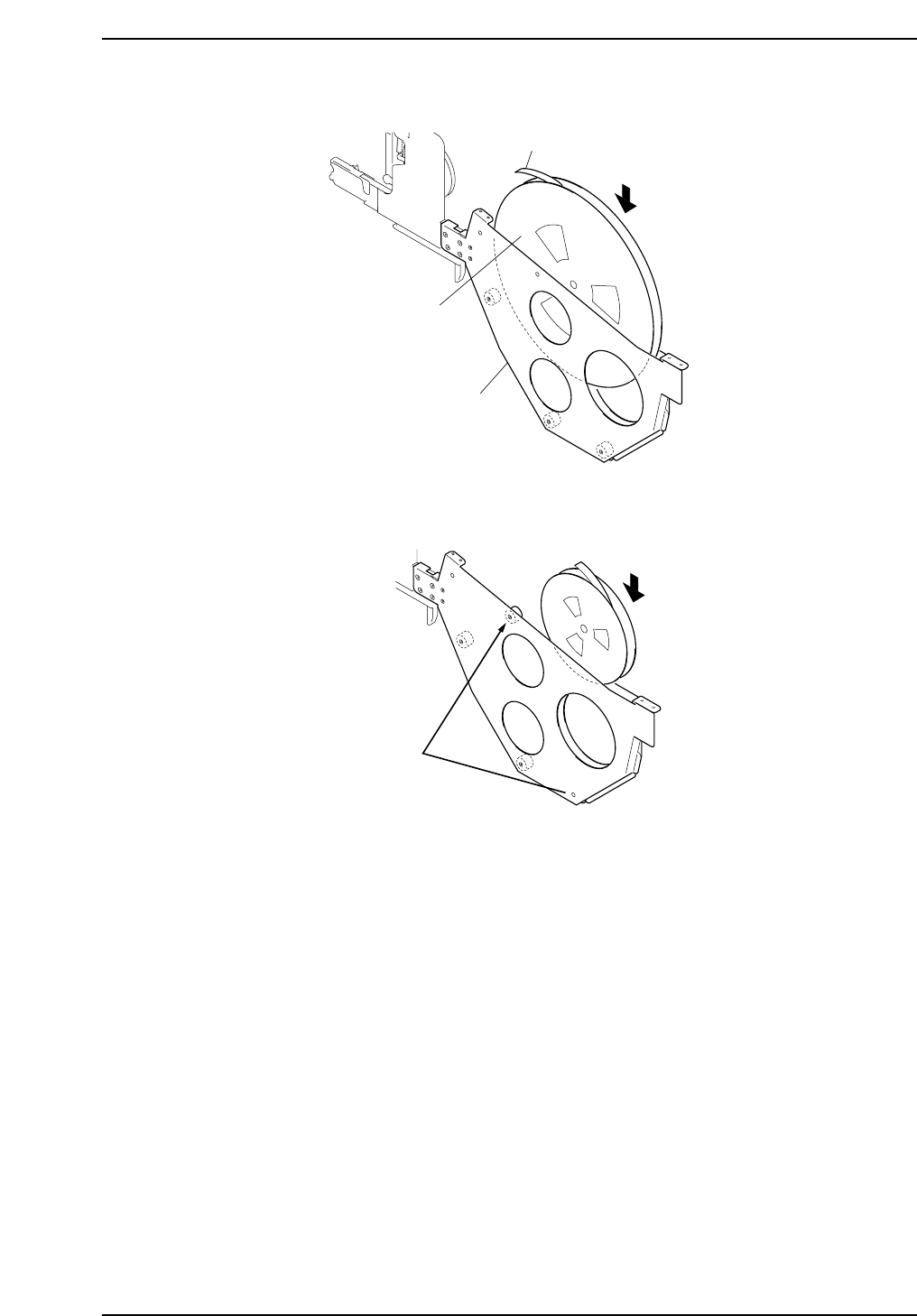

i) Using 13 inch parts reels

ii) Using 7 inch parts reels

Setting the Parts Reel (13 inch holder)

Note: If the roller position is not changed, the parts reel will fall off during operation.

Change the roller

position

CP6M8007

Parts tape

Parts reel

Holder

CP6M8006

Part 8 Chapter 1 WC Feeders

Edition 1.0 8-1-5 CP-6 Series Mechanical Reference

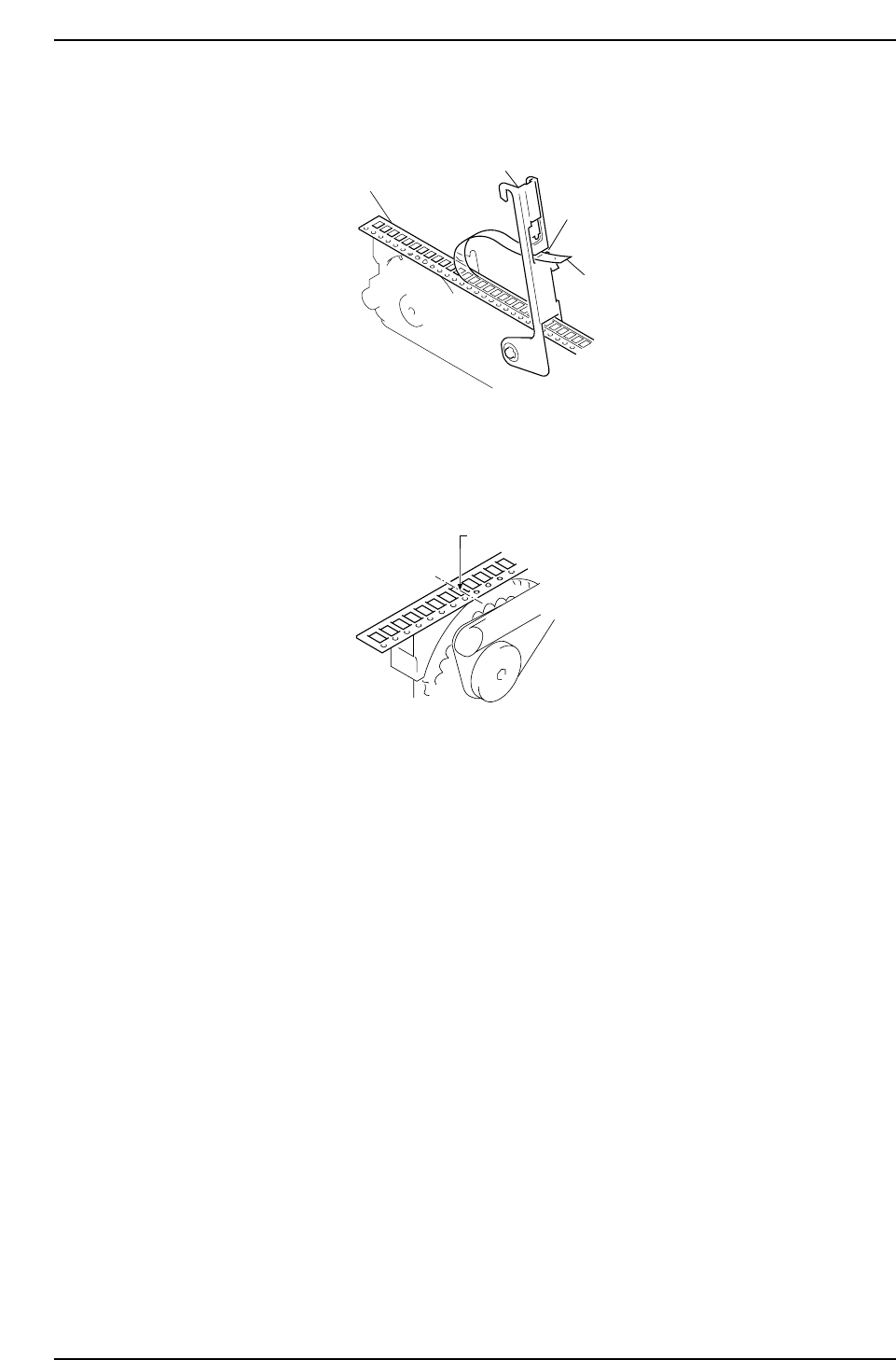

3. Slide the parts tape under the raised tape leaf and pull to the front of the feeder.

Peel the top-film off the tape and insert into the slit in the tape leaf.

Parts Tape Set (position 1)

4. Match the feeding holes on the tape with the sprocket gear. At this time, consider

the pick-up position.

Parts Tape Set (position 2)

Pickup point

CP6M8009

Tape leaf

Parts tape

Slit

Top-film

CP6M8008

Part 8 Chapter 1 WC Feeders

Edition 1.0 8-1-6 CP-6 Series Mechanical Reference
