8. Manually feed the part and check the pick-up position. To feed the part one pitch, push the lever in the direction as shown. When the component pitch is P24 or P32, it is necessary to feed 2 times. When the component …

6. Tie a knot in the end of the top-film, insert into the slit on the take-up reel cover

and pull until snug. On the take-up reel there are two arrows. When locking the

take-up reel, align the arrows and turn in the direction as shown below.

Setting the Top-film

7. After feeding the top-film through the rollers, rotate the take-up reel in the

direction of the arrow as shown. When the top-film is wound too tight, it is

necessary to turn the take-up reel in the opposite direction. Because there is

resistance in the take-up reel axis, it is necessary to use a little force when rotating.

Setting the Top-film

Roller

Top-film

CP6M8022

Slit

Take-up reel

Top-film

CP6M8021

Part 8 Chapter 1 WC Feeders

Edition 1.0 8-1-14 CP-6 Series Mechanical Reference

8. Manually feed the part and check the pick-up position. To feed the part one pitch,

push the lever in the direction as shown. When the component pitch is P24 or P32,

it is necessary to feed 2 times. When the component pitch is P36, it is necessary to

feed 3 times.

Confirming Pick-up Position

9. Confirm that the part lines up with the pickup point shown below, after feeding

the part one pitch at a time. Use a pair of scissors to cut the tape that extends over

the end of the feeder.

Note: Tearing the tape by hand may cause feeding problems.

Confirming Pick-up Position

❈

Pick-up point

CP6M8024

Tape feed lever

CP6M8023

Part 8 Chapter 1 WC Feeders

Edition 1.0 8-1-15 CP-6 Series Mechanical Reference

1.6 Loading W32 Paper Feeder (used only in Japan)

1.6.1 Loading Procedures

1. Release the lock by raising the tape leaf while pushing the clamp pins (one on the

right side and one on the left side) at the same time. When unlocked, the tape leaf

will raise up in the direction of the arrow (due to spring pressure).

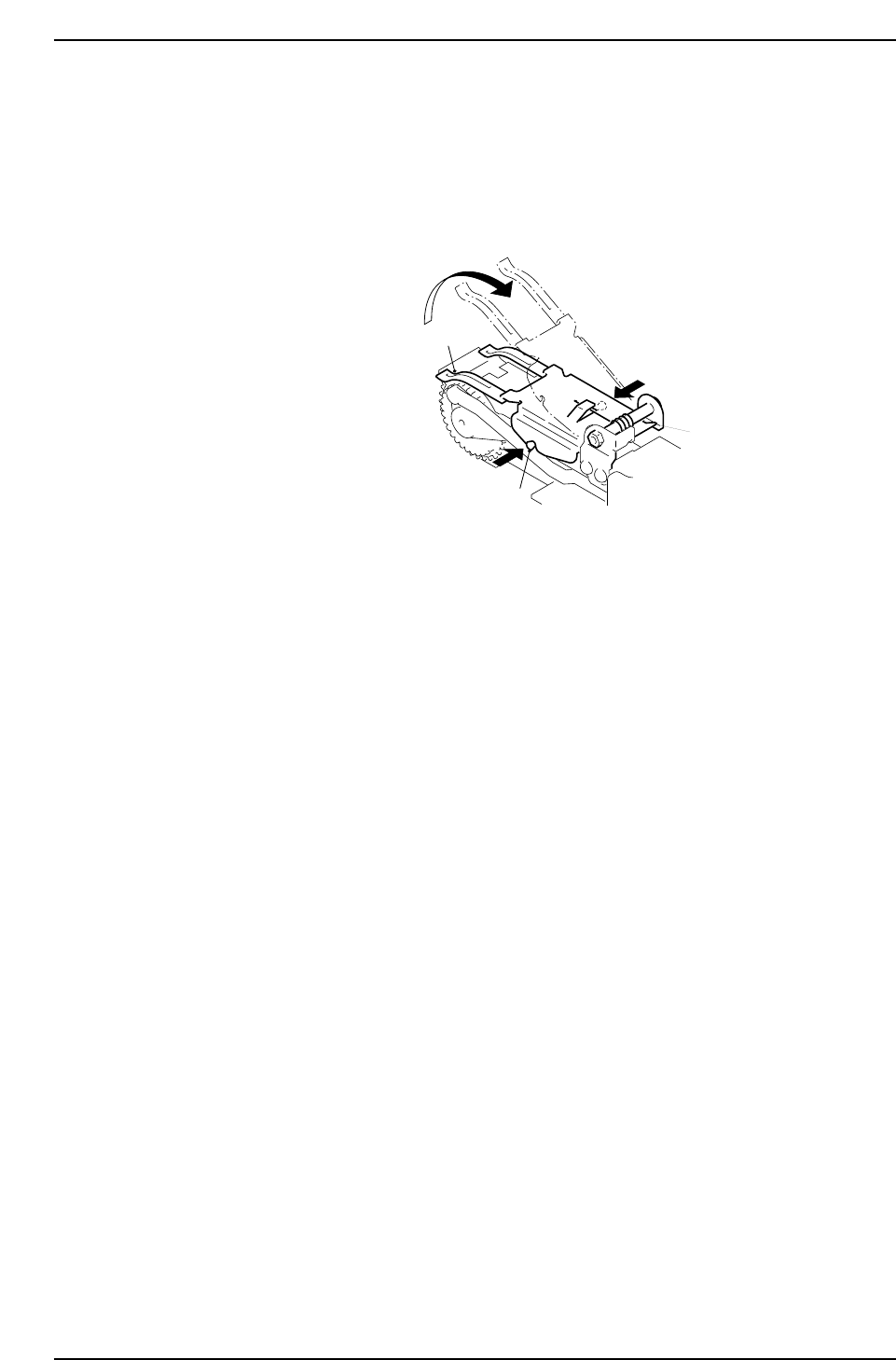

Unlocking the Tape Leaf

Tape leaf

Spring

Clamp pin

CP6M8025

Part 8 Chapter 1 WC Feeders

Edition 1.0 8-1-16 CP-6 Series Mechanical Reference
