1.7 Pick-up Point and Parts Set Position Part locations vary with the pick-up points of each feeder. Refer to the following illustrations for the distances from the tips of the feeders and the setting conditions. • Embos…

9. Confirm that the part lines up with the pick-up point shown below after feeding

the part one pitch at a time. Use a pair of scissors to cut the tape that extends over

the end of the feeder.

Note: Tearing the tape by hand may cause feeding problems.

Confirming Pick-up Position

❈

Pickup point

CP6M8033

Part 8 Chapter 1 WC Feeders

Edition 1.0 8-1-21 CP-6 Series Mechanical Reference

1.7 Pick-up Point and Parts Set Position

Part locations vary with the pick-up points of each feeder. Refer to the following

illustrations for the distances from the tips of the feeders and the setting conditions.

• Embossed Tape

4, 8, 12, 16 mm pitch

Pickup Position and Parts Set Position 1

Pick-up point

CP6M8034

Part 8 Chapter 1 WC Feeders

Edition 1.0 8-1-22 CP-6 Series Mechanical Reference

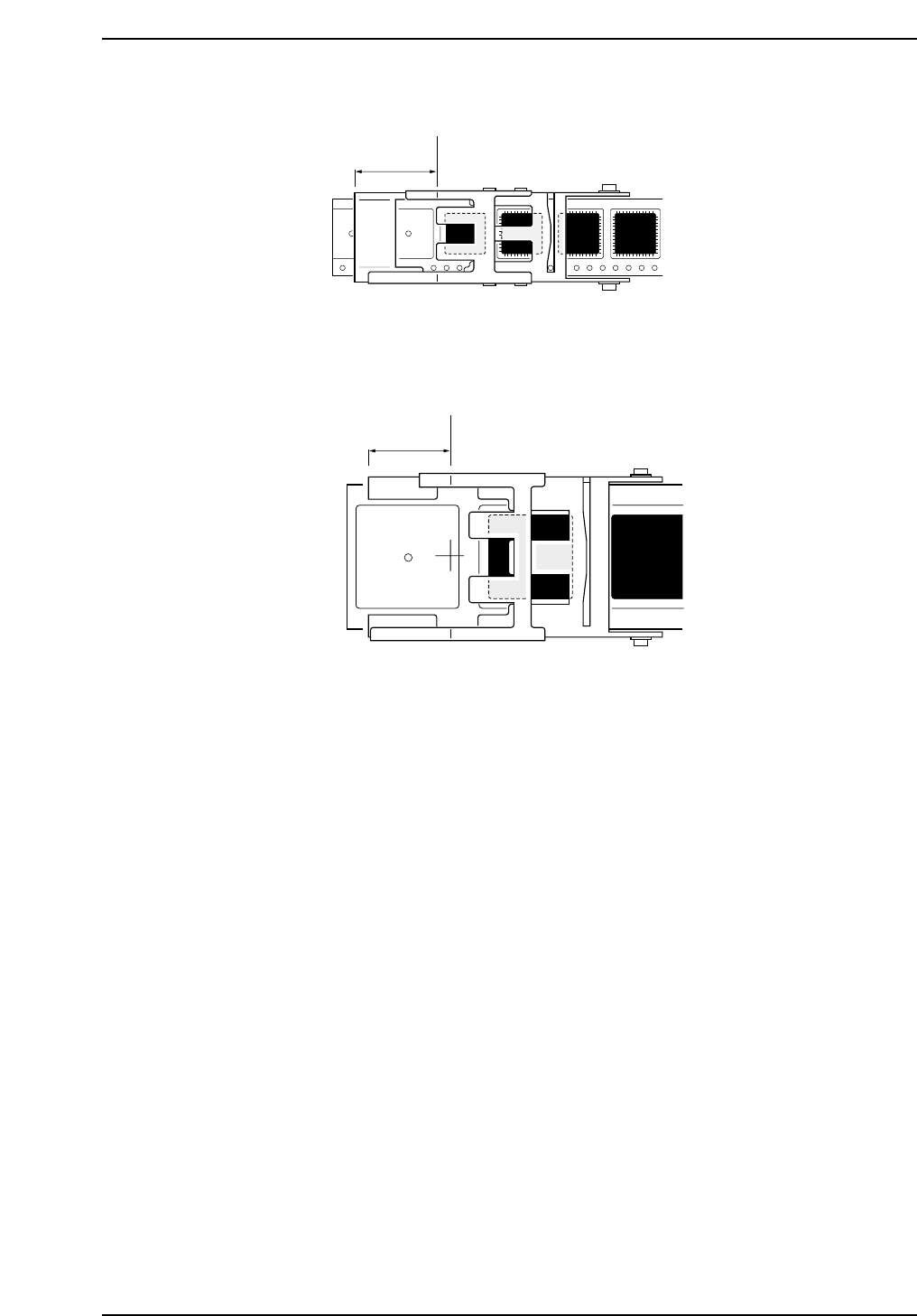

P24 mm (P12x2)

P32 mm (P16x2)

Pick-up Position and Parts Set Position 2

P36 mm (P12x3)

Pick-up Position and Parts Set Position 3

Pick-up point

CP6M8035

Pick-up point

CP6M8034a

Part 8 Chapter 1 WC Feeders

Edition 1.0 8-1-23 CP-6 Series Mechanical Reference
