1.8 Replacing T ape Leaf All types of tape leaves are explained in section 1.9 “Selecting a Tape Leaf” of this chapter. • W8, W12 Replacing T ape Leaf (W8, W12) 1. Push the tape leaf lock in the direction of the arrow as…

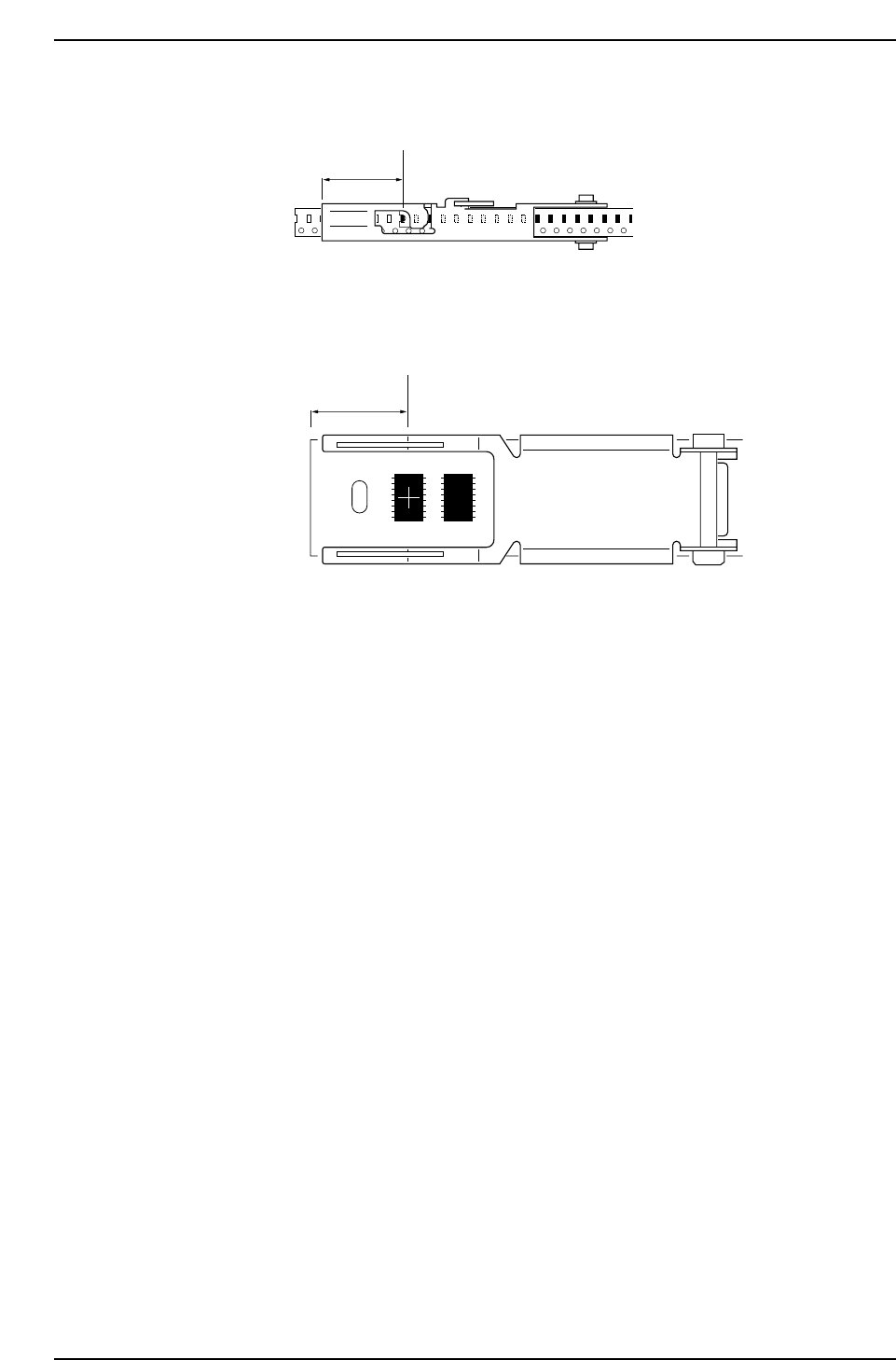

• Paper Tape

P2, 4 mm

Pick-up Position and Parts Set Position 4

P12 mm

Pick-up Position and Parts Set Position 5

Pick-up point

CP6M8037

Pick-up point

CP6M8036

Part 8 Chapter 1 WC Feeders

Edition 1.0 8-1-24 CP-6 Series Mechanical Reference

1.8 Replacing Tape Leaf

All types of tape leaves are explained in section 1.9 “Selecting a Tape Leaf” of this

chapter.

• W8, W12

Replacing Tape Leaf (W8, W12)

1. Push the tape leaf lock in the direction of the arrow as shown.

2. Remove the tape leaf E ring.

3. Remove the pin from the feeder body.

4. Remove the tape leaf by raising up.

5. After replacing, follow the steps in reverse to attach.

Note: After replacing, make sure to lock the new tape leaf.

Tape leaf

" E " ring

Tape leaf lock

CP6M8038

Part 8 Chapter 1 WC Feeders

Edition 1.0 8-1-25 CP-6 Series Mechanical Reference

• W12xP12, W16, W24, W32, W44 (embossed)

Replacing Tape Leaf (W12xP12, W16, W24, W32 W44 embossed)

1. While pushing in the catch pins (one on the right and one on the left), unlock and

raise up the tape leaf.

2. Remove the tape leaf E ring.

3. Remove the pin from the feeder body.

4. Remove the tape leaf by raising up.

5. After replacing, follow the steps in reverse to attach.

Note: After replacing, make sure to lock the new tape leaf.

Catch pin

Tape leaf

" E " ring

CP6M8039

Part 8 Chapter 1 WC Feeders

Edition 1.0 8-1-26 CP-6 Series Mechanical Reference
