WC Feeders Slot Dimensions 2/2 Part 8 Chapter 1 WC Feeders Edition 1.0 8-1-39 CP-6 Series Mechanical Reference

1.10 Feeder Slot Dimensions

The dimensions of the feeder slots are indicated below.

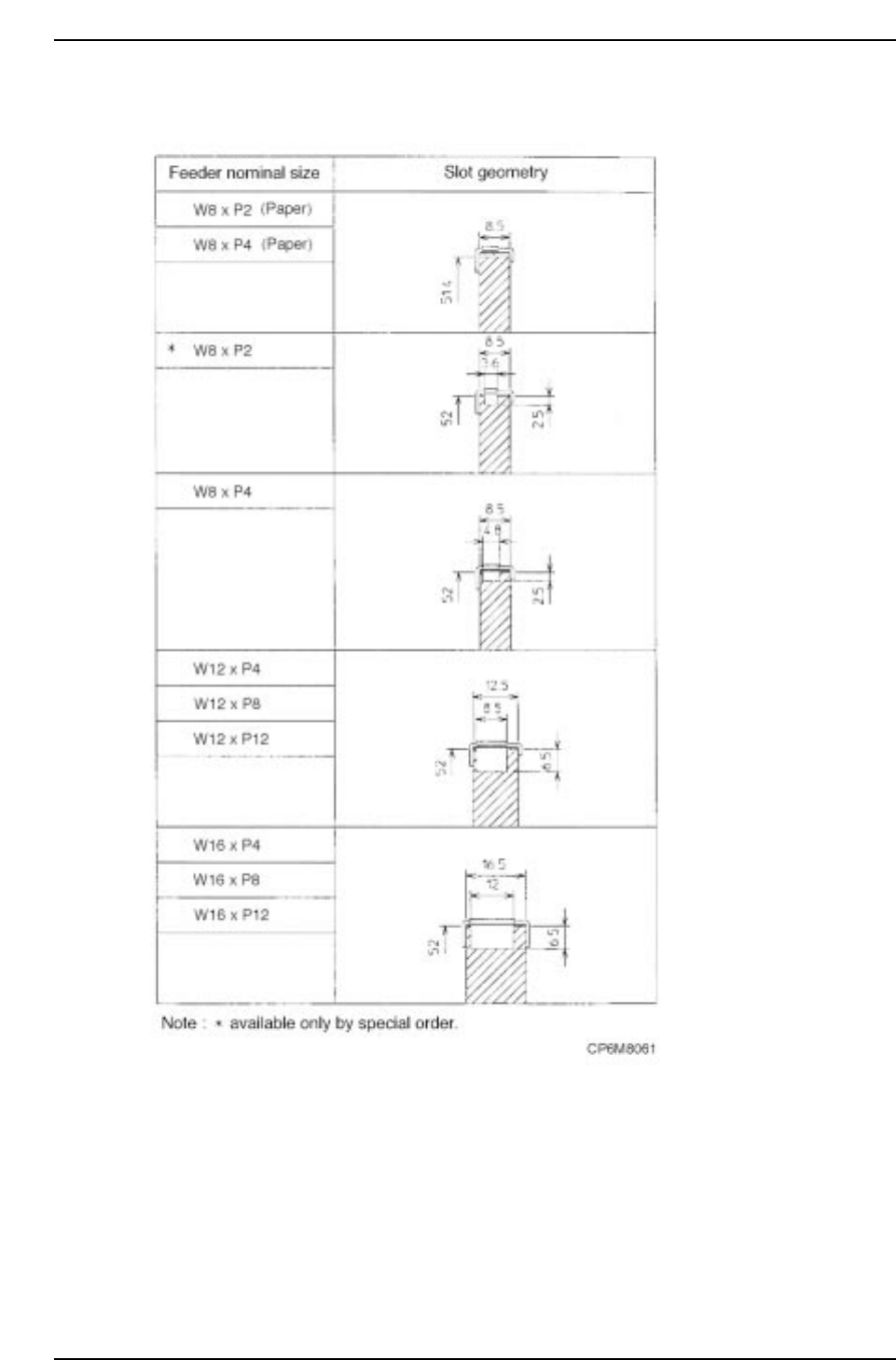

WC Feeders Slot Dimensions 1/2

Part 8 Chapter 1 WC Feeders

Edition 1.0 8-1-38 CP-6 Series Mechanical Reference

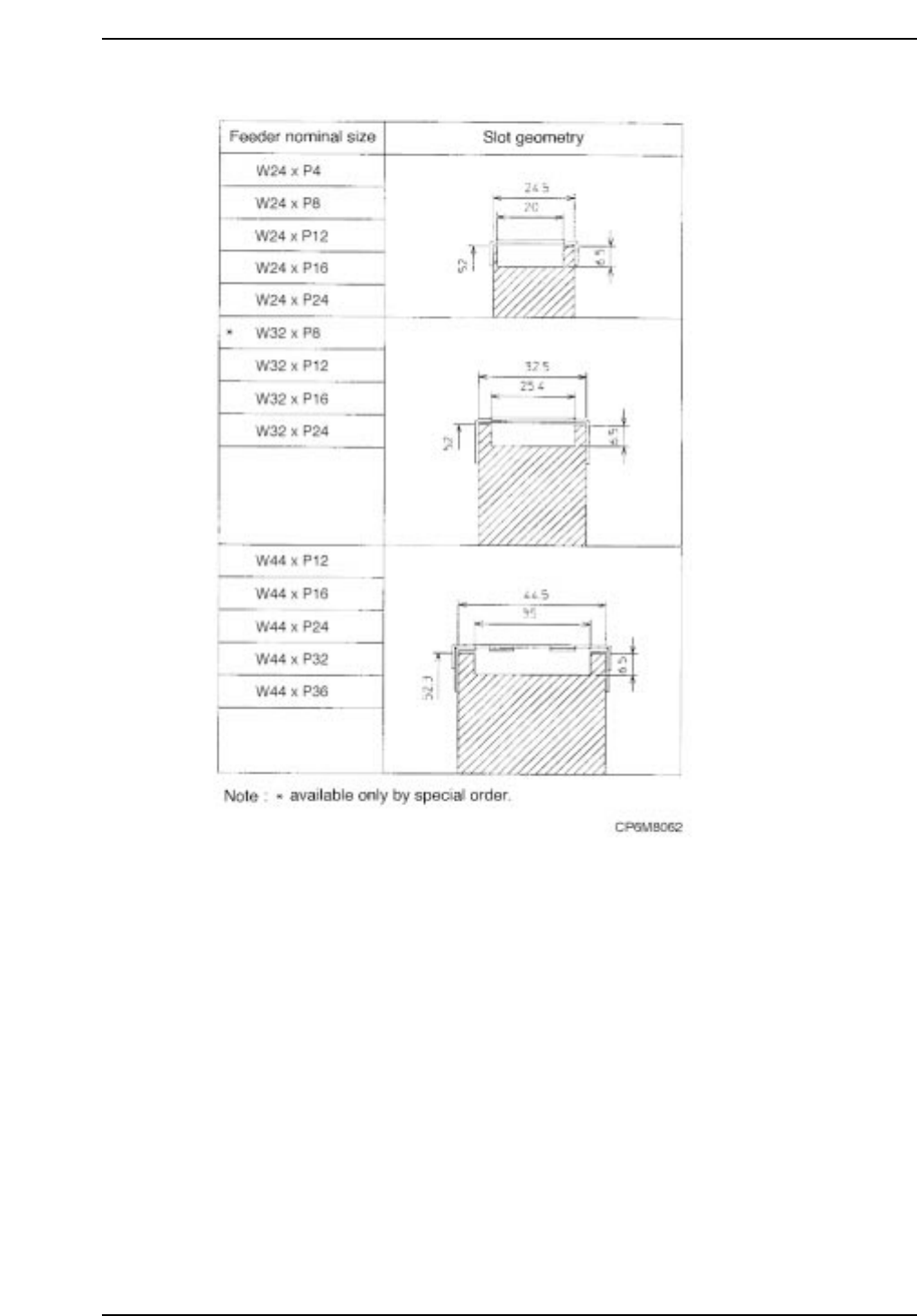

WC Feeders Slot Dimensions 2/2

Part 8 Chapter 1 WC Feeders

Edition 1.0 8-1-39 CP-6 Series Mechanical Reference

1.11 Adjustment

1.11.1 Adjusting the W32 mm (Paper) Feeder Body Height

There are two types of W32 mm (paper) feeders used depending on the thickness of the

parts.

A type : for parts thicker than 2 mm but less than 3 mm

B type : for parts thicker than 1 mm but less than 2 mm

These two types of feeders are changed by replacing the lever, spacer and seal.

1. Replacing the lever and the seal

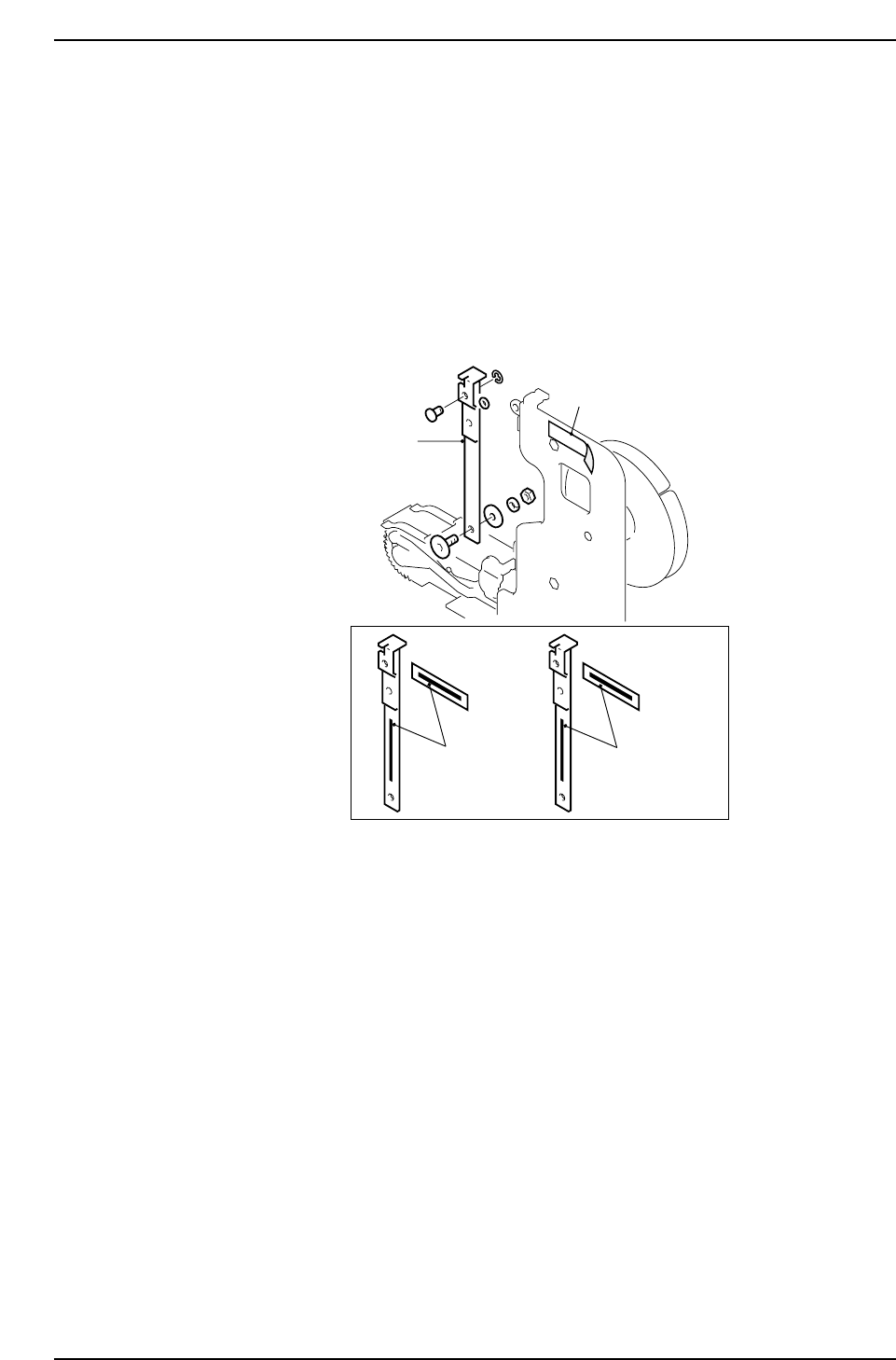

Replacing the Lever and Seal

W32JXP12 T=2~3 W32JXP12 T=1~2

Seal

Lever

CP6M8063

Part 8 Chapter 1 WC Feeders

Edition 1.0 8-1-40 CP-6 Series Mechanical Reference
