Notes: Part 9 Chapter 6 Pallet Pushers Edition 1.0 9-6-4 CP-6 Series Mechanical Reference

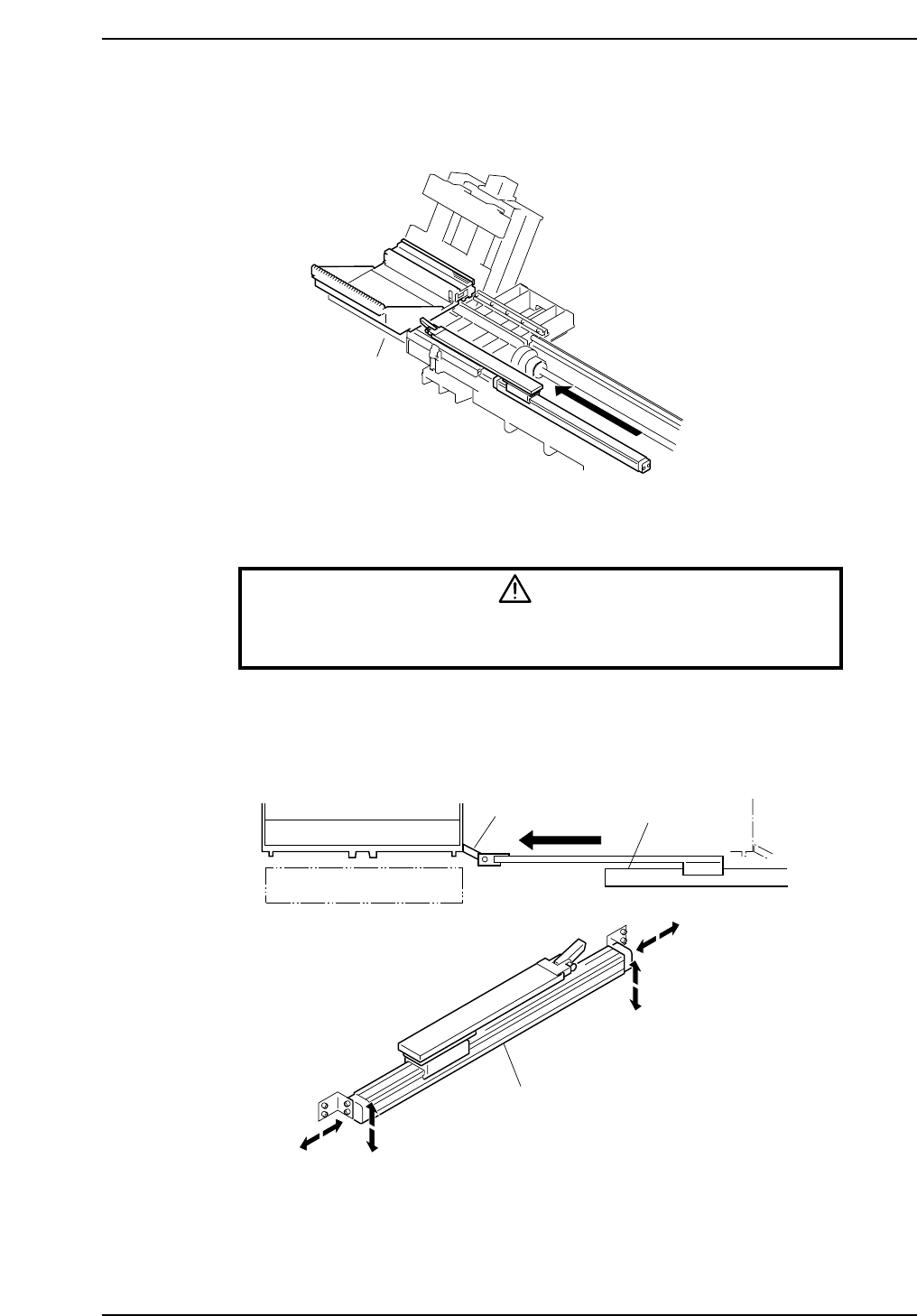

6.2 Pallet Ejection Pusher

The pallet ejection pusher ejects pallets on the D-axis carrier to the "down" lifter.

Adjusting the Position of the Pneumatic Cylinder

Warning

Always be sure to cut out the 200 V power before carrying out any

work.

1. Push a pallet to the "down" lifter.

2. Adjust the position of the cylinder so that there is no play between the side of the

pallet and the tab on the pusher at this time.

Pneumatic cylinder

Pallet

Tab

CP6M9042

CP6M9041

Part 9 Chapter 6 Pallet Pushers

Edition 1.0 9-6-3 CP-6 Series Mechanical Reference

Notes:

Part 9 Chapter 6 Pallet Pushers

Edition 1.0 9-6-4 CP-6 Series Mechanical Reference

7. Pallet Mounting and Removal

Warning

Always be sure to cut out the 200 V power before carrying out any

work.

Command operations are used for mounting and removal of pallets on the feeder.

Gate arm

"Up" lifter

Pallet

Grooved area

Cam follower

CP6M9043

Part 9 Chapter 7 Pallet Mounting & Removal

Edition 1.0 9-7-1 CP-6 Series Mechanical Reference
