chapter 1
This Chapter describes the work environment and working tools for the maintenance of
the machine.
Conditions for Maintenance
Next Generation, Multi-Functional Placer
DECAN S1 Maintenance Handbook
1-11
Tools for Maintenance

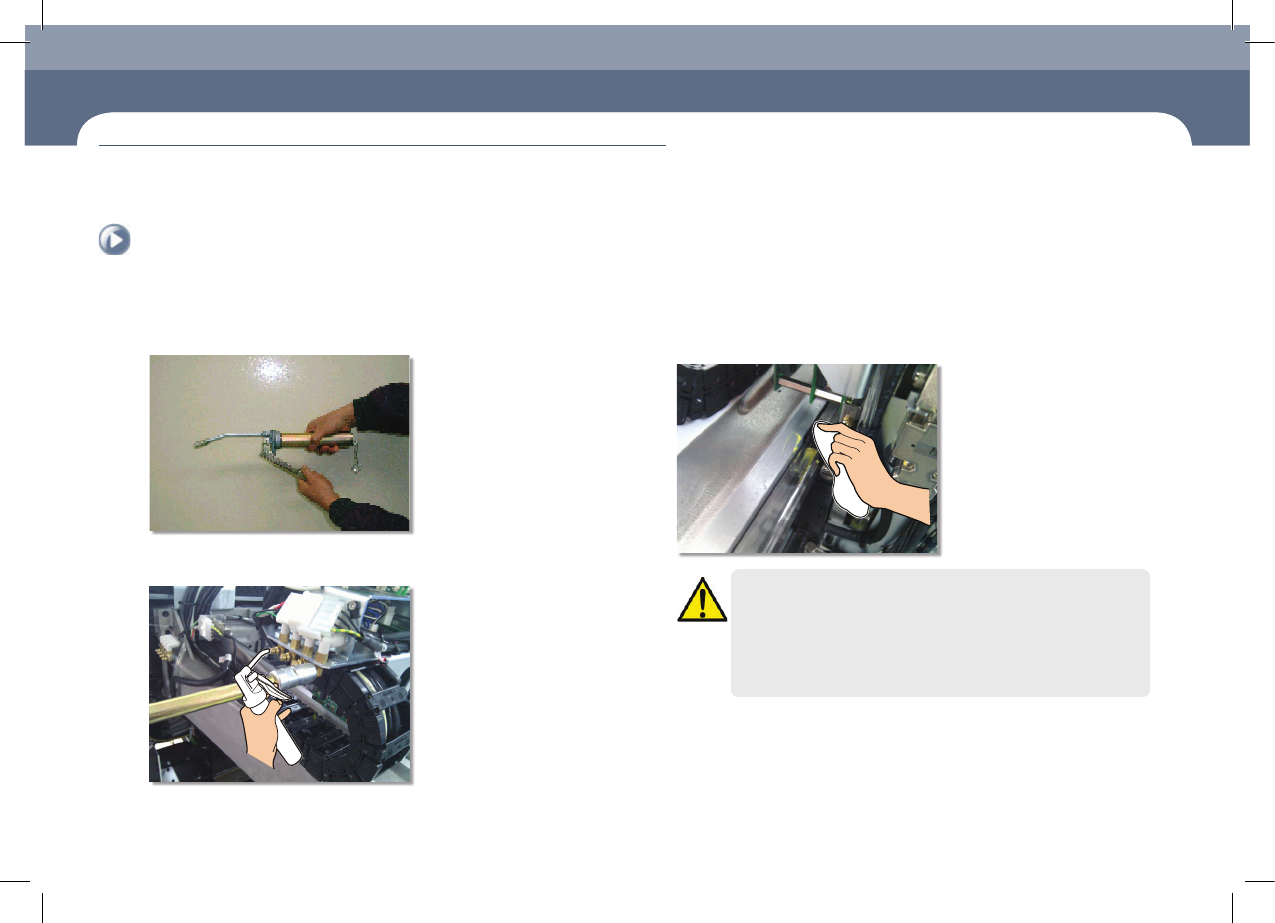

Step 6.
Move the rear lever forward and remove the air inside
the lubricator using the handle.
Step 7.
After visual check, inject appropriate amount of grease
pressing the handle.
Step 8.
After lubrication, remove the waste grease that has
leaked out.
Caution
Inject the specified grease using the specified lubricator according to
the proper method.
Do not lubricate in any manner other than that shown above.
If the machine's operating environment is harsh, check its lubrication
status frequently.
chapter 1
This Chapter describes the work environment and working tools for the maintenance of
the machine.
Conditions for Maintenance
Next Generation, Multi-Functional Placer
DECAN S1 Maintenance Handbook
1-12
Tools for Maintenance
Conditions for Maintenance
4. Grease List
Part No. Part Name Use Specifications Ref.
CM01-900473 TRI-FLOW [59ML] - Nozzle TRI-FLOW -
HP09-000258 SUPPLY,OIL-GREASE-GUN_MG70_THK
- X Frame LM Guide
- Y Frame LM Guide
- Conveyor Lead Screw
- Conveyor Lead LM Guide
- X Frame Ball Screw
MG70
70g Exclusive use
GUN
CM02-900022 GREASE GADUS S2 V220-2
- Head Head Spindle, Mirror CAM
- Conveyor LM Guide
- Conveyor Lead Screw
GADUS S2 V220-2 -
CM02-000083 GREASE-GREASE_AFE-CA+70_THK;SYNTHETIC,OL
- X Frame LM Guide, Ball Screw
- Y Frame LM Guide
AFE-CA+70 -
CM02-000084 GREASE-GREASE_AFE-CA+400_THK;OIL,SYNTHET AFE-CA+400 -
chapter 2
Inspection Items for Maintenance
Next Generation, Multi-Functional Placer
DECAN S1 Maintenance Handbook
2-1
Daily Inspections
Check-up List
Replacement
Time
Reference
Time
required
Period No Inspection Item Measures Tools
Daily
D-1 Nozzle Inspect and clean Air gun, swab, Ethyl Alcohol 2years
After use of the
machine
10 Minutes
D-2 Feeder, Feeder Base Clean Brush, cloth
After use of the
machine
10 Minutes
D-3 Backup Table Clean Cloth
After use of the
machine
5 Minutes
D-4 Air Filter Inspect and replace 1years Frequent inspection 30 Minutes
D-5 Mist Separator Filter Inspect and replace 1years Frequent inspection 30 Minutes
D-6 Fix Camera Cover Glass Inspect and clean
Ultra fine fiber cloth, alcohol,
Wrench
10 Minutes
D-7 Fix Camera Lens Inspect and clean Air Ejector, Wrench 10 Minutes
Setting the replacement period for parts
ㆍ Based on the regulated use environment.
ㆍ If the use environment is poor, the intervals for part inspection and replacement can be shortened.
ㆍ In the above table, C/S means our designated C/S company (STS) or our overseas local agents.
