chapter 1
This Chapter describes the work environment and working tools for the maintenance of
the machine.
Conditions for Maintenance
Next Generation, Multi-Functional Placer
DECAN S1 Maintenance Handbook
1-7
Working Environment and Condition
Requirements for air pressure
DEF. DESCRIPTION
Primary pressure 5.0 ~ 7.0 kgf/cm2
Secondary pressure 4.5 ~ 5.5 kgf/cm2
Air Consumption 350 ± 10% NL/min
Environmental conditions
DEF. DESCRIPTION
During
operation
Temperature 10℃~35℃(20℃~28℃)
Humidity
30%~80%RH (non-condensation state)
Lessthan70%RH(Morethan30℃,non-
condensation state)
During
shipment or
storage (in
states other
than during
operation)
Temperature -10℃~60℃
Humidity
10%RH ~ 90% RH (non-condensation state)
Morethan35℃(Lessthawet-bulbtemperature
35℃,non-condensationstate)
Power requirements
DEF. DESCRIPTION Notes
Capacity 3.5 KVA
Frequancy 50/60Hz
Phase 3 Phase
Connection Y-Y
Rated Primary
Voltage
AC200V ±10%
AC208V ±10%
AC220V ±10%
AC240V ±10%
AC380V ±10%
AC415V ±10%
Warning
If unspecified voltage is used or power input is changed
improperly, fire could occur and a death from electric shock could
occur.
Change of power input must be done by a trained repair and
maintenance operator or our authorized C/S personnel.
Working Environment and Condition
chapter 1
This Chapter describes the work environment and working tools for the maintenance of
the machine.
Conditions for Maintenance
Next Generation, Multi-Functional Placer
DECAN S1 Maintenance Handbook
1-8
Tools for Maintenance
Conditions for Maintenance
1. Cleaning Kit (Material shape: FC08-001021A)
The Cleaning Kit for the maintenance of this machine must be purchased separately.
The components of the cleaning kit and their use are as follows:
NO. NAME DESCRIPTION
1 Air Ejector
Used to blow away any dirt on the surface of
the camera lens.
2 Brush
Used to remove any chips or foreign matter
on the feeder base surface.
3 Swab Used to clean the nozzle holder.
4 alcohol Used to clean the cover glass surface.
5 Ultra-fine fiber cloth
Used to clean any foreign matter on the
mirror or lens.
6 Embossed glove Used to clean the camera or mirror.
1 2
3
4
5
6
Tools for Maintenance
chapter 1
This Chapter describes the work environment and working tools for the maintenance of
the machine.
Conditions for Maintenance
Next Generation, Multi-Functional Placer
DECAN S1 Maintenance Handbook
1-9
Tools for Maintenance

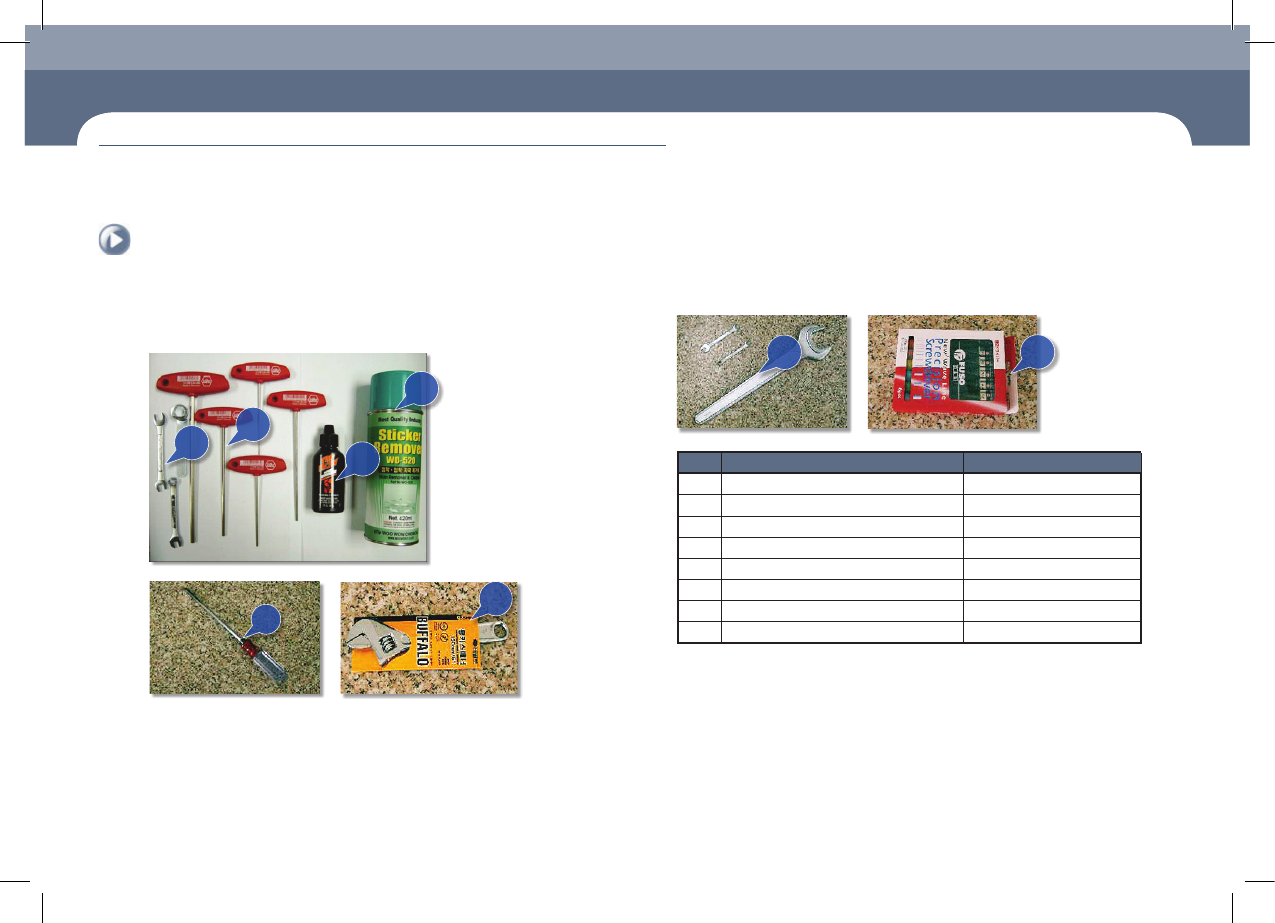

2. Other tools provided
The tools necessary for the maintenance of this machine must be purchased
separately.
1
2
3
4
5
6
7
8
NO. NAME Material number
1 Gear Wrench(7mm) TO03-900148
2 T Wrench J9099034A
3 Lubricant for nozzle CM01-900473
4 Spray CM01-900472
5 Driver TO03-900168
6 Monkey Wrench TO03-900169
7 Gear Wrench(46mm) TO03-900149
8 Precision Screwdriver Set TO03-900043
