Monthly Inspection
chapter 5
Next Generation, Multi-Functional Placer
DECAN S1 Maintenance Handbook
5-4

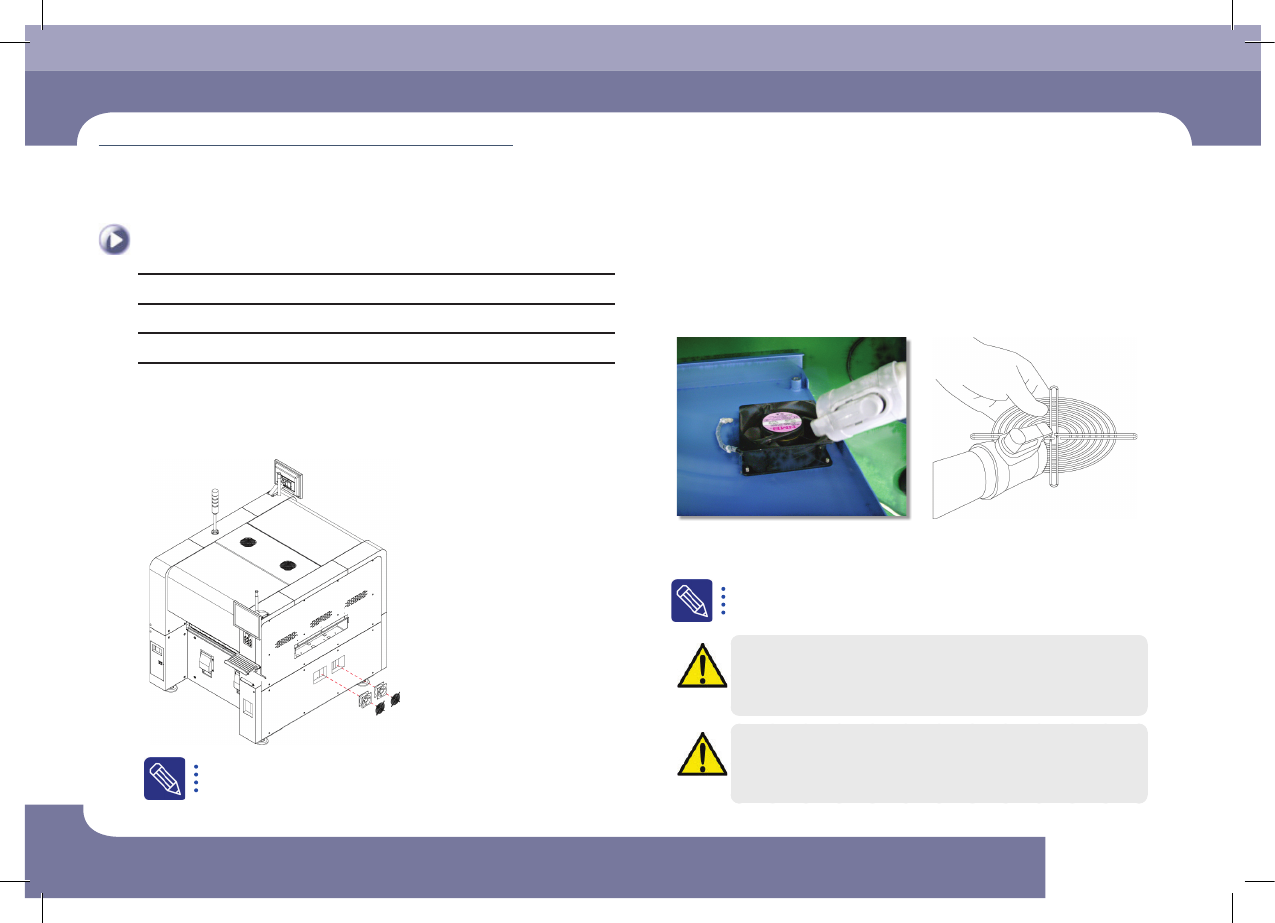

Checking and Cleaning Right Cover Cooling Fan
Monthly Inspection
Checking and Cleaning Right Cover Cooling Fan
Tool for Maintenance
Vacuum cleaner, screwdriver(+)
Measures
Step 1.
Turn off the power supply to the machine as described
ino "How to turn off the power supply" on page 1-1.
Step 2.
Remove the cover on the left and right side of the
machine using a crosshead screwdriver.
If there is not enough space for fan removal since the machine is
configured in line with a machine by its side, clean the filter and fan
using an air gun without removing them.
Step 3.
Clean the cooling fans using a vacuum cleaner.
Step 4.
Turn on the main switch after cleaning to check the
noise and movement of the cooling fan.
If abnormal noise and operational problem still occur, turn off the
main switch again and replace the cooling fan.
Caution
When the main switch is turned on, since the cooling fan operates,
user's hand may get injured. Careless touching of the cable, etc.
may cause electric shock. Therefore, special care is need.
Caution
The cooling fan replaement work accomanies a danger.
Therefore, contact out C/S company (STS) or local agent.
(Time required: 10min / No. M-3)
Monthly Inspection
chapter 5
Next Generation, Multi-Functional Placer
DECAN S1 Maintenance Handbook
5-5

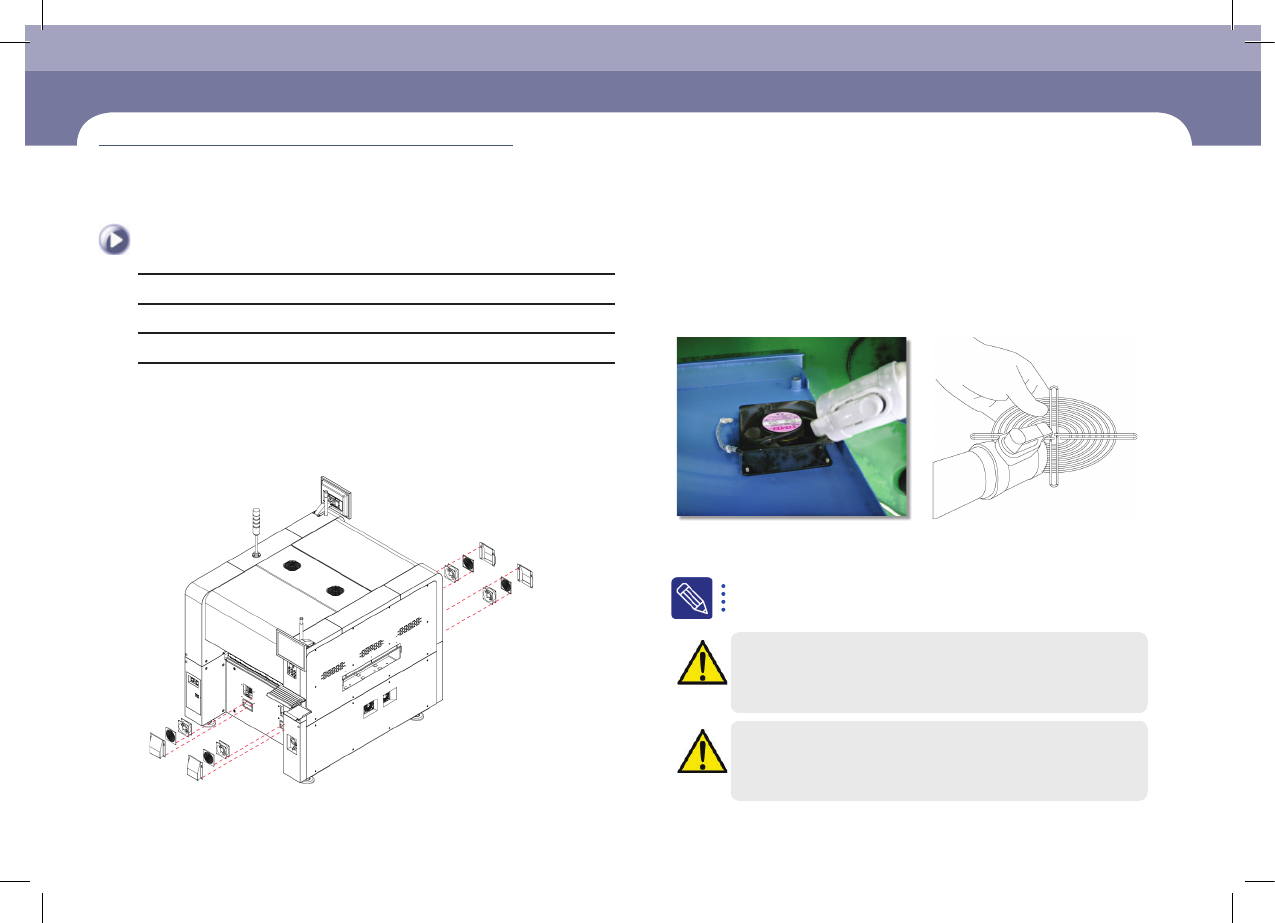

Checking and Cleaning the cooling fan of the front and rear covers
Checking and Cleaning the cooling fan of the front
and rear covers
Tool for Maintenance
Vacuum cleaner, screwdriver(+)
Measures
Step 1.
Turn off the power supply to the machine as described
ino "How to turn off the power supply" on page 1-1.
Step 2.
Remove the cover on right side of the machine using a
crosshead screwdriver.
Step 3.
Clean the cooling fans using a vacuum cleaner.
Step 4.
Turn on the main switch after cleaning to check the
noise and movement of the cooling fan.
If abnormal noise and operational problem still occur, turn off the
main switch again and replace the cooling fan.
Caution
When the main switch is turned on, since the cooling fan operates,
user's hand may get injured. Careless touching of the cable, etc.
may cause electric shock. Therefore, special care is need.
Caution
The cooling fan replaement work accomanies a danger.
Therefore, contact out C/S company (STS) or local agent.
(Time required: 15min / No. M-4)
Monthly Inspection
chapter 5
Next Generation, Multi-Functional Placer
DECAN S1 Maintenance Handbook
5-6
Cleaning Linear Motor and Magnet of Y Frame
Monthly Inspection
Cleaning Linear Motor and Magnet of Y Frame
Tool for Maintenance
Ultra fine fiber cloth
Measures
Step 1.
Turn off the power supply to the machine as described
ino "How to turn off the power supply" on page 1-1.
Step 2.
Clean the Y-axis linear motor and magnet using an ultra-
fine fiber cloth.
Caution
Check whether there are foreign materials or chips on the bottom
of the linear motor or on the side of the magnet. If so, remove
them without fail.
Caution
During cleaning, do not attach a magnet to the Magnet or motor.
Caution
The magnetic force of the linear motor may cause failure of
pacemakers, causing personal death or injury. Therefore, operators
with pacemakers should not get too close to the machine.
Step 3.
Release the emergency stop as described in "Releasing
'Emergency Stop' mode" on page 1-6 and perform the
operation again.
(Time required: 15min / No. M-5)
