Working with the Setup Center Application Packaging Unit Editor Separating a Packaging Unit Chain 108 User Guide SIPLACE Setup Center 5.1 7.1.2 Separating a Packaging Unit Chain You can separate individual packaging unit…
Working with the Setup Center Application
Packaging Unit Information - Tabs Packaging Unit Editor
User Guide SIPLACE Setup Center 5.1 107
7.1.1.6 Tab - Customer Information
This shows the customer information about this packaging unit.
7.1.1.7 Tab - Lifecycle
The lifecycle data is shown for this packaging unit.
7.1.1.8 Tab - Packaging Unit Locks
Shows information about locked packaging units in the chain.
Parameter Description
Comment Is currently only set via XML import or import from a superior
system (e.g. MES).
Additional Component Information Additional component information. Use varies between facto-
ries.
Extra1 Character string for additional information
Extra2 Character string for additional information
Extra3 Character string for additional information
Parameter Description
Last modified date Shows when the packaging unit was last updated.
Verified date The date on which this packaging unit was last verified
(scanned).
Consumed date The date on which this packaging unit was used up.
Last placed date The date on which this packaging unit was last placed.
WARNING
Removing packaging unit locks
All locks that have been assigned by Setup Center have to be "removed" by correcting the error
appropriately, e.g., scanning the correct barcode, refilling the correct track, using the splice
monitor dialogs to correct a splicing error. Select the Remove Lock button to remove the pack-
aging unit lock for a selected entry. The Remove Lock function is only necessary in rare cases.
The Remove Lock function is only available if the Password Request option was activated un-
der Tools =>Settings => Security.
Parameter Description
Action Date Shows when the packaging unit was locked.
Source Shows who locked the packaging unit.
Reason Shows the reason why the packaging unit was locked.
Message Shows an additional message about the packaging unit.
Working with the Setup Center Application
Packaging Unit Editor Separating a Packaging Unit Chain
108 User Guide SIPLACE Setup Center 5.1
7.1.2 Separating a Packaging Unit Chain
You can separate individual packaging unit segments from one another if, for example, you want to sep-
arate the packaging unit last scanned in at the splice chain.
Step-by-step procedure:
► Open the Packaging Unit Editor.

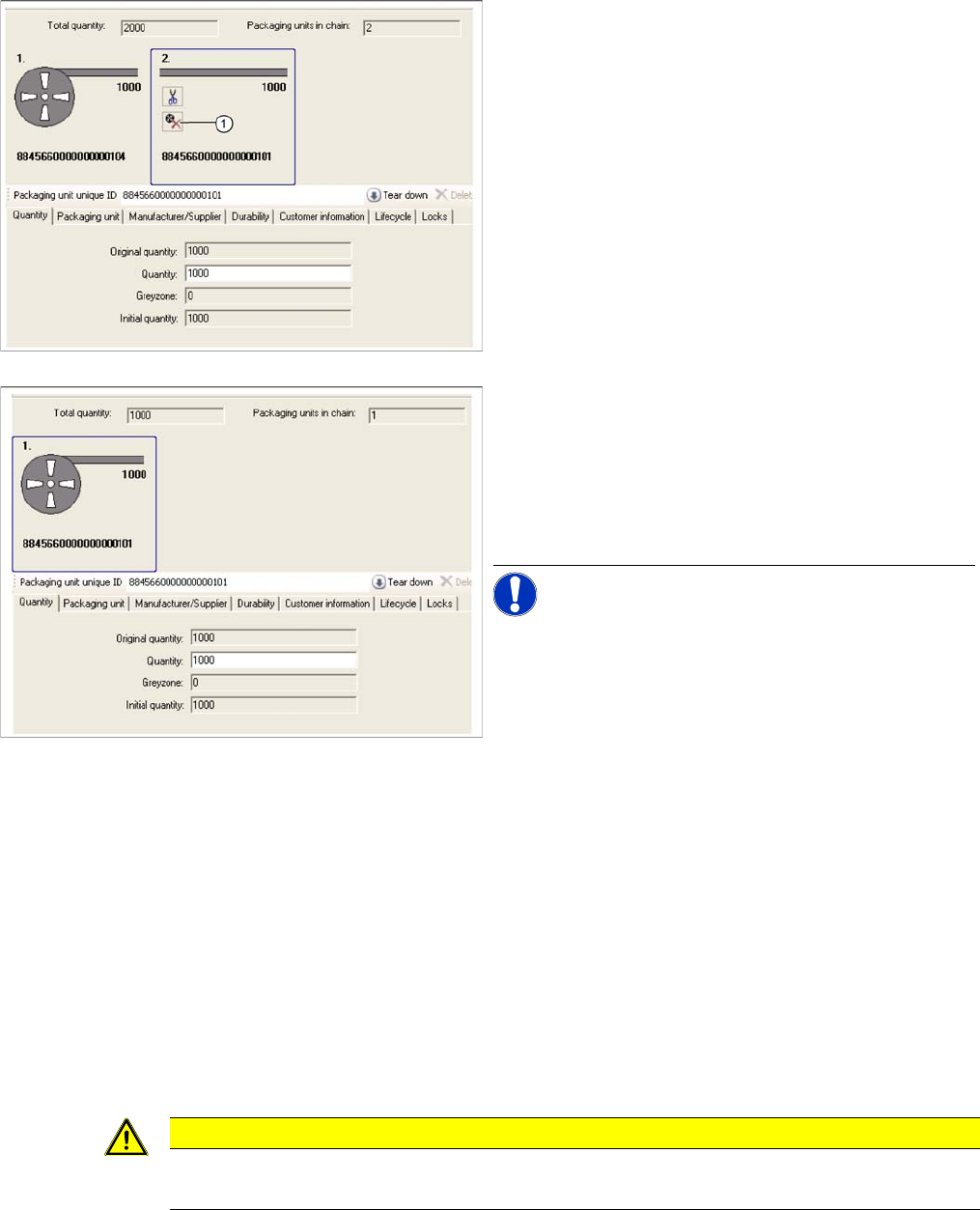

► Separate the packaging unit with the switch (1),
shown on the right of the packaging unit to be sepa-
rated off.
NOTICE! Packaging units which are to be sep-
arated also need to be physically separated.
► Confirm the message with Yes.
► The separated packaging unit will no longer be
shown in the Packaging Unit Editor. In the case of
unique barcodes, all packaging unit information is re-
tained. Only the rest of the packaging unit chain re-
mains configured. If the packaging unit chain is in a
setup which is active at the line, the change will be
sent to the station.
Working with the Setup Center Application
Setting a Packaging Unit to Consumed Packaging Unit Editor
User Guide SIPLACE Setup Center 5.1 109
7.1.3 Setting a Packaging Unit to Consumed
You can also remove individual packaging units from the chain, , provided the packaging unit concerned
has been used up completely.
Step-by-step procedure:
7.1.4 Deleting a Packaging Unit Chain
You can delete individual packaging units.
Prerequisite:
Make sure that the packaging unit has not been configured.
Step-by-step procedure:
► Open the Packaging Unit Editor.
► Select the Remove button.
⇨ The packaging unit will be deleted. The packaging unit information is removed from the database
irrevocably and all the related information is lost.
► Open the Packaging Unit Editor.

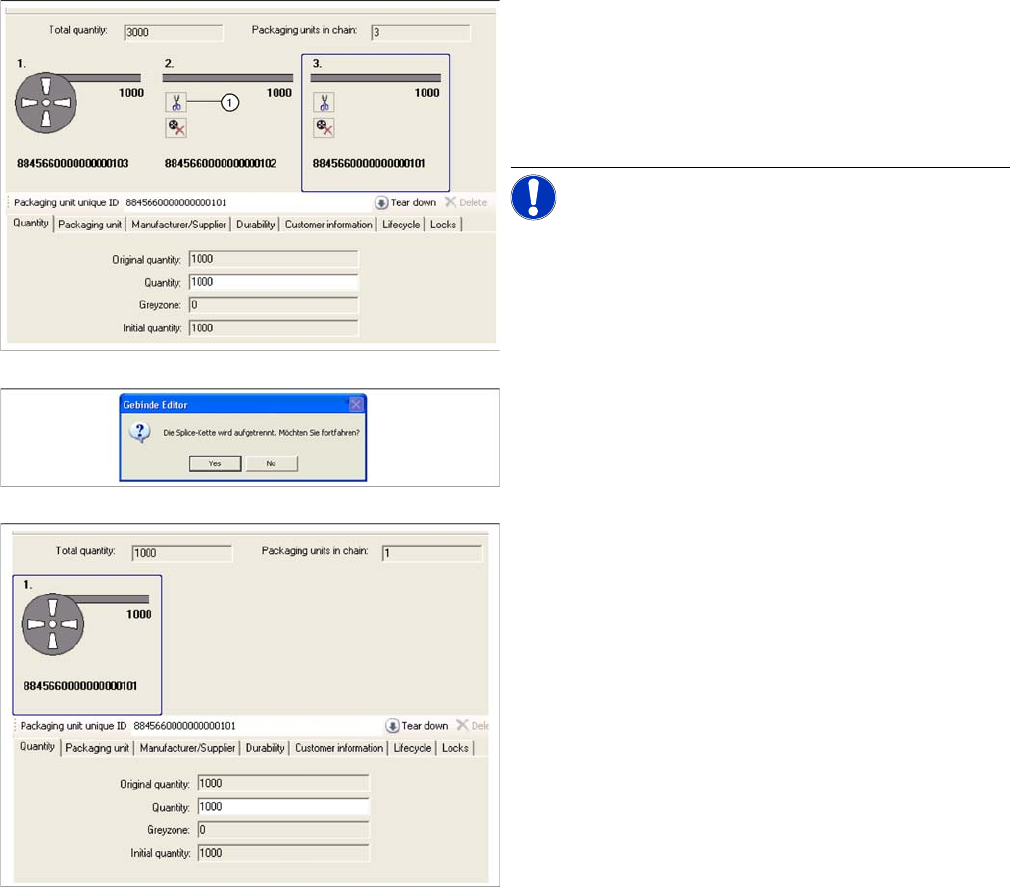

► Click the switch (1) in the packaging unit to be re-
moved.
► Confirm the message with Yes.
► The separated packaging unit will no longer be
shown in the Packaging Unit Editor. Only the rest of
the packaging unit chain remains configured. If the
packaging unit chain is in a setup which is active at
the line, the change will be sent to the station.
NOTICE! If there are other packaging units to
the right of this, these will also be set to "consumed".
CAUTION
Action "Delete“
The Delete action is irrevocable.
