7.8.3 Further Options

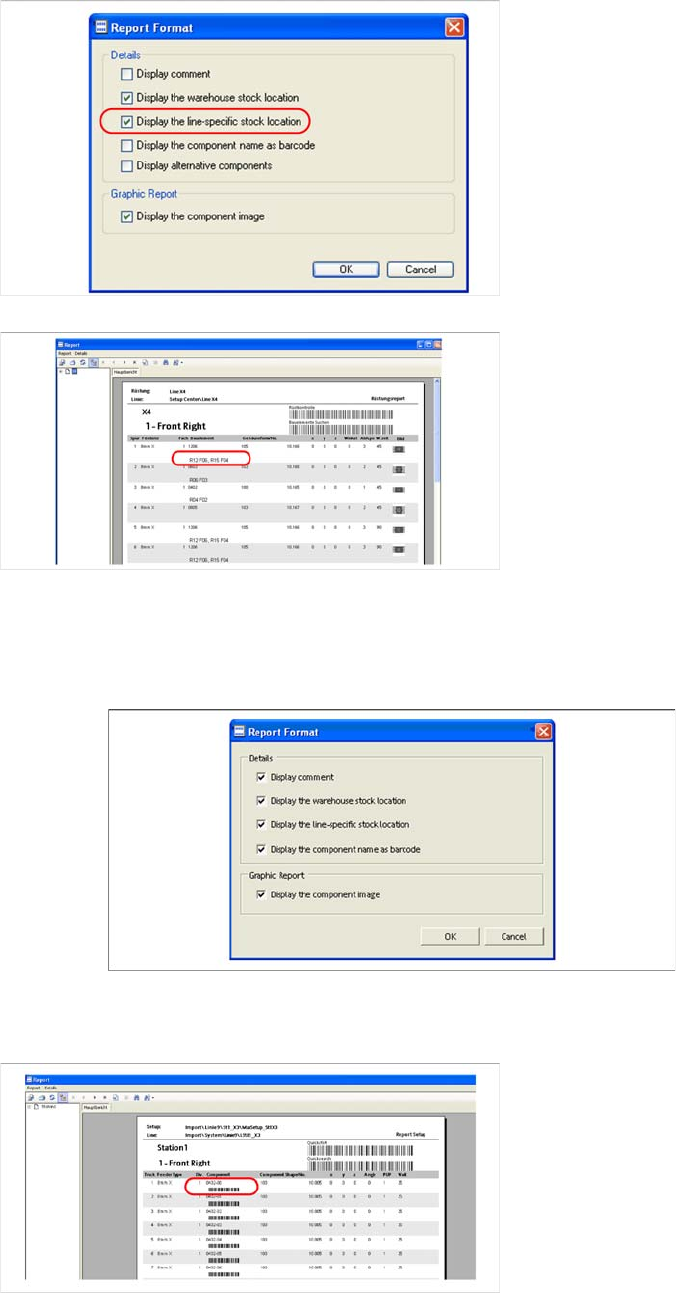

You can set further options for setup reports in the "Report Format" window, by selecting Details
Change Report Details from the menu.
Display the component name as barcode
► The option "Display the line-specific stock location"
can be enabled/disabled here. Enable this option to
add the stock location information to the setup report.
► Confirm this with OK.
► In the setup report, you will see that an additional line
has been included, with the line-specific stock loca-
tion information for the component concerned.
► The option "Display the component name as bar-
code" can be enabled/disabled here. Enable this op-
tion to add the component barcodes to the setup
report. Confirm this with OK.
⇨ In the setup report, you will see that an additional line
has been included, with the component name bar-
code for the component concerned.
Working with the Setup Center Application
Setup Verification for Partial Setups Download Partial Setups
132 User Guide SIPLACE Setup Center 5.1
Display comment
Display the component image
7.9 Setup Verification for Partial Setups
The starting point is the compilation of a production schedule with the help of the SIPLACE Line Control
GUI. This production schedule enables you to combine multiple recipes with the same setup (cluster set-
up).
With SIPLACE Pro, selected recipes in a production schedule can be defined at the stations in a line,
which only require part of the joint setup for successful production.
Setup Center detects the selected recipes during downloading and automatically requests setup verifi-
cation of the required partial setup. If no recipe has been selected for downloading, setup verification will
be performed for the entire setup.
The following chapter shows how to use partial setups and explains their handling limits.
7.9.1 Download Partial Setups
SIPLACE Pro enables you to download partial setups. The download of partial setups can be enabled
at Configuration -> Download -> Partial Setup. The setups which are sent to the stations only contain
those components needed for the selected recipe. This recipe selection can be performed manually or
it automatically relates to the predefined recipe.

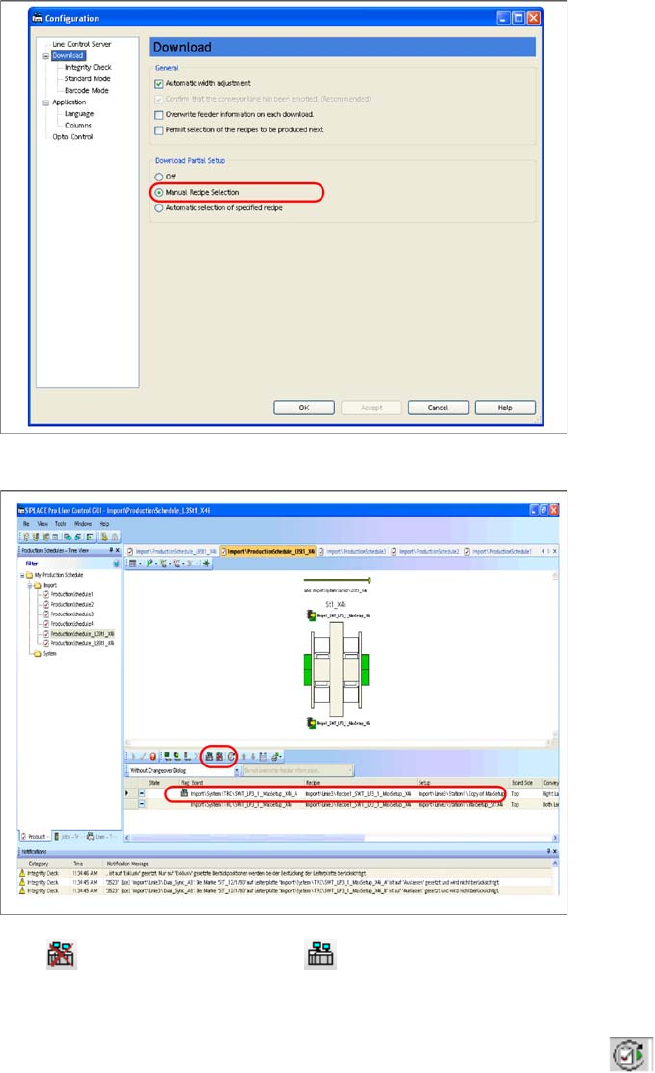

The following diagram shows the configuration dialog in the SIPLACE Line Control GUI :
Prerequisite: Comments about the component con-
cerned must already be present in SIPLACE Pro.

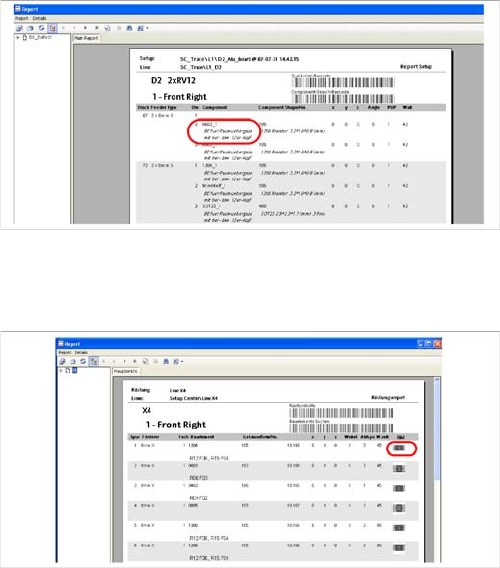

► The option "Display comment" can be enabled/disa-
bled here. Enable this option to add additional com-
ments about the components to the setup report.
Confirm this with OK.
⇨ In the setup report, you will see that an additional line
has been included, with an additional comment for
the component concerned.
► The option "Display the component image" can be
enabled/disabled here. Enable this option to add the
component diagrams to the setup report. Confirm this
with OK.
⇨ In the setup report, you will see that an additional line
has been included, with a component image for the
component concerned.
Working with the Setup Center Application
Download Partial Setups Setup Verification for Partial Setups
User Guide SIPLACE Setup Center 5.1 133
The following diagram shows a production schedule with a selected recipe for a partial setup:
With you can enable and with you can disable the download for the marked line/recipe. The
SIPLACE Line Control Server and Setup Center calculate the required partial setup for all selected rec-
ipes, during downloading.
These pictograms are only possible for manual recipe selection. With you can switch between the
various recipes to be produced (job or production schedule).
