Working with the Setup Center Application
Offline Setup Verification Setup Verification for Partial Setups
User Guide SIPLACE Setup Center 5.1 135

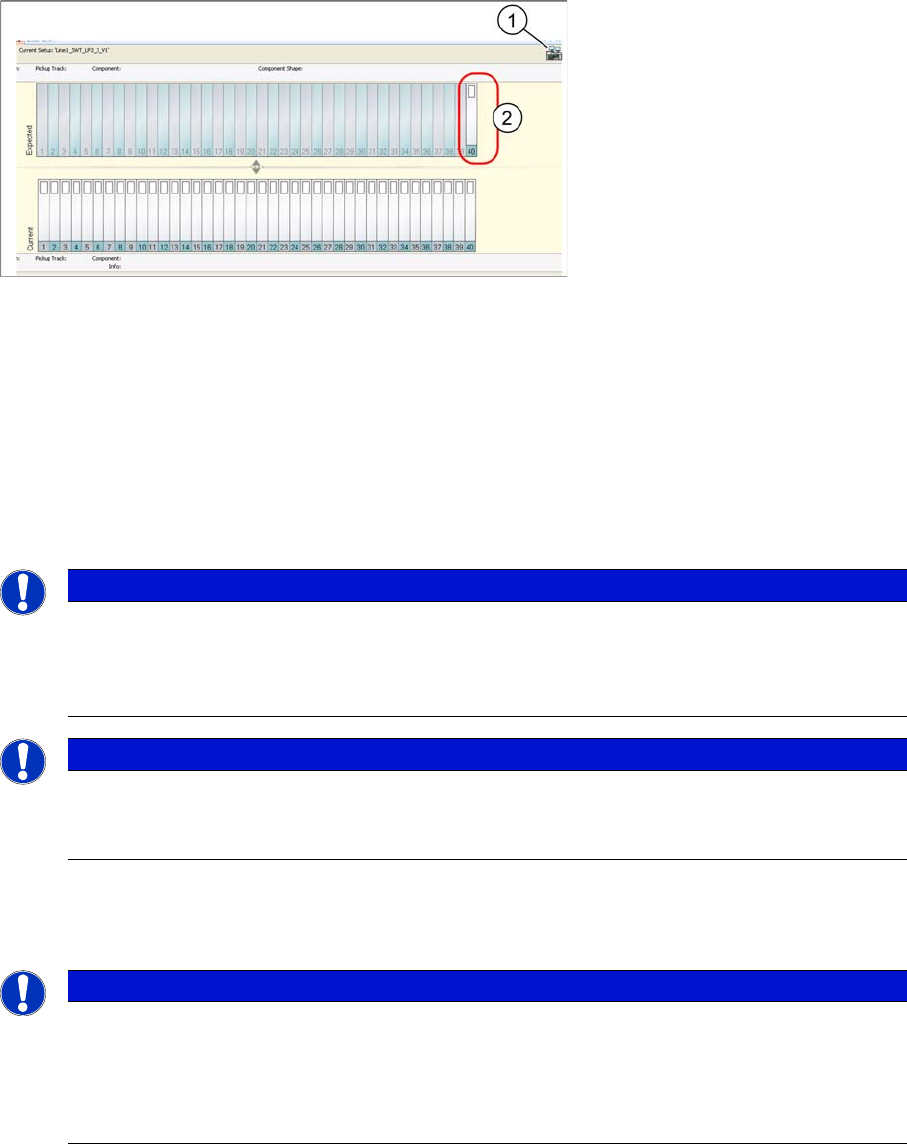

The feeders with components which are not needed in the current partial setup are shown as transparent
on the Setup Center user interface (2). In other words, although these are included in the cluster setup,
they are not needed for the production of this recipe.
7.9.4 Offline Setup Verification
A partial setup can also be defined in the pre-setup area with the help of the SIPLACE Line Control GUI.
The procedure is the same as that for Online setup verification.
► On the SIPLACE Line Control GUI, mark those recipes which you want to verify in the pre-setup ar-
ea, as a partial setup.
► After opening the corresponding setup with the quick start barcode on the Setup Center user inter-
face for offline setup verification, only those tracks needed for the partial setup will be active and
available for verification.
NOTICE
The Line control GUI supports offline mode
The Line Control GUI also supports the offline mode (without Line Control Server connection).
This enables you to also edit a production schedule in the pre-setup area, via the Line Control
GUI.
NOTICE
Recipe data for a cluster setup
Make sure that any previously marked recipe data in a cluster setup, which you have already
sent to the machine, are now no longer marked!
NOTICE
Partial setup in offline area
If one or more recipes are marked for the offline area, in the Line Control GUI and if the corre-
sponding setup is opened for checking in Setup Center, using a quick start barcode, only those
components needed for the marked recipes will be made available for checking. Marked reci-
pes which are in a different setup will not be taken into account.
Working with the Setup Center Application
Setup Verification for Partial Setups Synchronizing Frozen Tracks
136 User Guide SIPLACE Setup Center 5.1
Offline setup report

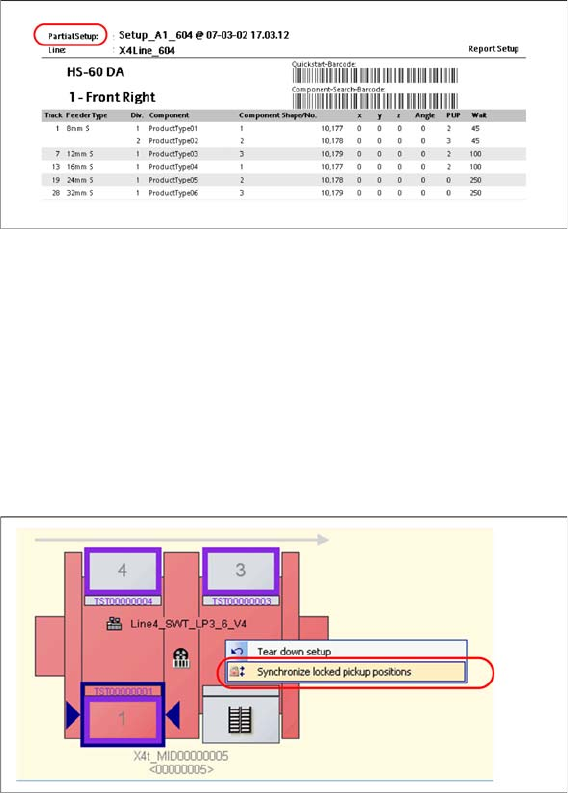

The following diagram shows an example of a setup report printout for a partial setup:
The setup report shows that a partial setup is concerned. Those tracks which are not included in the par-
tial setup will not be shown on the printed report.
7.9.5 Synchronizing Frozen Tracks
In rare cases, tracks may be locked by Setup Center at a station, although this locked status is no longer
available in Setup Center, preventing automatic release of the tracks.
In this case, the locks can be synchronized with the station.
► Right-click with the mouse on the relevant station to open the context menu and select the function
Synchronize locked pickup positions.
7.9.6 Limits and Sources of Error
▪ Recipes which have been selected for a partial setup contain various different setups.
When you open a production schedule for setup verification, you will see a message informing you
that different setups are contained in the schedule.
▪ The selected production schedule already contains a setup which has been selected for online setup
verification. You will see a message, informing you that this setup is already open.
▪ Although various different recipes from a cluster setup have been selected as a partial setup on the
SIPLACE Line Control GUI, Setup Center will show the complete setup for verification.
Check at the Line Control GUI, whether you have marked other recipes from this setup as partial
setups in other production schedules. In this case, deselect these.
Working with the Setup Center Application
Automatic Check of the Firmware Version Firmware
User Guide SIPLACE Setup Center 5.1 137
7.10 Firmware
7.10.1 Automatic Check of the Firmware Version
Automatic Check of the Docking Stations
► Setup Center checks the firmware versions of the configured docking stations during start-up.
⇨ If an older firmware than currently required is detected, Setup Center issues a corresponding warn-
ing in the notifications window.
Automatic Check of X-Feeders/X-Adapters
► Setup Center checks the firmware versions of all X-feeders / X-adapters on the configured docking
stations during start-up.
⇨ If an older firmware than currently required is detected, Setup Center issues a corresponding warn-
ing in the notifications window.
7.10.2 Firmware Pool
► In the main menu, open Tools > Firmware Pool… and the Firmware Pool dialog box will open.
This view shows you the present firmware versions, you can add new firmware and delete firmware that
is no longer required.
Menu bar
Parameter Description
Add... Allows selecting the firmware files (*.bhx, *.hex) on the file system of
your computer or network.
Select the required file and the firmware is added to the list of avail-
able firmware versions. These can then be installed on the relevant
sub-systems.
