Working with the Setup Center Application Barcode Label Wizard Barcode Label Types 148 User Guide SIPLACE Setup Center 5.1 ► Select Add , to add a new machine ID to the lis t. ► If you mark the entry, the following setti…

100%1 / 196
Working with the Setup Center Application
Barcode Label Types Barcode Label Wizard
User Guide SIPLACE Setup Center 5.1 147
► Select Add, to add a new machine ID to the list.

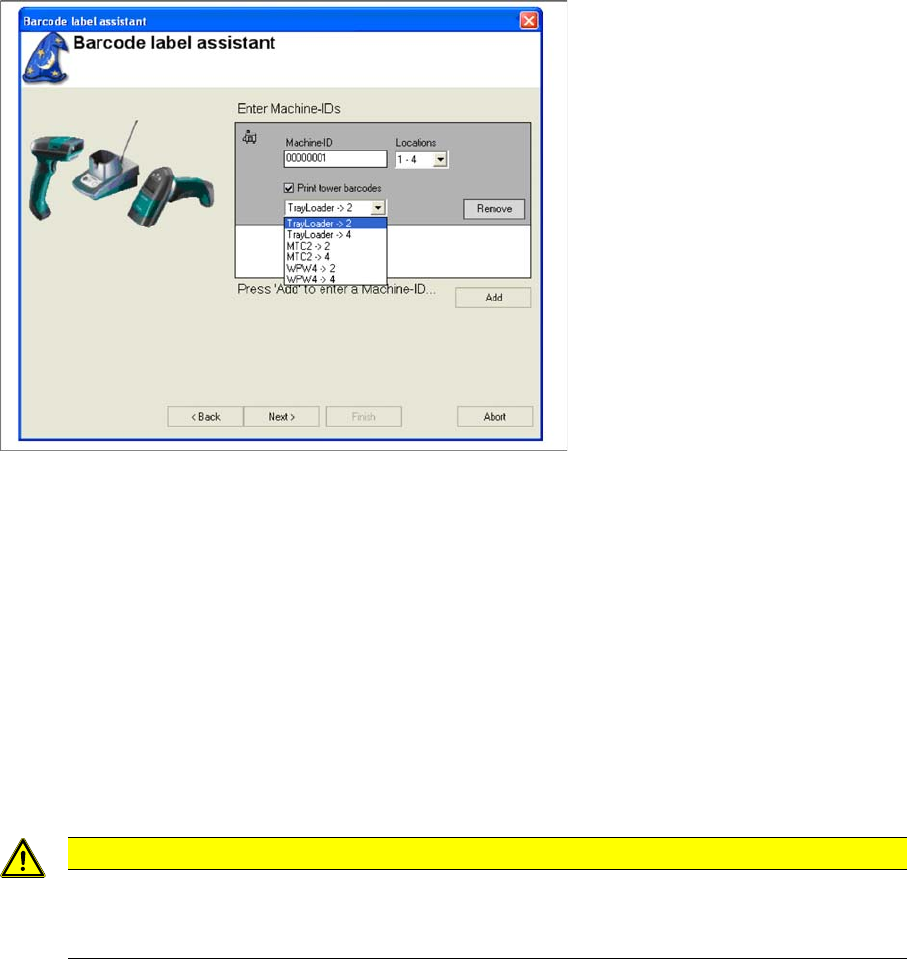

► If you mark the entry, the following settings will be shown and can be edited.
▪ Machine ID
Specify the required machine ID here. The machine ID needs to be unique for systems using Setup
Center.
▪ Locations
Select the correct location number system here for the corresponding machine. You will find the lo-
cation number on the right or left of the table on every SIPLACE machine.
▪ Print tower barcodes
Select this option if the machine is equipped with a waffle pack tray feeder which has no own track
ruler with barcodes (e.g. WPC) and still needs to be integrated into the setup verification.
► Select Remove, if you do not wish to print the barcode.
► Click on Next.
7.11.1.7 Online Feeder Kitting
The following dialog appears if barcode labels are required for starting the online component feeder kit-
ting.
CAUTION
Lost settings
These settings will be lost when you exit Setup Center. Setup Center does not support an in-
ventory management function.
Working with the Setup Center Application
Barcode Label Wizard Barcode Label Types
148 User Guide SIPLACE Setup Center 5.1
► Select Add, to add a new machine ID to the list.
► If you mark the entry, the following settings will be shown and can be edited.
▪ Machine ID
Specify the required machine ID here. The machine ID needs to be unique for systems using Setup
Center.
▪ Locations
Select the correct location number system here for the corresponding machine. You will find the lo-
cation number on the right or left of the table on every SIPLACE machine.
▪ Print tower barcodes
Select this option if the machine is equipped with a waffle pack tray feeder which has no own track
ruler with barcodes (e.g. WPC) and still needs to be integrated into the setup verification.
► Select Remove, if you do not wish to print the barcode.
► Click on Next.
7.11.1.8 UID Refill
Creates barcode labels with control barcodes for starting the refill with unique packaging unit ID.
The Print Template and Printer Selection is displayed. See "7.11.2 Print Template and Printer Selection"
[ ➙ 150].
► Click on Next.
7.11.1.9 Set Packaging Empty
Crates barcode labels with control barcodes to set a packaging unit to "empty". This is only possible with
a unique packaging unit ID.
The Print Template and Printer Selection is displayed. See "7.11.2 Print Template and Printer Selection"
[ ➙ 150].
► Click on Next.
CAUTION
Lost settings
These settings will be lost when you exit Setup Center. Setup Center does not support an in-
ventory management function.
Working with the Setup Center Application
Barcode Label Types Barcode Label Wizard
User Guide SIPLACE Setup Center 5.1 149
7.11.1.10 Set Packaging Consumed
Crates barcode labels with control barcodes to set a packaging unit to "consumed".
The Print Template and Printer Selection is displayed. See "7.11.2 Print Template and Printer Selection"
[ ➙ 150].
► Click on Next.

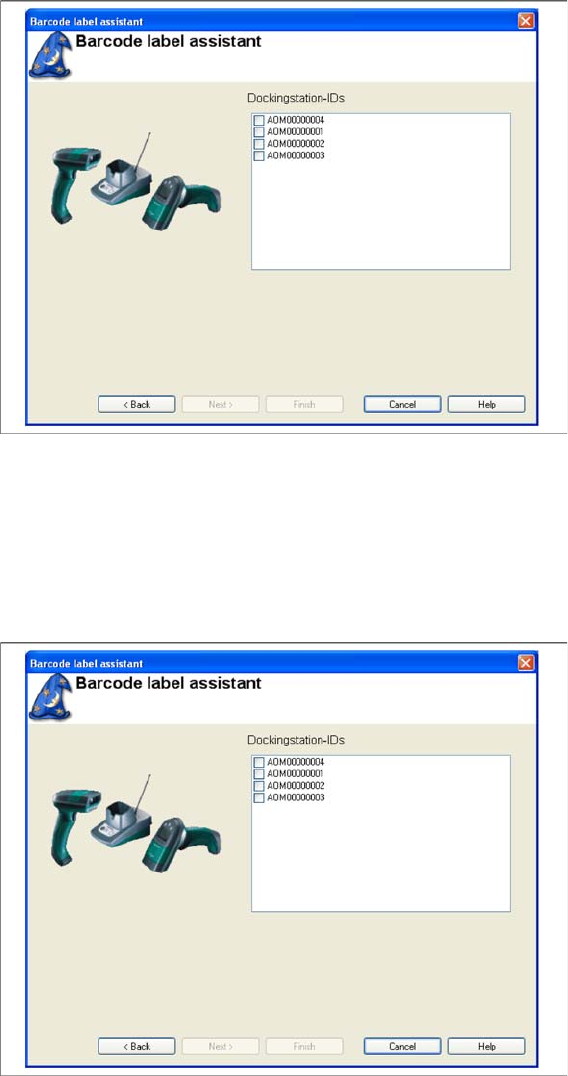

7.11.1.11 Docking Station IDs
The following dialog box appears if barcode labels are needed to unambiguously identify docking sta-
tions.
► Select the required docking stations from the present Docking station IDs.
► Click on Next.
7.11.1.12 Offline Feeder Kitting
The following dialog appears if barcode labels of control barcodes are required for starting the offline
component feeder kitting.
