Working with the Setup Center Application
Barcode Label Types Barcode Label Wizard
User Guide SIPLACE Setup Center 5.1 149
7.11.1.10 Set Packaging Consumed
Crates barcode labels with control barcodes to set a packaging unit to "consumed".
The Print Template and Printer Selection is displayed. See "7.11.2 Print Template and Printer Selection"
[ ➙ 150].
► Click on Next.
7.11.1.11 Docking Station IDs
The following dialog box appears if barcode labels are needed to unambiguously identify docking sta-
tions.
► Select the required docking stations from the present Docking station IDs.
► Click on Next.
7.11.1.12 Offline Feeder Kitting
The following dialog appears if barcode labels of control barcodes are required for starting the offline
component feeder kitting.
Working with the Setup Center Application
Barcode Label Wizard Print Template and Printer Selection
150 User Guide SIPLACE Setup Center 5.1
► Select the required docking stations from the present Docking station IDs on which component feed-
er kitting is to be performed.
► Click on Next.
7.11.2 Print Template and Printer Selection

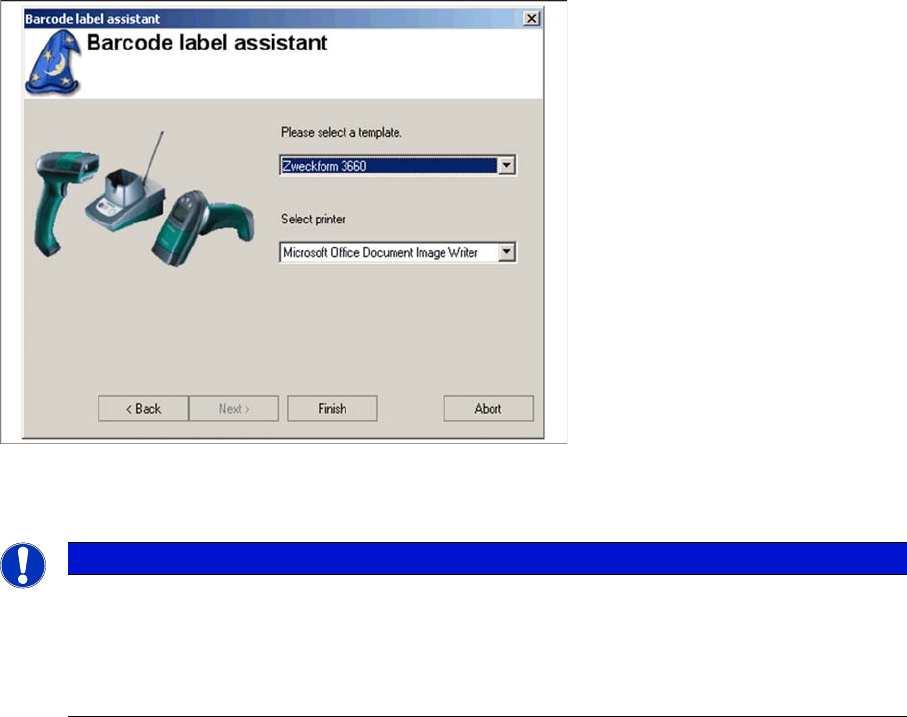

Once all selected dialogs have been completed, the following dialog box will be shown for selection of
the print template and printer.
► Select the required print template.
► Select the required printer.
7.11.3 Finish
After completing the print template and printer selection dialog, click on Finish.
A window is shown with the print preview for the barcodes. Check the barcode again here, before printing
out the barcode labels.
7.11.4 Attaching the Barcode Labels
The printed barcodes need to be attached in the correct positions.
▪ "Online setup verification"
The barcode labels are attached to the corresponding location at the station. The location code can
be found after the machine ID e.g. 00000011-1, 00000011-2, 00000011-3, 000000-4.
The barcode label should be easily accessible for the barcode scanner.
▪ Tower barcodes
See Online Setup Verification.
The tower barcodes for the WPC and the MTC1 must also be attached to the correct side of the waf-
fle pack tray feeder. The printout should show the tower levels as seen when the tray feeder is in the
station and viewed from the front.
NOTICE
Settings are saved
The settings for these barcode label templates are stored in the file "BarcodelabelsPrintout-
Styles.xml" in the installation directory (as a default, this is: C:\Programs\SIPLACE\SIPLACE
Setup Center). If your settings result in illegible printouts, change the settings here and save a
copy of the file.
Working with the Setup Center Application
Attaching the Barcode Labels Entering the Barcode Manually
User Guide SIPLACE Setup Center 5.1 151
▪ User Barcodes
It is recommended that the SIPLACE Setup Center users always have their user barcodes with them
(for login at the scanner, repeat login after automatic logout by SIPLACE Setup Center, …).
For example, the barcodes could be attached to the back of the company ID card.
▪ Changeover table barcodes
The barcode labels are attached to an easily accessible part of the relevant changeover tables.
▪ Machine IDs
See online setup verification.
▪ Shift Change Verification
See online setup verification.
7.12 Entering the Barcode Manually
Packaging unit barcodes can also be entered manually in Setup Center. This is especially helpful, if one
of the packaging unit barcodes can not be read with the scanner, due to bad quality of the printout or two
barcodes being stuck together.
Starting manual entry

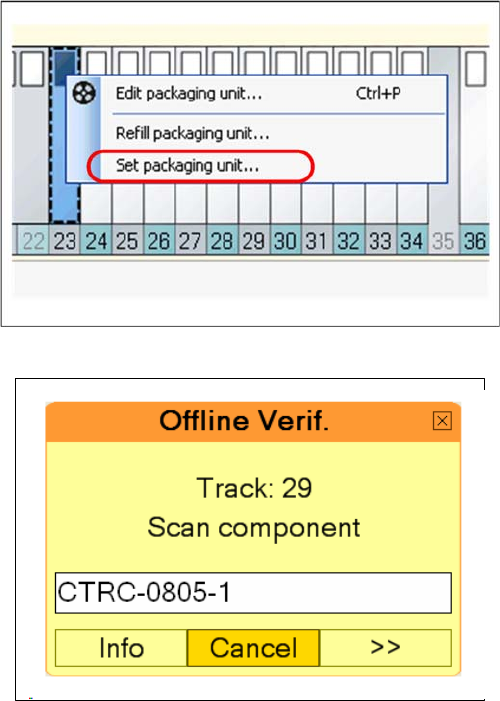

Click the right mouse button on a track. The Set packag-
ing unit menu is displayed. Either press Enter or click the
left mouse button to open the barcode editor.
The window is similar to the RF scanner display.
You always have to enter the complete barcode.
Click on Enter to confirm each entry.
