Setup Verification in Practical Cases Offline Setup Verification with Waffle Pack Tray Feeders Possibl e Errors During Setup Verification User Guide SIPLACE Setup Center 5.1 16 5 8.5.4 Offline Setup Verification with Waf…

Setup Verification in Practical Cases

Setup Verification with Waffle Pack Tray Feeders Spare Tracks on the MTC

164 User Guide SIPLACE Setup Center 5.1

Alternative

Instead of using the machine ID barcode, you can also directly attach the "Refill" control barcode. After

the barcode has been scanned in, Step 4 will begin.

8.5.3 Spare Tracks on the MTC

SIPLACE Pro Desk

The functions for configuring spare tracks in the MTC/WPC need to be activated in the SIPLACE Pro

Desk Setup Editor.

► Start SIPLACE Pro Desk.

► Open the Setup Editor.

► Select the tab for the relevant station.

► Go to the Setup Editor => Random Setup and select the option Arbitrary Level.

Setup Center

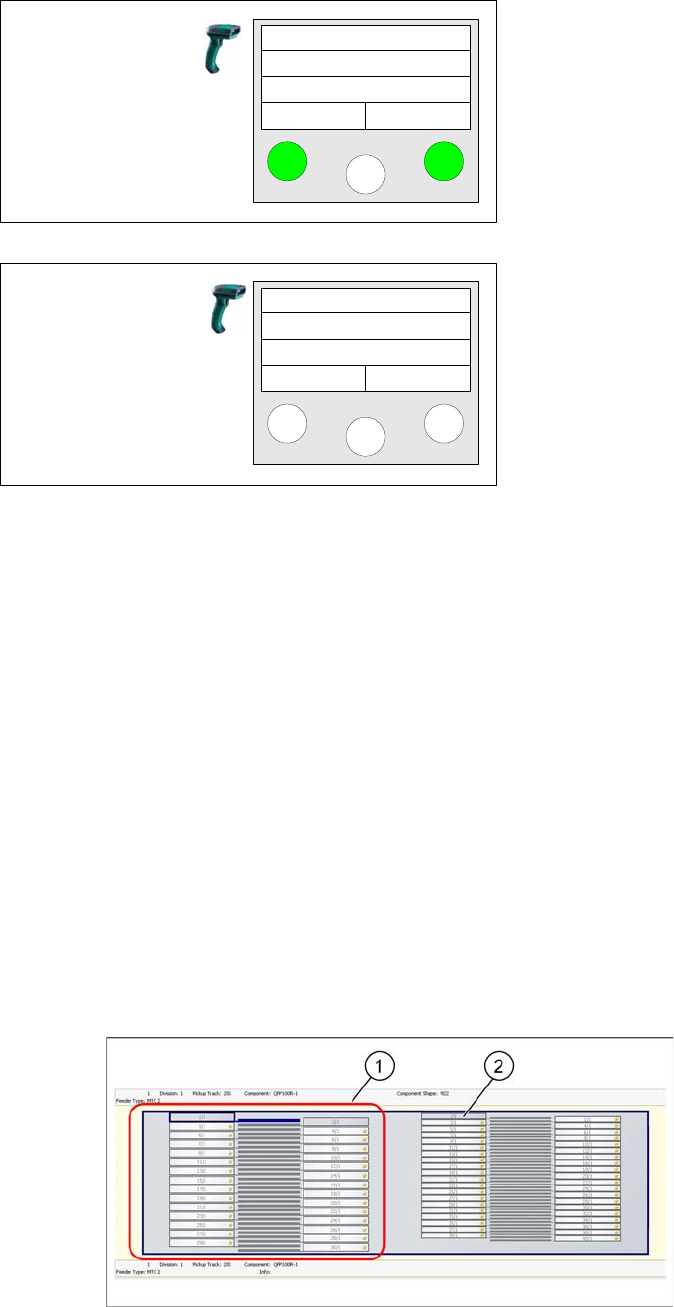

Levels marked with an asterisk (2) do not contain a component in the target setup. These levels can be

used as dynamic spare tracks.

After scanning, the data is transmitted to the machine,

Step 5c (optional)

Query for reordering packaging units.

Yes - Information for reordering is saved in the SC data-

base.

No – No information for reordering.

The query only appears if the Enable quantity correction

during refill option has been activated via

Extras Set

tings Common

Step 6

After the refill, the main menu appears on the reader.

If additional packaging units need to be refilled, the entire

procedure must be repeated.

Recorder

Component?

Yes No

Setup Center

Setup Verification in Practical Cases

Offline Setup Verification with Waffle Pack Tray Feeders Possible Errors During Setup Verification

User Guide SIPLACE Setup Center 5.1 165

8.5.4 Offline Setup Verification with Waffle Pack Tray Feeders

There is an option to verify locations with waffle pack tray feeders offline. The following settings are re-

quired for this.

► In the main menu open Extras > Settings; the Settings window will be opened.

► Select the category General and the Settings will be opened.

► Go to Offline setup verification settings and enable the option Verify tray changers.

The scanning procedure will then be the same as that used for S tables.

8.6 Possible Errors During Setup Verification

A loud error signal (warning) will draw your attention to errors which occur from incorrect station setups

or unintentional scanning of the wrong barcode. All errors need to be acknowledged by pressing one of

the barcode reader buttons.

The errors are color-coded in the application and marked with the relevant icon (1). The same occurs in

the Packaging Unit Editor (2). The Locks (3) tab will show more detailed information. The track at which

the error occurred will be marked in red. The stations at which the error occurred will also be marked red

in the line view.

Example: incorrect component refilled

8.7 Activating a Track

You can activate a deactivated track with the help of the reader.

This is necessary if a pickup error occurs at one of a station's tracks. Pickup errors can have a range of

causes e.g. faulty nozzles, components, incorrect station settings, maintenance work not performed etc.

If a station does stop, check the packaging unit on the track indicated at the station and correct if nec-

essary. You then need to reactivate the station. Follow the next steps.

Setup Verification in Practical Cases

Activating a Track Using the Reader (Steps with Machine ID)

166 User Guide SIPLACE Setup Center 5.1

8.7.1 Using the Reader (Steps with Machine ID)

Step 1 (optional)

Scan in the the User if the User registration at the reader

required option has been activated via

Extras Settings

Reader

Step 2

Scan in the Machine ID barcode of the location to be ver-

ified.

Step 3

Select the Refill function and click on Enter to confirm.

There is no separate function for Activate. You can also

start the function by scanning the barcode Refill.

Step 4

Scan the Track barcode.

Step 5

Press the right Active key.

NOTICE!

The "Active" button will not appear if the option "Activate

pickup position with verification" is enabled.

Setup Center

Tablecheck

Missing tracks

Refill

Scan track

Track: 55

Scan component

Info activ
