Setup Verification in Practical Cases Using the Scanner (Steps with UID) Re filling a Track for Online Setup Verification User Guide SIPLACE Setup Center 5.1 17 1 Step 1 (optional) Scan in the the Us er if the User regis…

Setup Verification in Practical Cases

Refilling a Track for Online Setup Verification Using the Scanner (Steps with UID)

170 User Guide SIPLACE Setup Center 5.1

Alternative

Instead of using the machine ID barcode, you can also directly attach the "Refill" control barcode. After

the barcode has been scanned in, Step 4 will begin.

8.8.3 Using the Scanner (Steps with UID)

The following section describes the step-by-step procedure with a unique packaging unit ID (Unique ID).

Step 5c (optional)

The quantity of the predecessor packaging unit can be

corrected. The barcode must contain the length informa-

tion in cm.

Change - shows the following display. The new length

can be scanned in.

OK - adopts the new value.

The query only appears if the Enable quantity correction

during refill option has been activated via the Setup Cent-

er menu Extras=> Settings =>Common=>

Settings of On

line Setup Verification

Step 5d (optional)

Entry of the new length can be aborted.

Step 5e (optional)

Query for reordering packaging units.

Yes - Information for reordering is saved in the SC data-

base.

No – No information for reordering.

The query only appears if the Enable quantity correction

during refill option has been activated via

Extras Set

tings Common

Step 6

After the refill, the main menu appears on the reader.

If additional packaging units need to be refilled, the entire

procedure must be repeated.

Recorder

Component?

Yes No

Setup Center

NOTICE

Unique ID

To enable refilling with a unique ID, go to Extras => Settings => Line => Domain-Wide Verifi-

cation Settings and enable the option UID refill enabled.

Setup Verification in Practical Cases

Using the Scanner (Steps with UID) Refilling a Track for Online Setup Verification

User Guide SIPLACE Setup Center 5.1 171

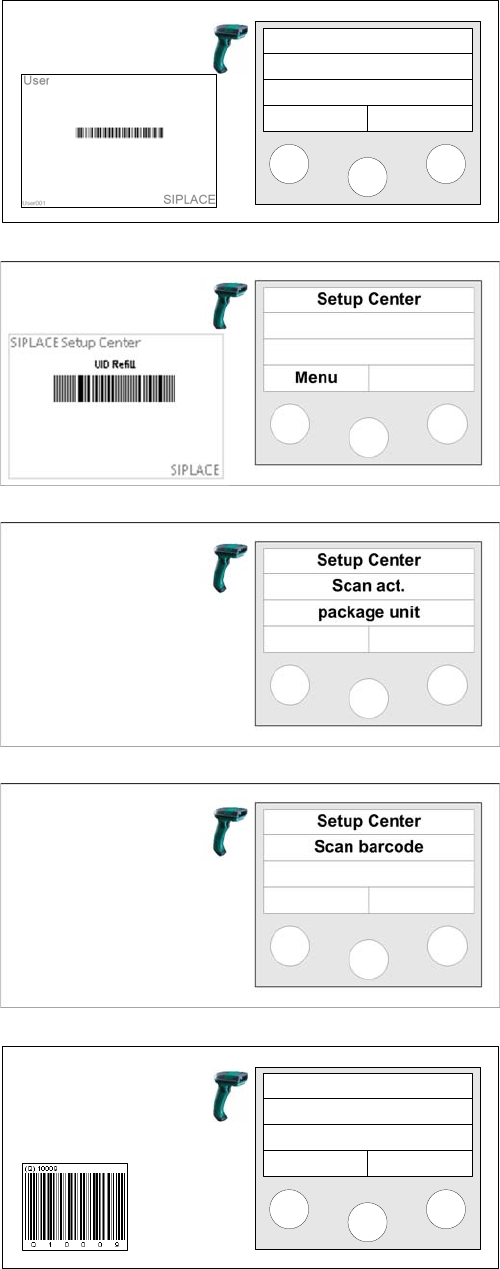

Step 1 (optional)

Scan in the the User if the User registration at the reader

required option has been activated via

Extras Settings

Security

Step 2

Scan the unique ID refill barcode.

Step 3

Scan the current unique ID for the packaging unit.

Step 4

Scan the unique ID for the next packaging unit.

Step 6b (optional)

If additional barcodes have been defined for the packag-

ing unit, they must be scanned consecutively.

Setup Center

Next barcode

Info >>

Setup Verification in Practical Cases

Refilling a Track for Offline Setup Verification Prerequisites

172 User Guide SIPLACE Setup Center 5.1

8.9 Refilling a Track for Offline Setup Verification

8.9.1 Prerequisites

The user works in offline mode.

8.9.2 Scanner Steps

Step 7

Refilling has finished once all barcodes have been

scanned in. The main menu will be shown again.

Setup Center

NOTICE

Up to 30 Packaging Units Allowed per Track.

If the set, maximum permissible packaging unit quantity is exceeded, the packaging unit last

scanned in will be locked and the pickup location will be disabled at the machine.

Step 1 (optional)

Scan in the the User if the User registration at the reader

required option has been activated via

Extras Settings

Reader

Step 2

Scan the "Refill" control barcode from the Setup report.

Step 3

Scan the Dockingstation barcode.

Setup Center

Scan DS

DID00000004

DID
