Setting System Components

Station Software Settings (from Version 60x) Component Level Indicator

56 User Guide SIPLACE Setup Center 5.1

Threshold Values

1. Component level almost empty / Issue warning:

▪ Buffer time < ... Minutes: If the current calculated time until a track runs empty drops below the indi-

cated number of minutes, a warning "Track Error" will be issued and the track will be highlighted in

yellow in the view.

▪ Supply < ... Remaining length in mm: If the remaining component tape (measured from the trailing

edge of the feeder) is shorter than the indicated value, a warning ("Track Error") will be issued and

the track will be highlighted in yellow in the view. Recommended: 2000 mm, minimum: 500 mm.

This option only functions if the "component pitch" has been correctly set in the SIPLACE Pro pro-

gramming system.

▪ Supply < ... % of container size: If the calculated number of components drops below the specified

percentage of the packaging unit size, a warning ("Track Error") will be issued and the track high-

lighted in yellow in the view.

This option is no longer present on the user interface of the station software 60X.

2. Component level empty / Set track to empty:

▪ Buffer time < ... Minutes: If the current calculated time until a track runs empty drops below the indi-

cated number of minutes, a message will be issued and the track will be deactivated and marked in

red in the view.

▪ Supply < ... Remaining length in mm: If the remaining component tape (measured from the trailing

edge of the feeder) is shorter than the indicated number of minutes, a message will be issued and

the track will be deactivated and marked in red in the view. Recommended: 500 mm, minimum: 500

mm.

This option only functions if the "component pitch" has been correctly set in the SIPLACE Pro pro-

gramming system.

▪ Supply < ... % of container size: If the calculated number of components drops below the specified

percentage of the packaging unit size, a message will be issued, and the track will be deactivated

and highlighted in red in the view.

This option is no longer present on the user interface of the station software 60X.

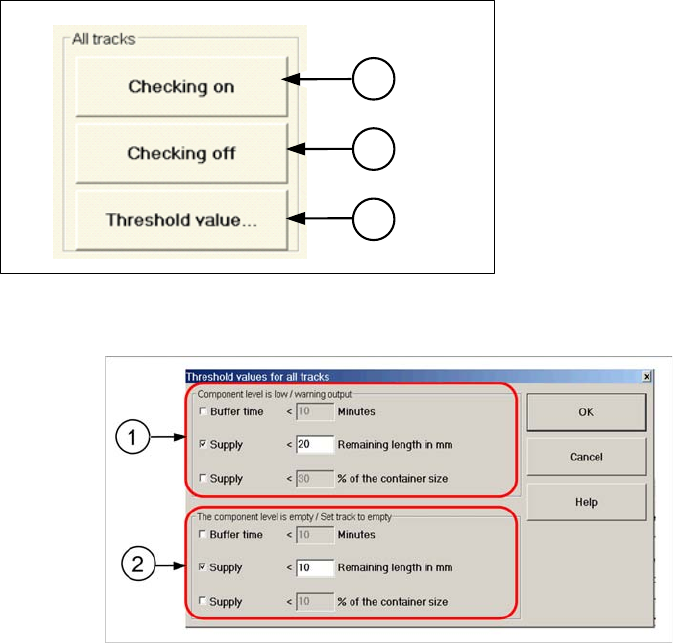

1. Checking on: the component level indicator is ena-

bled for all tracks. Entry in the column "Active" = x.

This option is no longer present on the user interface

of the station software 60X.

2. Checking off: The component level indicator is deac-

tivated for all tracks. Entry in the Active column = "-".

This option is no longer present on the user interface

of the station software 60X.

3. Threshold value...: Opens a dialog for entering the

values. A message will be issued in case threshold is

undercut.

Setting System Components

Component Level Indicator Station Software Settings (from Version 60x)

User Guide SIPLACE Setup Center 5.1 57

Ticked: The threshold is the same for all tracks and will be taken into account.

Not ticked: The threshold will not be included in the calculation.

Multiple thresholds can be selected. These are then connected to one another with a logical "OR"rela-

tion.

If no thresholds have been entered, the track runs idle without a message being issued.

4.1.2.2 Menu Matrix Tray Changer (MTC)

The functions for the Matrix Tray Changer (MTC) can be started with the MTC switch in the toolbar with

which you want to work:

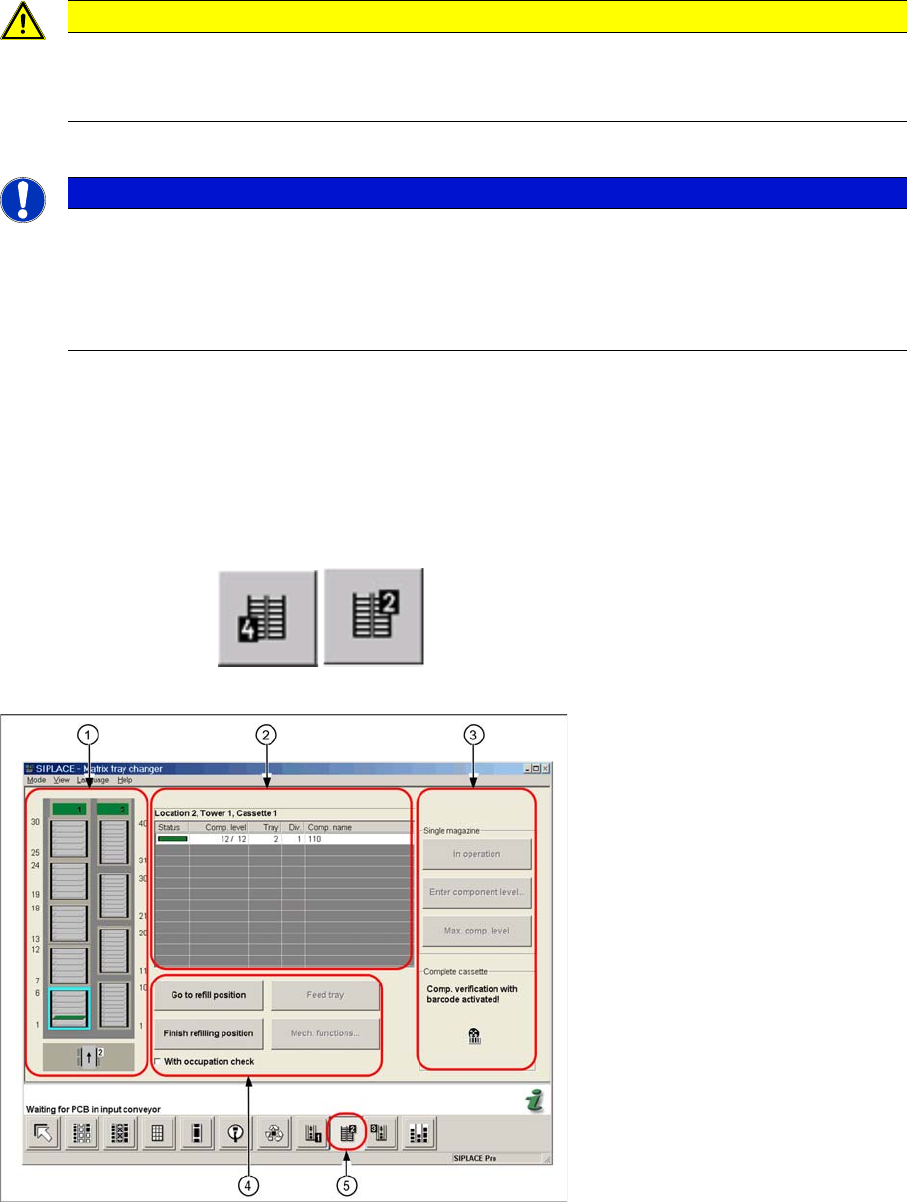

The figure below shows the component level indicator menu of the MTC.

Legend

1. Representation of the MTC in the user interface

2. Component level indicator view of all verified levels in a selected cassette

3. Switches and component level indicator view for a single magazine or a whole cassette.

4. Switch for refill position of magazines

5. Button for the component level indicator of the MTC

CAUTION

Component level indicator in combination with setup verification

The component level indicator in connection with setup verification should always be run with

activated stop thresholds.

NOTICE

Component level indicator can be deactivated for individual tracks

If you want to be able to disable the component level indicator for individual tracks, activate the

option "'Running tracks empty' is permitted" on the product CD for forced verification and the

component level indicator. This gives you the possibility of intentionally running individual tracks

empty.

Setting System Components

Station Software Settings (from Version 60x) Component Level Indicator

58 User Guide SIPLACE Setup Center 5.1

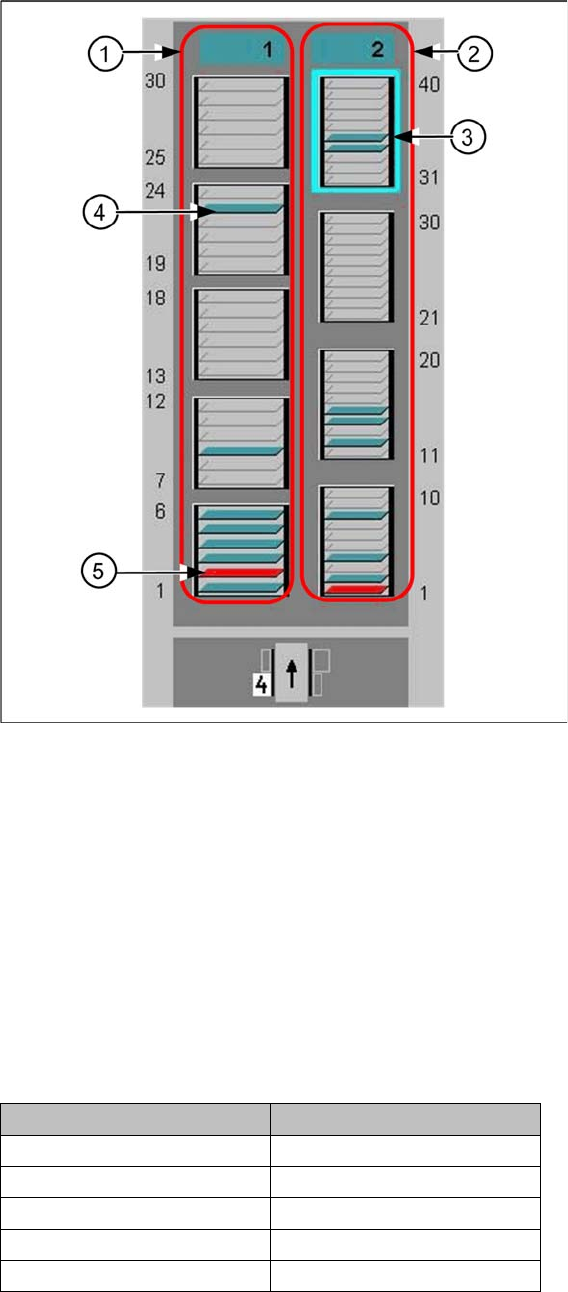

Representation and Numbering of the Trays

Legend

1. Tower 1

2. Tower 2

3. Selected Cassette

4. This tray is occupied

5. This tray is out of operation

Color coding of the tray symbol in the graphic:

▪ Gray: Tray is not available in the setup.

▪ Green: Tray is ready for operation.

▪ Red: Tray is out of operation

The trays are numbered as follows:

Color coding of the tower symbol in the graphic

Tower 1 Tower 2

Cassette 5: 25 - 30 --

Cassette 4: 19 - 24 Cassette 4: 31 - 40

Cassette 3: 13 - 18 Cassette 3: 21 - 30

Cassette 2: 7- 12 Cassette 2: 11 - 20

Cassette 1: 1 - 6 Cassette 1: 1 - 10
