Setting System Components Component Level Indicator Station Software Settings (from Version 60x) User Guide SIPLACE Setup Center 5.1 61 Single Magazine Buttons for correcting the component levels: 1. In operation / out o…
Setting System Components
Station Software Settings (from Version 60x) Component Level Indicator
60 User Guide SIPLACE Setup Center 5.1
Color coding of the magazines in the status table:
Legend
1. Magazine is empty, out of operation
2. Magazine is not empty, but has been deactivated either by the machine or by the operator (e.g.,
wrong component in magazine).
3. Magazine is in operation and is full.
4. Magazine is in operation and 25 % full.
5. Magazine is in operation and 66 % full.
Selected Cassette
1. Go to refill position
Moves the selected tower into the refill position so that the selected cassettes can be replaced com-
pletely.
No components can be picked up from this tower.
2. Finish refill position
Moves the entire tower back into the processing position. Components can be picked up again.
3. With occupancy check
–Ticked:
The existing tray carrier is compared to the tray carrier specified in the setup.
– Not ticked:
The occupancy check is disabled.
4. Feed tray
Moves the selected level into the processing position.
5. Mech. functions...
Opens a dialog box in which the various functions can be started: Carrying out a reference run, mov-
ing the MTC to the transport position, feeding the tray.
Setting System Components
Component Level Indicator Station Software Settings (from Version 60x)
User Guide SIPLACE Setup Center 5.1 61

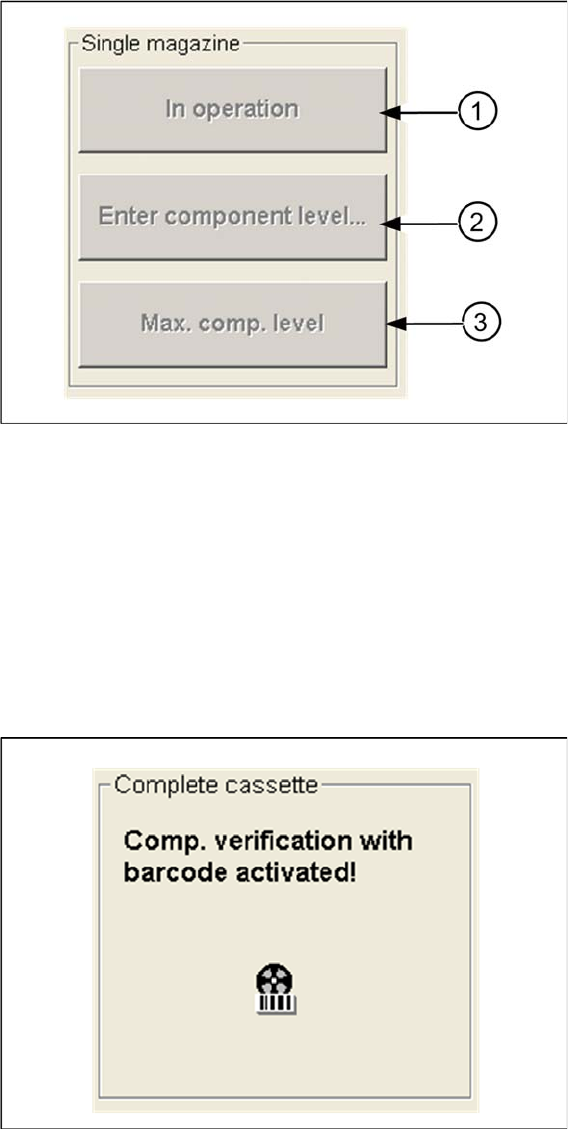

Single Magazine
Buttons for correcting the component levels:
1. In operation / out of operation
Depending on the state of the selected tray, it can now be enabled for pickup or disabled.
2. Enter component level...
Opens a dialog box, in which you can specify the number of components for the selected tray.
3. Max. comp. level
The maximum number of components is entered as the current component level and the tray is taken
back into operation.
Complete Cassette
On the MTC display you can see whether the system is working with setup verification or not.
Buttons for correcting the component levels:
Setting System Components
Station Software Settings (from Version 70x) Setup Verification at the Station
62 User Guide SIPLACE Setup Center 5.1
1. In operation / out of operation
Depending on the state of the selected cassette, you can now enable all cassette trays for pickup or
disable them.
2. Max. comp. level
The maximum number of components is entered as the current component level for all trays in the
cassette and the all cassette trays are then taken back into operation.
4.2 Station Software Settings (from Version 70x)
4.2.1 Setup Verification at the Station
The main view of the station shows whether you are working in forced setup verification mode. In this
case the machine blocks tracks used in the product until setup verification data from SIPLACE Setup
Center have been received.
Station software - main view
1. Setup verification is switched on and at least one track is being monitored.
NOTICE
For more detailed information, refer to the station software Online Help.
This section describes the key settings and functions in the station software in conjunction with
Setup Center e.g. filling levels and refilling. For a complete and detailed description, refer to the
station software Online Help.
