Barcode Practical Example Barcode Labels User Guide SIPLACE Setup Center 5.1 87 If a p ackaging unit is sca nned-in fo r the first time, the unique barcode, the co mponent barcode and the quantity barcode must be scanned…

Barcode

Barcode Labels Practical Example

86 User Guide SIPLACE Setup Center 5.1

5.1.3.4 Unique Barcodes (as Single Fragment)

If the packaging units to be used have a unique barcode, these can then be processed in Setup Center.

You need to add another barcode with the fragment type UniqueID.

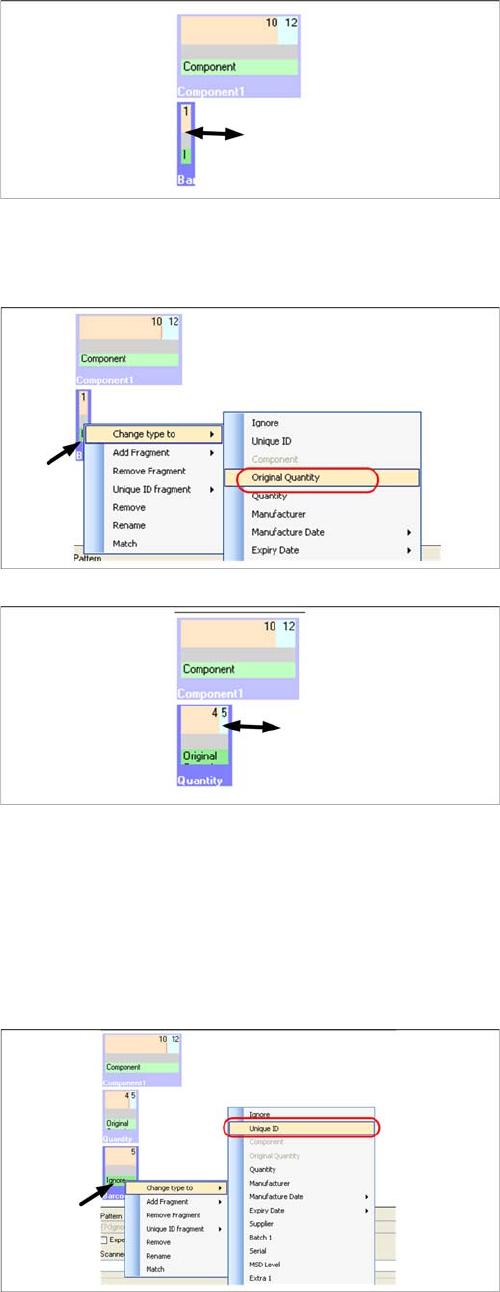

Step 2

A barcode with fragment type Ignore is created automat-

ically. This fragment type will not be changed, since all

quantity barcodes start with the character "Q" (e.g.

10000) and this character should not be evaluated any

further.

▪ Move the mouse to the right-hand edge and then

right-click with the mouse and hold.

▪ With the right mouse button pressed down, set the

length to 1 character.

Step 3

The new fragment type OriginalQuantity is now added.

▪ Right-click with the mouse in the green field.

▪ Go to Add fragment: and select the fragment type

OriginalQuantity.

Step 4

The quantities are between 1000 and 20000, meaning

that the fragment length is between 4 and 5 characters.

The barcode name can also be changed.

▪ Move the mouse to the right-hand edge, then right-

click and hold.

▪ With the right mouse button pressed down, set the

length to 4 to 5 characters.

▪ Double-click on the blue field. Now enter the required

name.

Step 1

▪ Right-click with the mouse in in the white field. The

Add barcode context menu opens.

▪ Right-click with the mouse in the green field.

▪ Go to Change type to: and select the fragment type

Unique ID.

Barcode

Practical Example Barcode Labels

User Guide SIPLACE Setup Center 5.1 87

If a packaging unit is scanned-in for the first time, the unique barcode, the component barcode and the

quantity barcode must be scanned. At the same time, a data set will be created in the Setup Center da-

tabase. This remains in the database, even after tear down. If this packaging unit is used again at a later

date, you will only need to scan in the unique barcode.

5.1.3.5 Unique Barcode (as Multiple Fragments)

If the packaging units to be processed have no explicit unique barcode but can be clearly identified by

looking at multiple fragments (e.g. supplier and serial), these can then be processed in Setup Center.

You need to mark the supplier and serial fragments accordingly.

Step 2

The unique packaging unit barcode has 8 characters.

▪ Move the mouse to the right-hand edge and then

right-click and hold.

▪ With the right mouse button pressed down, set the

length to 8 characters.

▪ Double-click in the blue field. Now enter the required

name.

Step 3

Next, you need to shift this barcode to position 1.

Step 1

▪Simply right-click with the mouse in the green Suppli-

er field to open the Unique ID Fragment context

menu.

▪ Select Set to define the "supplier" fragment as the

first part of the UniqueID.

Step 2

▪Simply right-click with the mouse in the green Serial

field to open the Unique ID Fragment context menu.

▪ Select Set to define the "serial" fragment as the sec-

ond part of the UniqueID.

Barcode

Barcode Labels Practical Example

88 User Guide SIPLACE Setup Center 5.1

When you scan in a packaging unit for the first time, all the barcodes defined in the label will need to be

scanned in. At the same time, a data set will be created in the Setup Center database. This remains in

the database, even after tear down. This remains in the database, even after tear down.

5.1.3.6 Combined Barcode

There are also barcodes which contain multiple information. Most 2D barcodes contain multiple informa-

tion.

A new barcode label is therefore added and one barcode with several fragment types is generated.

1. Add new barcode label. The overall barcode consists of the following fragment types:

2. Fragment Component for component.

3. Fragment QriginalQuantity for the quantity

4. Fragment Ignore hides the following 3 characters.

5. Fragment Extra1 for the date. Extra 1 is used as the date format does not comply with the predefined

format for dates.

The corresponding regular expression:

Step 3

The unique ID will now be formed from the two fragments

"supplier" and "serial", in the fixed order.

Optional – removing a UniqueID marker

▪Simply right-click with the mouse in the green Serial

field to open the Unique ID Fragment context menu.

▪ Select Remove to delete the UniqueID from the "se-

rial" fragment.

Component Barcode

TRC-0805-1 TRC-0805-1Q15000HH/03/05/2005
