4022 593 51915 Service Manual 08.05 AX-301/501, AX-3/5 A.159 A08.fm Chapter A8 SYSTEM 02-01 02-02 02-03 02-04 02-05 02-06 02-07 02-09 02-10 02-08 02-07
Chapter A8
Service Manual 4022 593 51915
A.158 AX-301/501, AX-3/5 08.05
SYSTEM
A08.fm

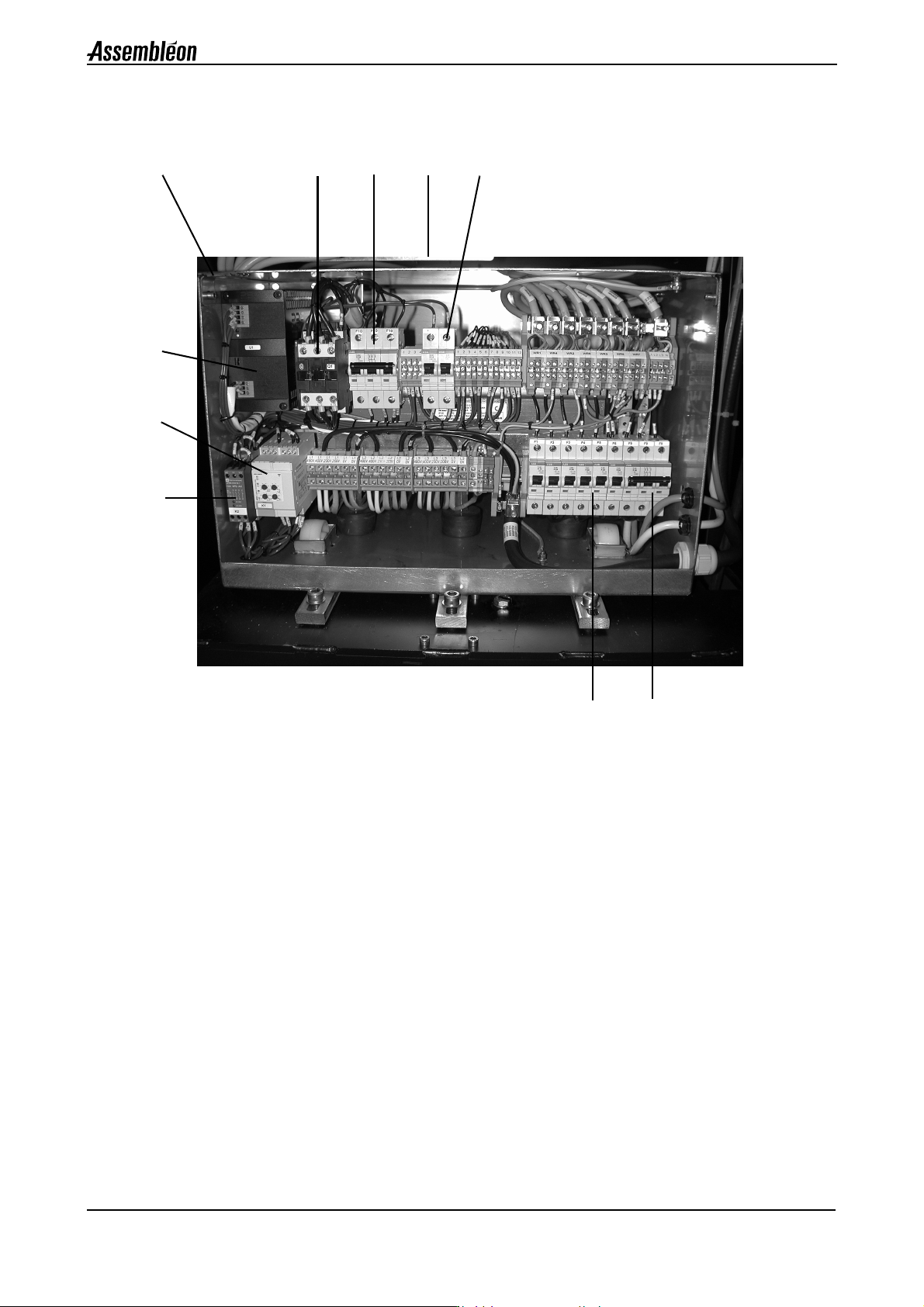

A8.3.4.2 Mains supply unit, PA 1120/03 and older, PA 1121/03 and older
Current spare parts list, see www.assembleon.com
Qty/ Mod
Priority indicator
Repair options
Replacement Instruction
Remarks
Item No.
Part of Item No.
Ordering Code
Description
02-01 9498-396-00090 Mains supply unit 1 Y - •
02-02 9498-396-00022 Monitor relay 3 phase 1 Y - •
02-03 9498-396-00029 Power supply 24V 1 Y - • Also in transport controller
02-04 9498-396-00027 Safety relay 24V 1 Y - • Also in transport controller
02-05 9498-396-00023 Circuit breaker 8A 1 ph 6 Y - •
02-06 9498-396-00024 Circuit breaker 4A 1 ph 2 Y - •
02-07 9498-396-00025 Circuit breaker 4A 3 ph 2 Y - •
02-08 9498-396-00028 Fan 1 Y - • On rear side of mains
supply unit.
02-09 9498-396-00111 Relay 1 Y - •
02-10 9498-396-00152 Diode 1 Y - • Behind components
4022 593 51915 Service Manual
08.05 AX-301/501, AX-3/5 A.159
A08.fm
Chapter A8
SYSTEM
02-01
02-02
02-03
02-04
02-05
02-06
02-07
02-09
02-10
02-08
02-07
Chapter A8
Service Manual 4022 593 51915
A.160 AX-301/501, AX-3/5 08.05
SYSTEM
A08.fm
A8.3.4.3 Transformer
The transformer exists in different technical versions:
• As fixed part of the mains supply unit, see A8.3.4.2 Mains supply unit, PA
1120/03 and older, PA 1121/03 and older.
• As a separate item, see following table:
Current spare parts list, see www.assembleon.com
Qty/ Mod
Priority indicator
Repair options
Replacement Instruction
Remarks
Item No.
Part of Item No.
Ordering Code
Description
01 - 9498-396-02414 A-Series transformer 1 - - - PA 1124/10
02 01 9498-396-00025 Circ breaker 400V/4A 3p 1 Y - -
03 01 9498-396-02410 Relay 24V DC 1 Y - -
04 01 9498-396-02412 Phase guard relay 1 Y - -
05 01 9498-396-02413 Power supply 24V DC 1A 1 Y - -
