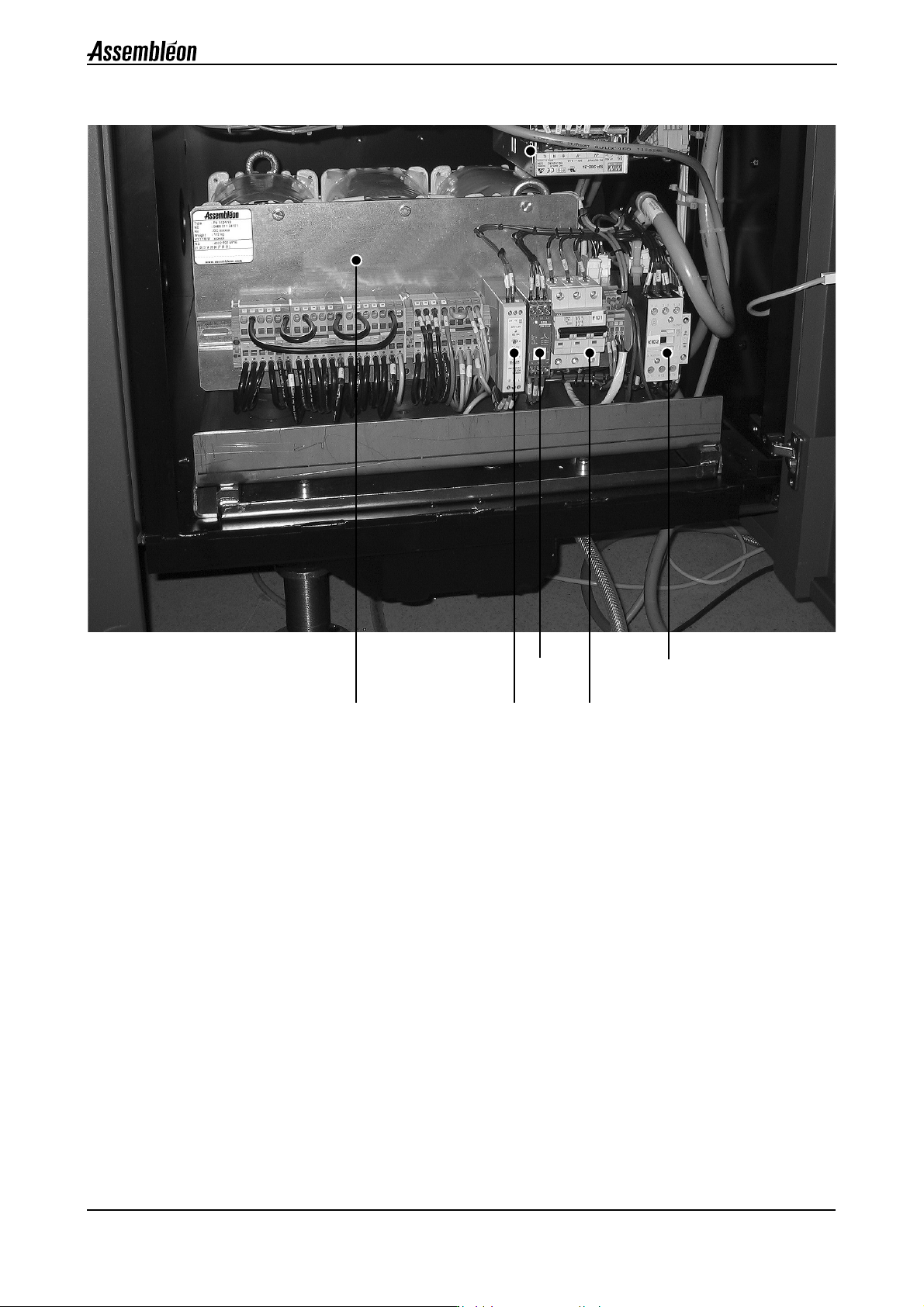

4022 593 51915 Service Manual
08.05 AX-301/501, AX-3/5 A.161
A08.fm
Chapter A8
SYSTEM
02-05
02-07
05
04 03
0201
Chapter A8
Service Manual 4022 593 51915
A.162 AX-301/501, AX-3/5 08.05
SYSTEM
A08.fm
A8.3.5 Air supply unit
Current spare parts list, see www.assembleon.com
Qty/ Mod
Priority indicator
Repair options
Replacement Instruction
Remarks
Item No.
Part of Item No.
Ordering Code
Description
03-01 9498-396-00062 Filter element 0.3 1 - - •
03-02 9498-396-00061 Digital pressure switch 1 Y - •
03-03 9498-396-00063 Filter element 0.01 0 - - •
03-04 9498-396-00064 Replace unit air dryer 0 - - • AX base air dryer (PA
1124/00) is optional in a
base from PA 1120/03
and PA 1121/03 onwards
(the air dryer is only
necessary for twin bulk
feeders).
4022 593 51915 Service Manual
08.05 AX-301/501, AX-3/5 A.163
A08.fm
Chapter A8
SYSTEM
03-01
03-02
03-03
03-04
