4022 593 51915 Service Manual
08.05 AX-301/501, AX-3/5 A.169
A08.fm
Chapter A8
SYSTEM
!"# $
%
&&
)
)) )
&&&&&&
%
*
)
)

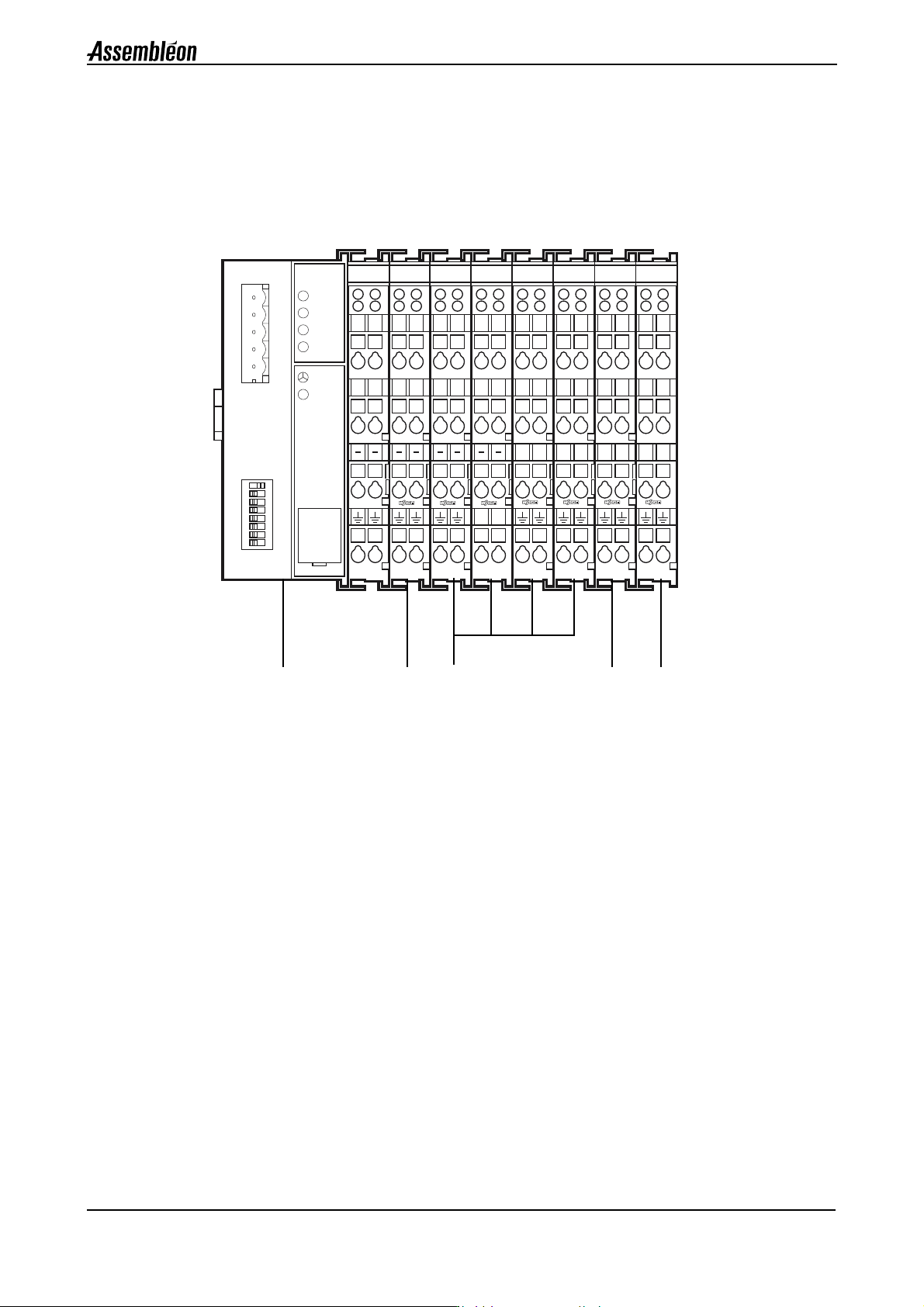

504 403 403 403 403 614 600
08-01
08-03
08-02
08-04 08-05
Chapter A8
Service Manual 4022 593 51915
A.170 AX-301/501, AX-3/5 08.05
SYSTEM
A08.fm
A8.3.9 Trolley lift
Trolley lifts exist in two different technical versions.
A8.3.9.1 Trolley lift 4022-510-8300x
Current spare parts list, see http://espares.assembleon.com
Qty/ Mod
Priority indicator
Repair options
Replacement Instruction
Remarks
Item No.
Part of Item No.
Ordering Code
Description
17-1 - 9498-396-00251 Trolley lift 1 - - • Complete trolley lift
17-2 17-1 9498-396-00252 Hose 1 Y - •
17-3 17-1 9498-396-00253 Micro switch 1 Y - •
17-4 17-1 9498-396-00254 Base interface board 1 Y - •
17-5 17-1 9498-396-00255 Flat cable 1 Y - •
17-6 17-1 9498-396-00256 Actuator 1 Y - •
17-7 17-1 9498-396-00257 Power cable 1 Y - •
17-8 17-1 9498-396-00258 Power supply 24 V 1 Y - •
17-9 17-1 9498-396-00259 Trolley lift controller 1 Y - •
17-10 17-1 9498-396-00260 Switch 1 Y - • Cable included
17-11 17-1 9498-396-00261 Safety interlock 1 Y - • Cable included
17-12 17-1 9498-396-00262 Safety interlock actuator 1 Y - •
17-13 17-1,
17-9
9498-396-00263 Fuse slow 4AT UL 2 Y - • One spare fuse is already
present on the trolley lift
controller.
17-14 17-1 9498-396-00123 Rubber ring 1 Y - • Also in trolley lift 4022-
510-7995x
17-15 17-1 9498-396-00122 O-ring 7.65x1.78 1 Y - • Also in trolley lift 4022-
510-7995x
4022 593 51915 Service Manual
08.05 AX-301/501, AX-3/5 A.171
A08.fm
Chapter A8
SYSTEM
17-01
17-03
17-02
17-04
17-05
17-06
17-08
17-09
17-10
17-07
17-13
17-14
17-15
17-11
17-12
