Chapter A8 Service Manual 4022 593 51915 A.186 AX-301/501, AX-3/5 08.05 SYSTEM A08.fm A8.3.14 Boar d support Current spare parts list, see www .assembleon.com Qty/ Mod Priority indicator Repair options Replacement Instru…
4022 593 51915 Service Manual
08.05 AX-301/501, AX-3/5 A.185
A08.fm
Chapter A8
SYSTEM
09-01
09-01
09-02
09-03
09-07
09-04
09-01
09-06
09-05
09-08
09-09
09-10
09-11
09-12
Chapter A8
Service Manual 4022 593 51915
A.186 AX-301/501, AX-3/5 08.05
SYSTEM
A08.fm

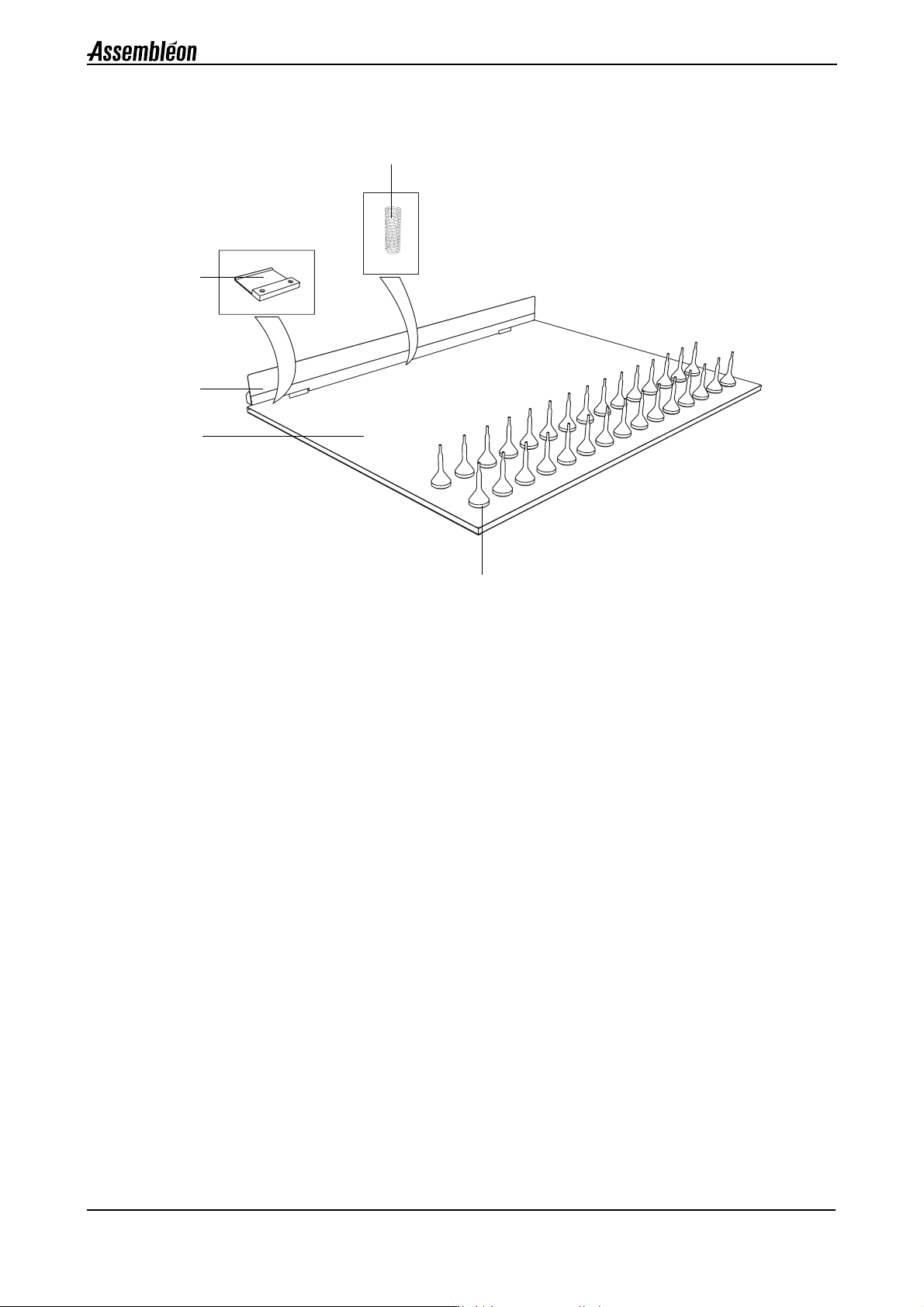

A8.3.14 Board support
Current spare parts list, see www.assembleon.com
Qty/ Mod
Priority indicator
Repair options
Replacement Instruction
Remarks
Item No.
Part of Item No.
Ordering Code
Description
11-01 9498-396-00036 AX-301/501, AX-3/5 Board
support strip
4/6 Y - - Equals PA 1122/30,
contains 1 assembled
support strip
11-02 9498-396-00030 Support plate 4/6 Y - -
11-03 9498-396-00069 Support pins - - - Ordering per piece
11-04 9498-396-00687 Support strip connect block 1 - - Part of 11-01
11-05 9498-396-00695 ESD Compr. spring 1 - - Part of 11-01
4022 593 51915 Service Manual
08.05 AX-301/501, AX-3/5 A.187
A08.fm
Chapter A8
SYSTEM
11-01
11-02
11-03
11-04
11-05
