Chapter A8 Service Manual 4022 593 51915 A.200 AX-301/501, AX-3/5 08.05 SYSTEM A08.fm Assortment kit containing: 9498-396-00045 V arious repairs 1. T emperature sensor Y - movement (5x). Sensor on placement robot. 2. O-r…
4022 593 51915 Service Manual
08.05 AX-301/501, AX-3/5 A.199
A08.fm
Chapter A8
SYSTEM

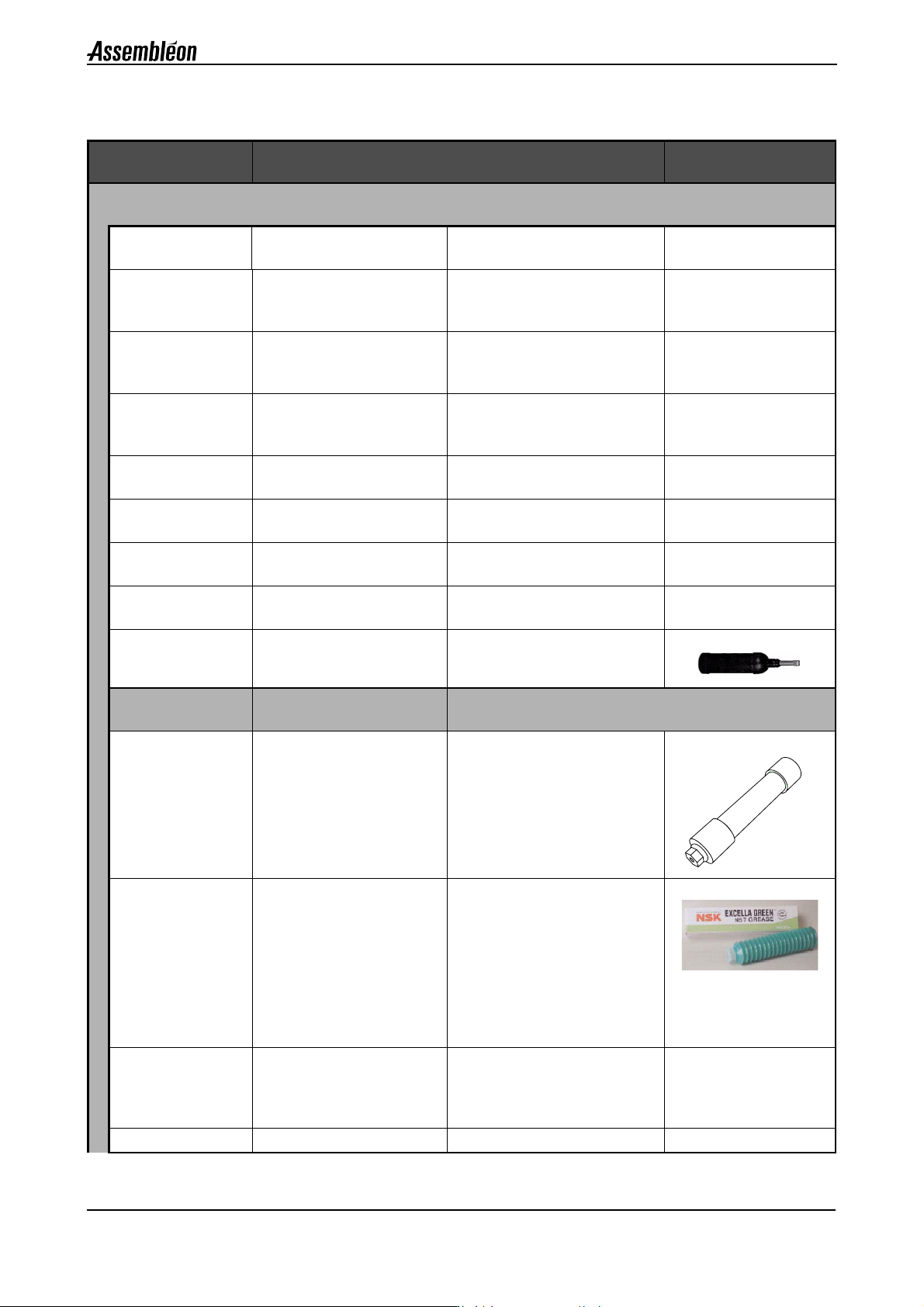

A8.4.3 First level spare parts kit (PA 2876/15)
Description Ordering code Application
Picture /
Spare part reference
AX 1st level spares kit
(PA 2876/15)
9498-396-00154
Front board clamp 9498-396-00032 See A8.3.12Transport beam,
item number 10-01
Guide strip of rear
board clamp
9498-396-00042 See A8.3.13Front and rear
transport rails, item number
09-05
Spring steel strip of rear
board clamp
9498-396-00038 See A8.3.13Front and rear
transport rails, item number
09-06
Protection strip (4x) 9498-396-00153 and
9498-396-00265
See A8.3.13Front and rear
transport rails, item number
09-04
Silencer 9498-396-00065 Part for air controller on robot See A8.3.16Robots, item
number 15-15
Valve (Picosol valve 2/2
NC)
9498-396-00066 Part for air controller on robot See A8.3.16Robots, item
number 15-16
Filter element 0.3 9498-396-00062 Part of air supply unit See A8.3.5Air supply unit,
item number 03-01
Filter element 0.01 9498-396-00063 Part of air supply unit See A8.3.5Air supply unit,
item number 03-03
Grease gun 9498-396-00394 To apply grease
Lubrication kit,
containing:
9498-396-00039 Lubrication (sufficient to lubricate the machine with maximum
configuration for 2 years, AX-501, 20 compact placement robots)
1. Grease nozzle and shaft Lubricating Z-spindles of transport lift
(The hexagon nozzle fits on
spindles)
2. Excella green (3 x 50 gram)
Small brush included
• Linear guide and spindle of
Y-direction of robot.
•Linear guide and spindle of
X-direction of transport
•Spindles of Z-direction.
Excella green NS7 grease
can be ordered separately
with ordering code:
9498-396-01552
3. THK Grease type AFE (1 x 70
gram) Small brush included.
Linear guides, X-direction of robot. THK AFE grease can be
ordered separately with
ordering code:
9498-396-01553
4. 4 Brushes Applying lubrication
Chapter A8
Service Manual 4022 593 51915
A.200 AX-301/501, AX-3/5 08.05
SYSTEM
A08.fm
Assortment kit
containing:
9498-396-00045 Various repairs
1. Temperature sensor Y-
movement (5x).
Sensor on placement robot.
2. O-ring 1,8 x 0,7 (20x). Air controller and placement head.
3. Placement head, release bolt
(6x).
Interface placement head.
4. Air nipple (5x). Interface placement head.
5. Retain ring ∅ 4 (5x). Interface placement head.
6. Cylindrical screw M4x8 zinc
coated (50x).
Robot.
7. Cylindrical screw M3x6 zinc
coated (50x).
Robot.
8. Cylindrical screw M4x8 stainless
steel (10x)
Spacer block run-in and run-out
transport belt motor (only on front
transport rail).
9. Torx screw M2.5 x 10 stainless
steel (20x)
Run-in and run-out transport belt
motor on front transport rail.
10. Torx screw M2.5 x 6 stainless
steel (20x)
Run-in and run-out transport belt
motor on rear transport rail.
11. Torx screw M3 x 8 stainless steel
(20x)
Rear board clamp.
12. Cylindrical M3 x 16 stainless
steel (20x)
Front board clamp.
13. Knurled screw M4X16 zinc
coated (2x)
Stopper.
14. Counter sunk screw M4X12
(10x)
Cover plate (between support plate
and Z-plate).
15. Bolt M8x 20 with nipple (20x) Bolts can be ordered separately with
ordering code 9498-396-02601 (for 10
pieces)
Optical kit, containing 9498-396-00043 Cleaning camera and laser
1. Optical tissue (100x) Cleaning BA-camera.
2. Chamois cloth double tip (100x) Cleaning component laser.
Double tips can be ordered
separately with ordering
code 9498-396-01105 (for
50 pieces)
3. Camelhair brush (1x) Cleaning component laser.
Description Ordering code Application
Picture /
Spare part reference
4022 593 51915 Service Manual
08.05 AX-301/501, AX-3/5 A.201
A08.fm
Chapter A8
SYSTEM
A8.4.4 Second level spare parts
Ordering Code Description Application Picture / Spare part reference
9498-396-00236 System controller See A8.3.7System controller, item
number 05-01
9498-396-00016 Motion controller See A8.3.10.3Transport controller 4022-
594-4200x, item number 06-09
9498-396-00267 EPC Placement controller, transport
controller
See A8.3.10.3Transport controller 4022-
594-4200x, item number 06-13,
See A8.3.15Placement controllers, item
number 14-07
9498-396-00268 EPC adaption kit Placement controller, transport
controller
To make EPC compatible with older types
of placement controller and transport
controllers (See SI-AX-016)
9498-396-00014 Ri-Ro servo driver board See A8.3.10.3Transport controller 4022-
594-4200x, item number 06-10
9498-396-00015 X-servo amplifier See A8.3.10.3Transport controller 4022-
594-4200x, item number 06-11
9498-396-00031 Z-servo amplifier See A8.3.10.3Transport controller 4022-
594-4200x, item number 06-12
9498-396-00129 AX placement controller See A8.3.15Placement controllers, item
number 14-01
9498-396-00081 Motion controller See A8.3.15Placement controllers, item
number 14-02
9498-396-00082 Motion amplifier See A8.3.15Placement controllers, item
number 14-03
9498-396-01929 AX compact placement robot See A8.3.16Robots, item number 15-02
9498-396-01930 AX standard placement robot See A8.3.16Robots, item number 15-04
9498-396-02025 Flexible cable guide See A8.3.16Robots, item number 15-10
9498-396-01931 Connection board See A8.3.16Robots, item number 15-11
9498-396-00142 Cable set See A8.3.16Robots, item number 5-12
9498-396-00047 Pneumatic controller See A8.3.16Robots, item number 15-13
9498-396-00138 AX placement head See A8.3.16Robots, item number 16-01
