Basic module
Page 7 / 9 23.11.2021
Basic module
Page 8 / 9 23.11.2021
Pos. Item no. Description Part marking
1 03052014-01 MACHINE BASE COMPL.
03059384-01 MACHINE BASE PRE-ASSEMBLED
03049702-01 MACHINE BASE CAST PART
PROCESSED
03048758-02 MACHINE BASE
03050597-01 WELDED PART/BASE PROCESSED
2 03002561-01 MACHINE BASE HF SPARE PART
3 03000890-02 MACHINE BASE SPARE PART
4 03015980-02 SCALE SIPLACE X-SERIES Y-AXIS *
5 03001227-02 GUIDE RAIL, SIZE 25 *
7 00845060-01 HEXAGON SOCKET HEAD CAP
SCREW M6 X 25-8.8
03028333-01 DRIVE ACCESSORIES / Y 2-GANTRY
R2 / 4I
03061105S01 MAGNETIC TRACK
MWA120-0064-25A
*
03061103S01 MAGNETIC TRACK
MWA120-0128-25A
*
03061100S01 MAGNETIC TRACK
MWA120-0512-25A
*
15 03031843-02 ASSEMBLY Y-BUFFER RIGHT AND
LEFT SIDE X-XS
16 03058796-01 BUFFER BLOCK Y-AXIS RIGHT +
LEFT
17 03051730-01 BUFFER COMPL.
18 00301040-01 ELASTOMER SPRING 25*10,5*50
(90 SHORE A)
SPARE PART
19 00305650-01 SLEEVE SPARE PART
03063282-01 FRICTION FOIL 13X78X0,1
20 03005574-02 REFLECTOR
21 03051730-01 BUFFER COMPL.
22 00301040-01 ELASTOMER SPRING 25*10,5*50
(90 SHORE A)
SPARE PART
23 00305650-01 SLEEVE SPARE PART
24 03032016-01 ASSEMBLY CENTRE STOP Y-AXIS X-
XS
*
25 03013460-01 STOP LEFT Y LINEAR MOTOR SPARE PART
26 03013461-01 STOP, RIGHT, Y-LINEAR MOTOR *
28 03003176-04 CALIBRATION JIG REST CPL. SPARE PART
Basic module
Page 9 / 9 23.11.2021
Pos. Item no. Description Part marking
29 03054312-01 REST FOR CALIBRATED PART, CPL.
30 03041008-01 MACHINE BASE
03041010-01 BASE TOP PART
03000889-01 BASE BOTTOM PART
03000936-01 DISK FOR MACHINE BASE
00845098-01 DIN912-M10 X 30-8.8
00845057-01 HEXAGON SOCKET HEAD CAP
SCREW M6 X 12-8.8
00315344-01 DIN 7349 - 6.4-ST

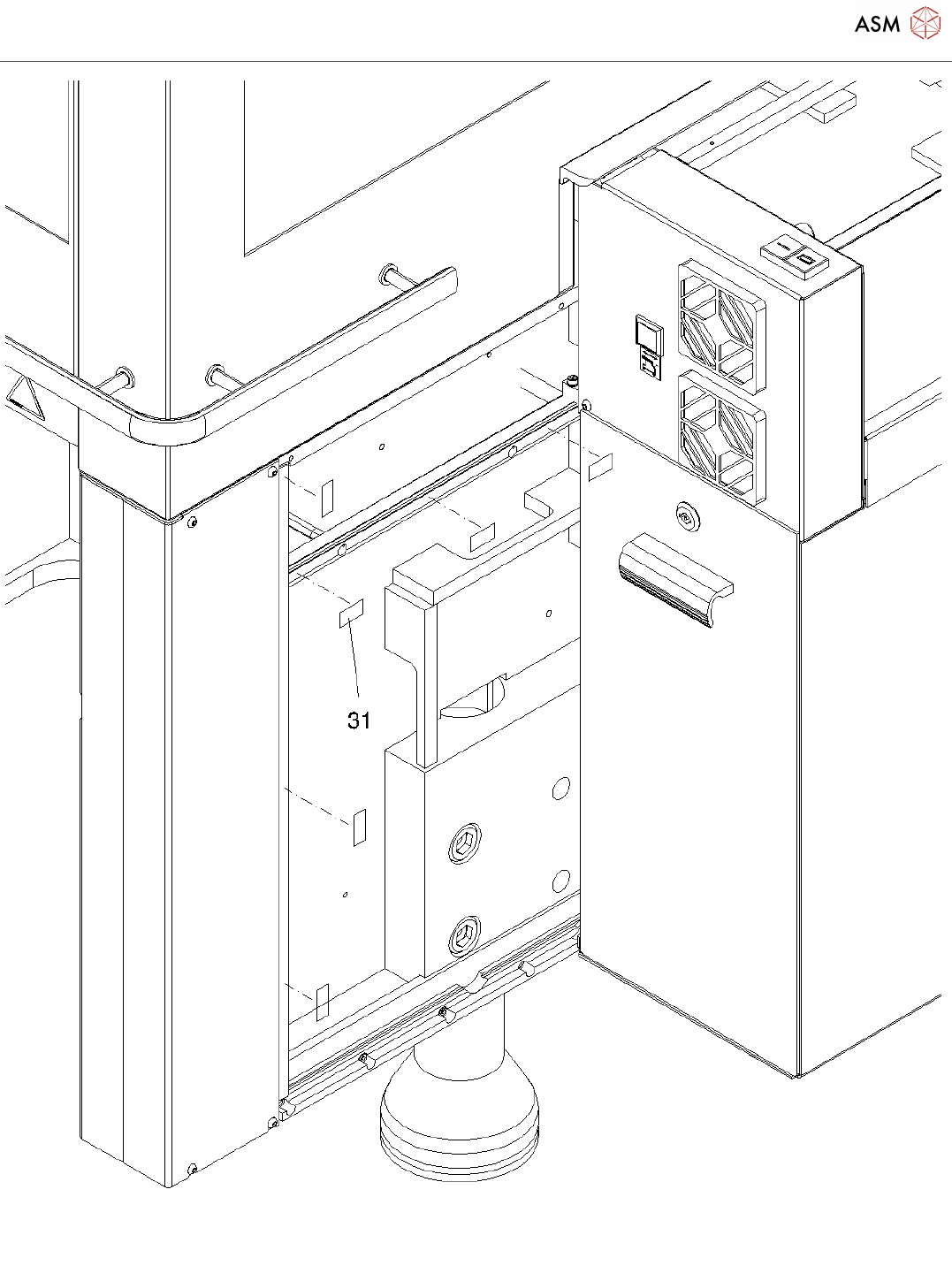

31 03060771-01 STICKY TAPE 3M 8581 FOR X4I
