P-0195-001 - 第149页
MEMO
MODEL TCM-3000Z-2
0108-001
146
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
7-1
49 630 055 2928 SPACER(BRG) 2 628G--03B-030
50 411 141 4008 WASHER V 4X9X0.8 4 FW4
51 411 141 2905 WASHER SPR 4 4 SW4
52 630 000 7633 BOLT,HEX-SCT 4 M4X12
53 630 031 0399 BEARING,RADIAL 70 628G--03H-001
53 -1 630 089 8101 COVER 5 628G--03B-058
53 -2 630 089 8118 COVER 5 628G--03B-059
53 -3 630 089 7845 COVER 28 628G--03B-060
54 630 067 2893 BELT,ROUND 2 628G--03H-002
55 630 067 2886 BELT,ROUND 2 628G--03H-035
56 630 056 1661 GUIDE(OKU) 1 628G--03B-013
57 630 056 1890 GUIDE(MAE) 1 628G--03B-014
58 411 141 4008 WASHER V 4X9X0.8 12 FW4
59 411 141 2905 WASHER SPR 4 12 SW4
60 630 000 7633 BOLT,HEX-SCT 12 M4X12
66 630 056 2743 PLATE(L) 1 628G--03B-053
67 411 141 4008 WASHER V 4X9X0.8 4 FW4
68 411 141 2905 WASHER SPR 4 2 SW4
69 630 000 7602 BOLT,HEX-SCT 2 M4X6
71 630 056 2736 PLATE 2 628G--03B-054
72 630 000 0252 SENSOR,PHOTO 2 PHS114, PHS115 628G--03H-045
73 630 000 0269 SENSOR,PHOTO(CONNECTOR) 2 628G--03H-046
74 411 119 1909 WASHER V 3X7X0.5 8 FW3 F
75 411 086 4408 WASHER SPR 3 4 SW3 F
76 411 040 7803 SCR PAN 3X12 4 M3X12 PAN
77 411 141 4008 WASHER V 4X9X0.8 4 FW4
78 411 141 2905 WASHER SPR 4 4 SW4
79 630 000 7619 BOLT,HEX-SCT 4 M4X8
91 630 001 0237 WASHER 4 628G--03H-025
92 411 141 3001 WASHER SPR 6 4 SW6
93 630 000 7886 BOLT,HEX-SCT 4 M6X16
96 630 035 6618 MECH PARTS (SET COLLARS) 1 628G--03H-047
MEMO
MODEL TCM-3000Z-2
0108-001
148

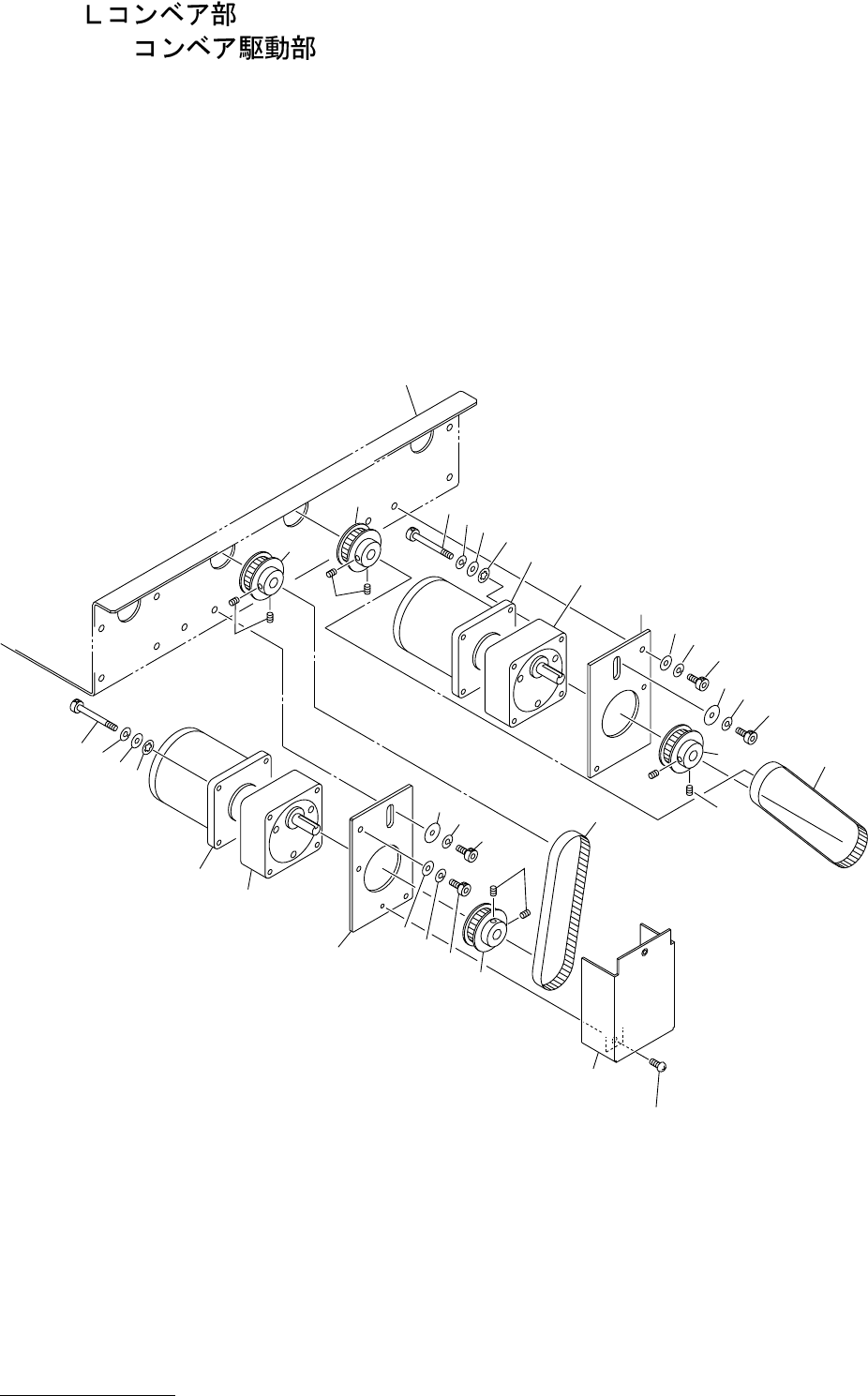

L CONVEYOR SECTION
Fig. 7-2
Conveyor Driver
See Fig.7-1
See Fig.7-1
Key No.2
Key No.2
3
4
5
6
6-1
6-1
4
5
6
6-1
2
1
10
10
11
12
12
13
14
15
15
7
8
9
7
8
7
8
3
2
1-1
10
10
11
11
12
13
14
14
15
7
8
9-1
16
17
