MODEL TCM-3000Z-2 0108-001 163 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 8-4 1 630 056 1500 PLA TE 4 628H--03B-033 1 -1 630 059 2405 BRACKET(PHOT O L) 2 628H--03B-016 1 -2 630 059 2412 BRACKET(PHOT O R) 1 628H--0…
MODEL TCM-3000Z-2
0108-001
162
R R CONVEYOR SECTION
Fig. 8-4
P.C.B. Detector, P.C.B. Stopper
1
6
7
3
4
5
1-1
8
6
7
8
9-1
9-2
9-3
2
11
12
13
13
14
14
15
16
17
18
18
19
22
22
23
27
26
25
24
30
29
28
9-1
9-1
9-2
9-2
9-3
9-1
9-2
9-3
2
1-3
1-3
2
3
4
5
3
1
1-2
1-2
4
5
1
21
21
31
32
32
33
34
34
35
35
36
36
1
6
7
3
4
5
1-1
1-1
8
6
7
8
9-1
9-1
9-2
9-3
2
Fig.8-4
TCM-3000Z-2
TCM-3000Z
MODEL TCM-3000Z-2
0108-001
163
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
8-4
1 630 056 1500 PLATE 4 628H--03B-033
1 -1 630 059 2405 BRACKET(PHOTO L) 2 628H--03B-016
1 -2 630 059 2412 BRACKET(PHOTO R) 1 628H--03B-039
1 -3 630 058 8705 BRACKET(PHOTO R) 1 628H--03B-040
2 630 045 6608 SENSOR,PELEC 4 PHS123, PHS59, PHS121, PHS113
628H--03H-026
3 411 119 1909 WASHER V 3X7X0.5 8 FW3 F
4 411 086 4408 WASHER SPR 3 8 SW3 F
5 411 040 7803 SCR PAN 3X12 8 M3X12 PAN
6 411 141 4008 WASHER V 4X9X0.8 8 FW4
7 411 141 2905 WASHER SPR 4 8 SW4
8 630 000 7619 BOLT,HEX-SCT 8 M4X8
9 -1 411 141 4008 WASHER V 4X9X0.8 8 FW4
9 -2 411 141 2905 WASHER SPR 4 8 SW4
9 -3 630 000 7664 BOLT,HEX-SCT 8 M4X20
11 630 057 7365 LEVER 1 628H--03B-015
12 630 001 0220 WASHER 2 628H--03H-027
13 630 000 7787 BOLT,HEX-SCT 1 M5X25
14 411 141 0604 NUT HEX 5 1 M5-3
15 411 054 6809 NUT HEX 3 1 M3 F
16 411 040 6202 SCR PAN 3X10 1 M3X10 PAN
17 411 054 8506 NUT HEX 4 1 M4 F
18 411 162 1505 SCR PAN 4X20 1 M4X20 PAN
19 630 001 8103 SPRING,TENSION 1 628H--03H-028
21 630 058 8699 BRACKET(CYL) 1 628H--03B-026
22 630 060 6980 ROTARY ACTUATOR 1 SV106 628H--03H-034
23 630 058 8712 LEVER 1 628H--03B-027
24 630 057 7372 LEVER 1 628H--03B-028
25 411 141 4008 WASHER V 4X9X0.8 2 FW4
26 411 141 2905 WASHER SPR 4 2 SW4
27 630 000 7626 BOLT,HEX-SCT 2 M4X10
28 411 141 4008 WASHER V 4X9X0.8 1 FW4
29 411 141 2905 WASHER SPR 4 1 SW4
30 630 000 7664 BOLT,HEX-SCT 1 M4X20
31 411 141 4008 WASHER V 4X9X0.8 2 FW4
32 411 141 2905 WASHER SPR 4 2 SW4
33 630 000 7626 BOLT,HEX-SCT 2 M4X10
34 411 141 4107 WASHER V 5X10X1 2 FW5
35 411 141 6705 WASHER SPR 5 2 SW5
36 630 000 7749 BOLT,HEX-SCT 2 M5X10
MODEL TCM-3000Z-2
0108-001
164

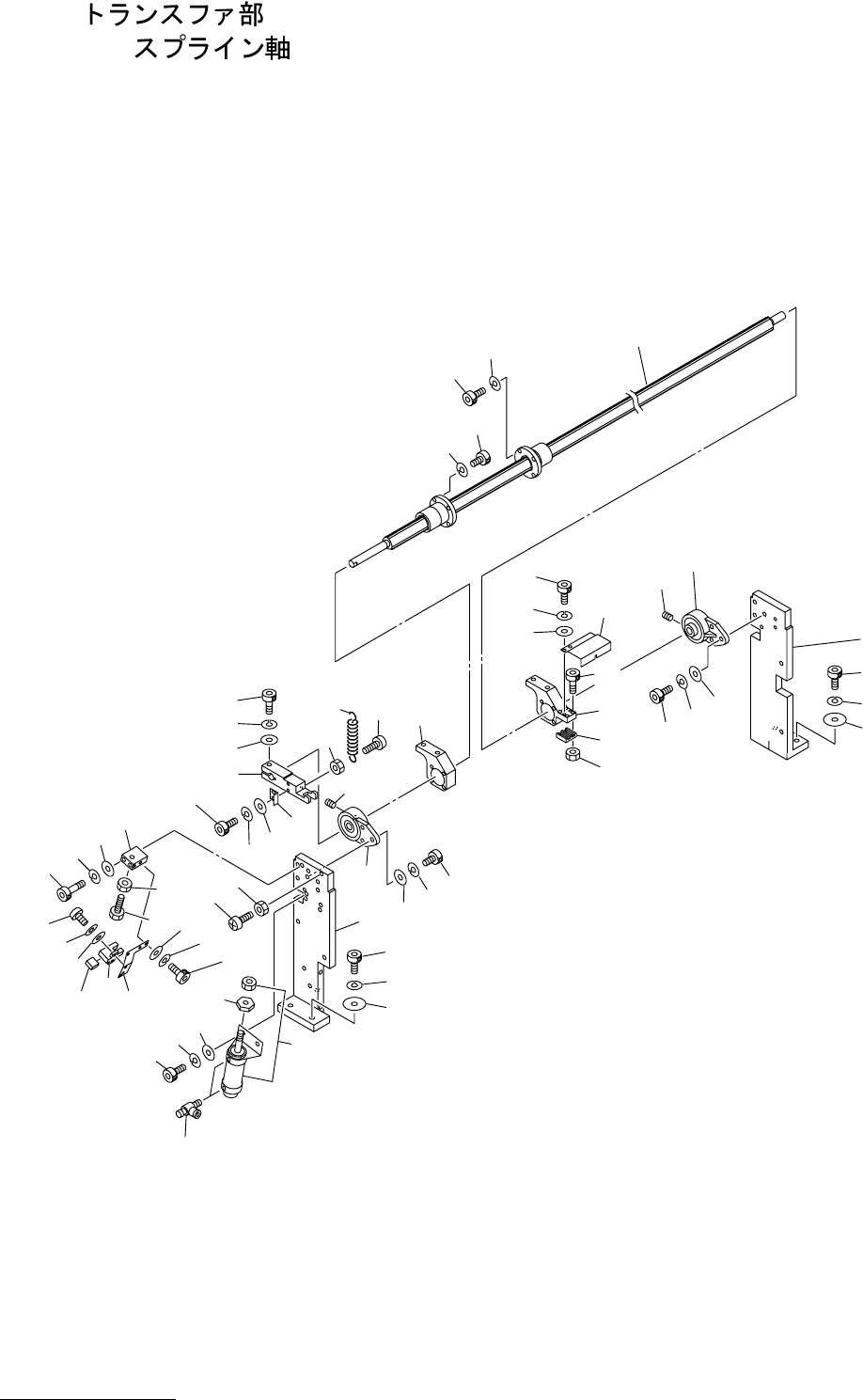

TRANSFER SECTION
Fig. 9-1
Spline Shaft
1
12
13
13
14
14
16
16
17
17
18
19
19
29
20
20
21
22
22
23
24
25
25
26
27
28
31
30
30
32
32
33
33
34
35
35
36
37
38
39
39
40
40
41
41
42
42
43
43
44
44
45
45
46
47
47
48
48
49
50
51
52
53
3
4
5
13
14
14
15
15
15
15
19
19
18
17
17
16
2
3
4
5
6-1
6
81
81
83
83
82
82
7
8
9
10
10
