MODEL TCM-3000Z-2 0108-001 206 ELECTRICAL SECTION Fig.11-10 Front Operation Panel 1 41 41 42 42 4 3 1 1 12 12 13 13 1 4 2 8 15 15 2 7 26 26 18 18 See Fig.1-1 See Fig.1-1 Key No.13 Key No.13 . . 24 24 25 25 . 1 6 17 17 . …
MODEL TCM-3000Z-2
0108-001
205
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
11-8
15 630 049 5034 CORD 1 CN15-CN100 628FB-03D-045
16 630 084 6379 CORD 1 CN16-CN101 628FB-03D-046
17 630 049 5058 CORD 1 CN17-CN102 628FB-03D-047
18 630 084 6379 CORD 1 CN18-CN103 628FB-03D-046
19 630 056 6895 CORD 1 CN19-CN104 628FB-03D-049
20 630 049 5089 CORD 1 CN20-CN105 628FB-03D-050
21 630 049 5096 CORD 1 CN21-CN106
628FB-03D-051
22 630 049 5102 CORD 1 CN22-CN107, 125
628FB-03D-052
24 630 091 4191 CORD 1 CN24-CN135, 136
628FB-03D-053
25 630 091 4184 CORD 1 CN25-CN133, 134
628FB-03D-054
26 630 091 4160 CORD 1 CN26-CN130 628FB-03D-055
27 630 094 7700 CORD 1 CN27-CN131, 132
628FB-03D-056
28 630 056 6956 CORD 1 CN28- 628FB-03D-057
29 630 049 5171 CORD 1 CN29- 628FB-03D-140
30 630 049 5171 CORD 1 CN30- 628FB-03D-140
54 630 094 7717 CORD 1 CN54-CN150 628FB-03D-064
55 630 084 6256 CORD 1 CN55-CN149 628FB-03D-063
57 630 049 7595 CORD 1 CN57- 628FB-03D-062
58 630 094 7465 CORD 1 CN58-CN117 628FB-03D-066
59 630 084 6249 CORD 1 CN59-CN118 628FB-03D-065
66 630 049 5195 CORD 1 CN66-CN148 628FB-03D-060
71 630 049 3269 CONNECTOR 1 CN71- 628FB-03D-033
73 630 054 8709 CONNECTOR 1 CN73- 628FB-03D-102
74 630 049 3238 CONNECTOR 1 CN74- 628FB-03D-025
83 630 059 5864 CORD 1 CN83-CN183 628FB-03D-126
85 630 004 6267 CONNECTOR 1 CN85- 628FB-03D-127
MODEL TCM-3000Z-2
0108-001
206
ELECTRICAL SECTION

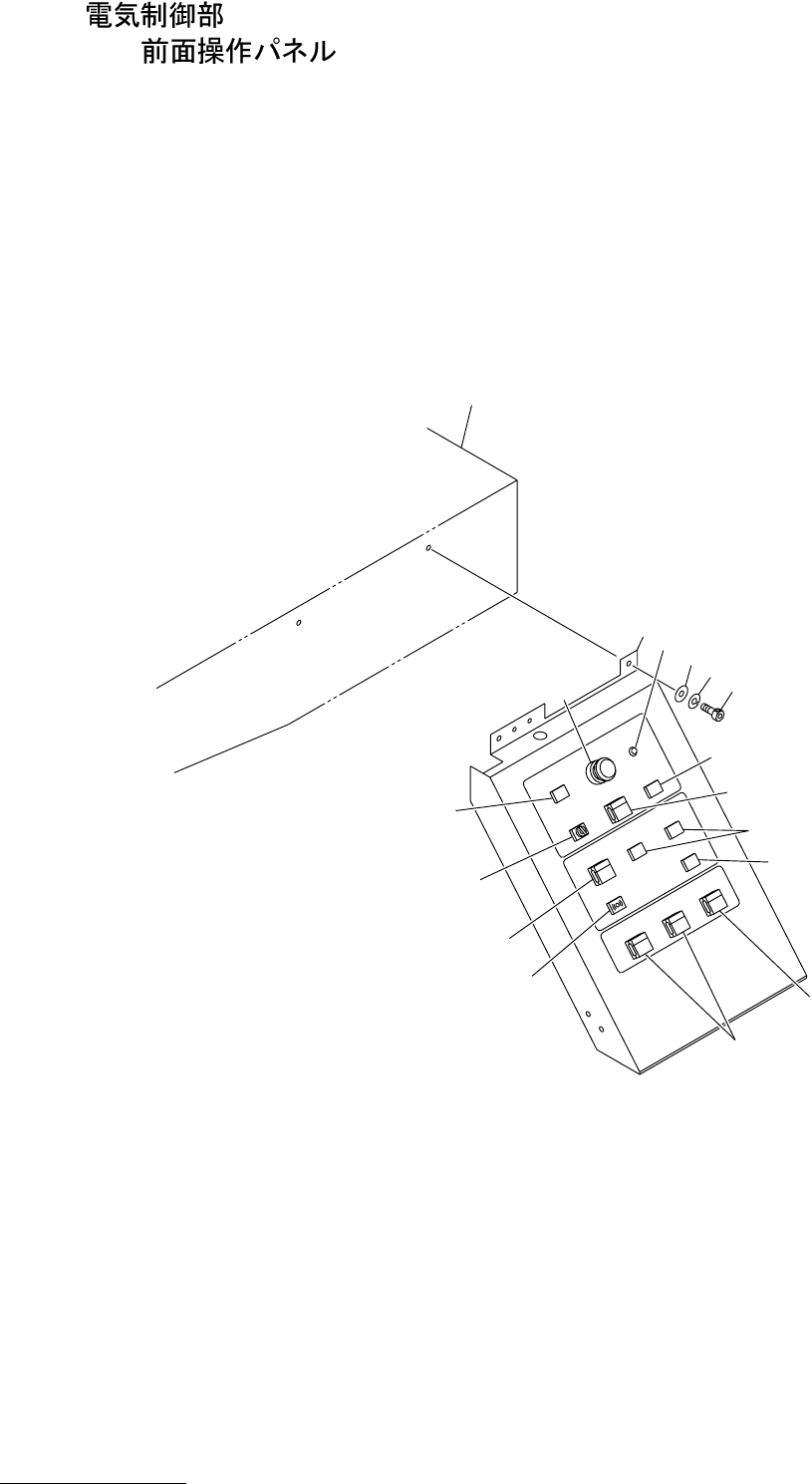

Fig.11-10
Front Operation Panel
1
41
41
42
42
43
11 12
12
13
13
14
28
15
15
27
26
26
18
18
See Fig.1-1
See Fig.1-1
Key No.13
Key No.13
. .
24
24
25
25
.
16 17
17
.
19 20
20
.
21 22
22
.
23
MODEL TCM-3000Z-2
0108-001
207
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
11-10
1 630 074 9007 PANEL 1 628DC-03V-001
11 630 033 4609 SWITCH,BUTTON 1 PB1 628DC-03D-001
12 630 033 4586 DISPLAY ELEMENT 1 LED1 628DC-03D-002
13 630 033 4593 ACCESSORY,SW 1 628DC-03D-003
14 630 066 7042 SWITCH,BUTTON 1 PB3 628DC-03D-004
15 630 000 3130 SWITCH,SELECTOR 1 SW3 628DC-03D-012
16 630 000 2713 SWITCH,BUTTON 1 PB5(LED2) 628DC-03D-006
17 630 000 0382 ACCESSORY,SW 1 628DC-03D-009
18 630 000 2515 SWITCH,BUTTON 2 PB7, PB8 628DC-03D-005
19 630 000 2713 SWITCH,BUTTON 2 PB6(LED3), PB11(LED4)
628DC-03D-006
20 630 000 0382 ACCESSORY,SW 2 628DC-03D-009
21 630 000 2713 SWITCH,BUTTON 1 PB12(LED5) 628DC-03D-006
22 630 000 0382 ACCESSORY,SW 1 628DC-03D-009
23 630 007 6066 SWITCH,BUTTON 1 PB9 628DC-03D-007
24 630 007 6066 SWITCH,BUTTON 1 PB10 628DC-03D-007
25 630 000 0382 ACCESSORY,SW 1 628DC-03D-009
26 630 035 0074 BUZZER 1 BZ1 628DC-03D-011
27 630 000 2744 SWITCH,BUTTON 1 PB13(LED6) 628DC-03D-008
28 407 035 4704 LED SLP-721F 1 LED7 628DC-03D-010
41 411 141 4107 WASHER V 5X10X1 2 FW5
42 411 141 6705 WASHER SPR 5 2 SW5
43 630 000 7749 BOLT,HEX-SCT 2 M5X10
