MODEL TCM-3000Z-2 0108-001 94 MIDDLE BASE SECTION Fig. 4-8 Feeder Miss-setting Detector 1 10 10 See Fig.1-1 Key No.13 Key No.13 2 3 4 5 6 7 8 9 2 8 2 9 3 0 2 0 19 19 1 7 1 8 2 3 24 24 14 14 13 13 1 5 1 6 1 8 17 17 1 9 2 …
MODEL TCM-3000Z-2
0108-001
93
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
4-7
1 630 048 7657 SUPPORT 1 628E--03B-017
2 630 001 0220 WASHER 2 628E--03H-008
3 411 141 6705 WASHER SPR 5 2 SW5
4 630 000 7770 BOLT,HEX-SCT 2 M5X20
5 630 048 7664 SUPPORT 1 628E--03B-018
6 630 001 0220 WASHER 2 628E--03H-008
7 411 141 6705 WASHER SPR 5 2 SW5
8 630 000 7770 BOLT,HEX-SCT 2 M5X20
9 630 048 7640 SUPPORT 1 628E--03B-016
10 411 141 4107 WASHER V 5X10X1 2 FW5
11 411 141 6705 WASHER SPR 5 2 SW5
12 630 000 7770 BOLT,HEX-SCT 2 M5X20
21 630 038 6992 BRACKET 2 628E--03B-030
22 630 000 0290 SENSOR,PROXIMITY 2 PXS17, PXS18 628E--03H-002
23 411 141 3902 WASHER V 3X7X0.5 4 FW3
24 411 141 2806 WASHER SPR 3 4 SW3
25 630 000 7527 BOLT,HEX-SCT 4 M3X10
26 411 140 9905 NUT HEX 3 4 M3
27 630 001 0213 WASHER 4 628E--03H-007
28 411 141 2905 WASHER SPR 4 4 SW4
29 630 000 7640 BOLT,HEX-SCT 4 M4X14
30 630 040 4609 PLATE 2 628E--03B-031
31 630 040 4593 PLATE 2 628E--03B-032
32 411 141 3902 WASHER V 3X7X0.5 2 FW3
33 411 000 9304 RING E 2 2 628E--03H-006
34 411 141 3902 WASHER V 3X7X0.5 2 FW3
35 411 141 0109 NUT HEX 3 4 M3-3
36 630 062 8647 SHEET 4 628E--03B-033
37 411 141 3902 WASHER V 3X7X0.5 4 FW3
38 630 000 7558 BOLT,HEX-SCT 4 M3X16
39 411 141 3902 WASHER V 3X7X0.5 4 FW3
40 411 140 9905 NUT HEX 3 8 M3
41 630 001 0213 WASHER 4 628E--03H-007
42 411 141 2905 WASHER SPR 4 4 SW4
43 630 000 7640 BOLT,HEX-SCT 4 M4X14
46 630 000 7510 BOLT,HEX-SCT 4 M3X8
47 411 141 3902 WASHER V 3X7X0.5 4 FW3
48 411 141 0109 NUT HEX 3 8 M3-3
MODEL TCM-3000Z-2
0108-001
94

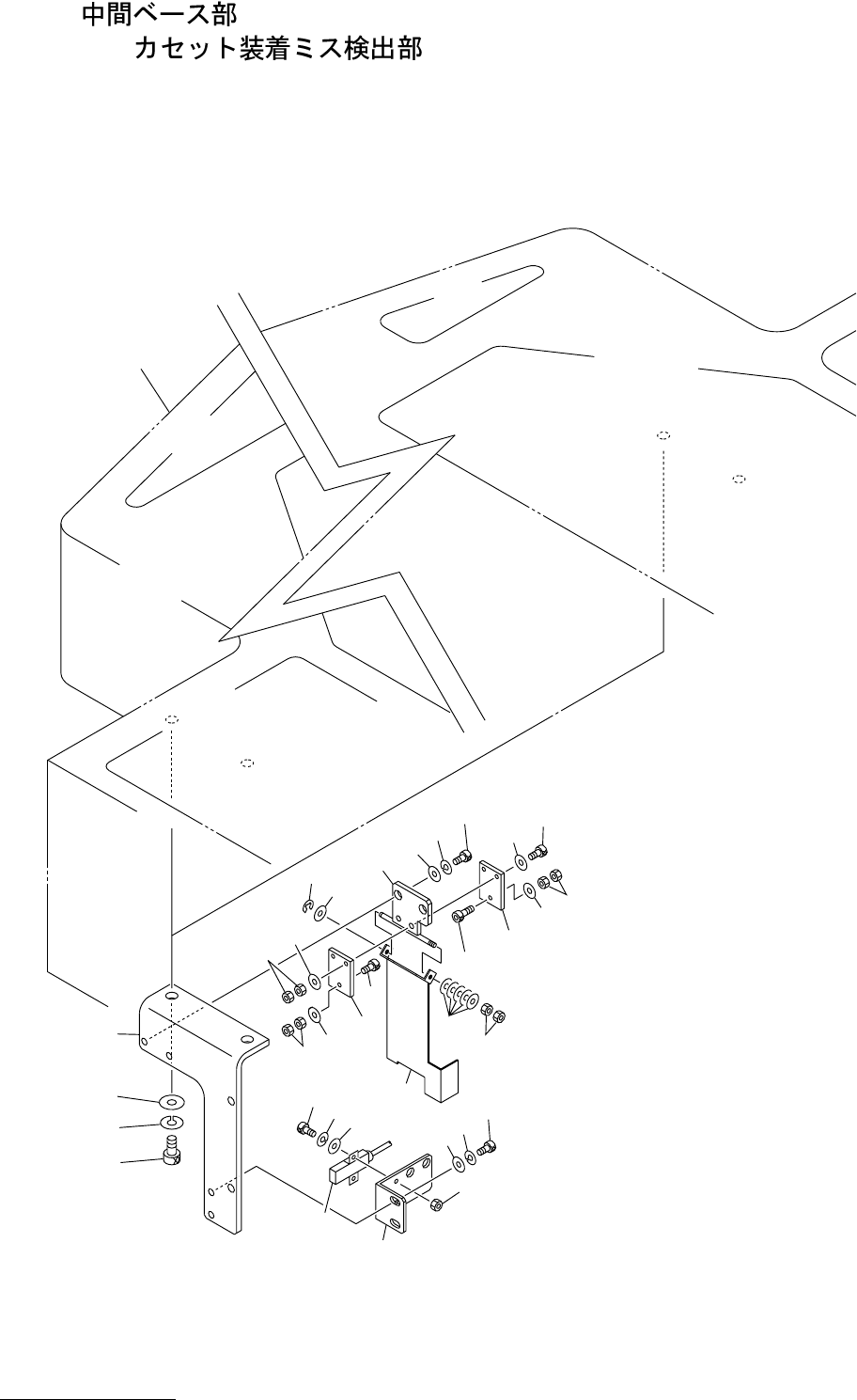

MIDDLE BASE SECTION
Fig. 4-8
Feeder Miss-setting Detector
1
10
10
See Fig.1-1
Key No.13
Key No.13
2
3
4
5
6
7
8
9
28
29
30
20
19
19
17
18
23
24
24
14
14
13
13
15
16
18
17
17
19
20
22
21
21
27
27
26
26
25
11
12
12
MODEL TCM-3000Z-2
0108-001
95
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
4-8
1 630 056 8042 BRACKET 2 628L--03B-037
2 630 056 8059 BRACKET 2 628L--03B-038
3 630 000 0290 SENSOR,PROXIMITY 2 PXS19, PXS20 628L--03H-080
4 411 141 3902 WASHER V 3X7X0.5 4 FW3
5 411 141 2806 WASHER SPR 3 4 SW3
6 630 000 7527 BOLT,HEX-SCT 4 M3X10
7 411 140 9905 NUT HEX 3 4 M3
8 411 141 4107 WASHER V 5X10X1 4 FW5
9 411 141 6705 WASHER SPR 5 4 SW5
10 630 000 7749 BOLT,HEX-SCT 4 M5X10
11 630 057 4005 PLATE 2 628L--03B-036
12 630 073 3532 PLATE 2 628L--03B-040
13 411 141 3902 WASHER V 3X7X0.5 2 FW3
14 411 000 9304 RING E 2 2 628L--03H-081
15 411 141 3902 WASHER V 3X7X0.5 10 FW3
16 411 141 0109 NUT HEX 3 4 M3-3
17 630 044 4971 PLATE 4 628L--03B-039
18 630 000 7510 BOLT,HEX-SCT 4 M3X8
19 411 141 3902 WASHER V 3X7X0.5 4 FW3
20 411 141 0109 NUT HEX 3 8 M3-3
21 411 141 3902 WASHER V 3X7X0.5 4 FW3
22 630 000 7558 BOLT,HEX-SCT 4 M3X16
23 411 141 3902 WASHER V 3X7X0.5 4 FW3
24 411 140 9905 NUT HEX 3 8 M3
25 411 141 4107 WASHER V 5X10X1 4 FW5
26 411 141 6705 WASHER SPR 5 4 SW5
27 630 000 7749 BOLT,HEX-SCT 4 M5X10
28 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
29 411 141 3001 WASHER SPR 6 4 SW6
30 630 000 7879 BOLT,HEX-SCT 4 M6X12
