Nac hrüstanleitung/R etrofitting Instruc tions WPW an SIPLACE 80F3/F4 / WPC on SIP LACE 80F3/F4 Aus gabe 09/96 / 09/96 Edition Seite/ Page 7 von/ of 12 :RUNWREHFDUULHGRXW • Sw i tch of f the autom at ic plac em en…
WPW an SIPLACE 80 F3/F4 / WPC on SIPLACE 80 F3/F4 Nachrüstanleitung/Retrofitting Instructions
Ausgabe 09/96 / 09/96 Edition
Seite/Page 6 von/of 12
The automatic placement systems from the SIPLACE family are powered with 3 x 400V ± 10%, 50/60 Hz
main power voltage. Parts of these systems carry dangerous voltages, even when the main switch is
switched off. Incorrect handling of these automatic placement systems can result in death, severe injury
or considerable damage.
Please follow the applicable accident prevention and VDE regulations (particularly EN 60204). This
retrofitting work must only be carried out by trained Siemens service engineers.
Before starting the retrofitting work, switch off at the main switch and remove the main power plug.
Secure the system to prevent it being switched on again.
If these instructions are not followed, the result may be death or severe injury caused by touching live
parts.
Qualified or adequately trained personnel:
People with responsibility for setting up, operating and maintaining component placement systems and their
auxiliary devices and who have appropriate qualifications, such as:
•
Training, instruction or authorization to switch on and off, isolate, earth or identify electrical
circuits and system components to the necessary safety standards.
•
Training or instruction in the care and use of appropriate safety equipment in accordance with the
applicable safety standards.
•
First aid training.
in this user’s manual means that death, severe injury or considerable damage will be caused if the
hazard warnings are not followed.
in this user’s manual means that death, severe injury or considerable damage may be caused if the
warning instructions are not followed.
in this user’s manual indicates important information on the product or a part of the Operating
Instructions to which particular attention should be paid.
Nachrüstanleitung/Retrofitting Instructions WPW an SIPLACE 80F3/F4 / WPC on SIPLACE 80F3/F4
Ausgabe 09/96 / 09/96 Edition
Seite/Page 7 von/of 12

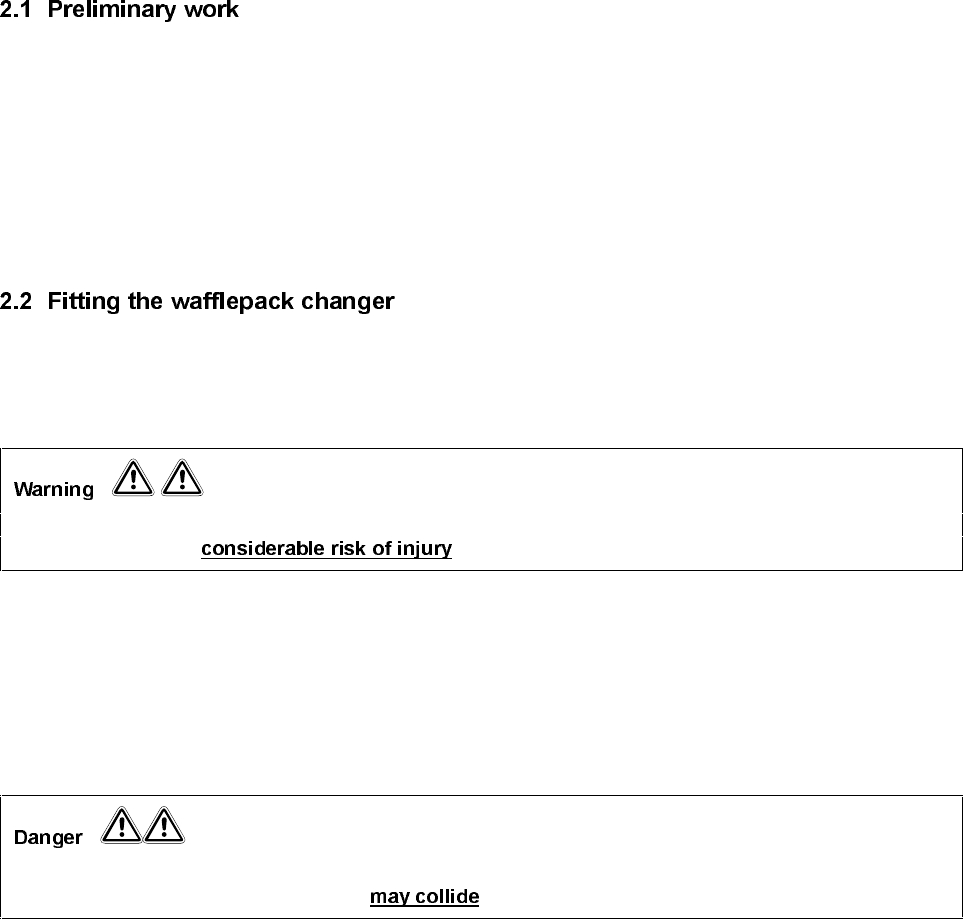

:RUNWREHFDUULHGRXW
•
Switch off the automatic placement system at the main switch and remove the main power plug.
•
Remove the feeders from the right components table.
•
Loosen and remove the right components table.
•
Loosen the two screws to remove the waste tape chute (wafflepack changer guide plate).
•
Loosen the two screws to remove the old used tape guide channel.
•
Raise the new components table into the component placement system and fix in place using the two
screws.
Two people must always be present when this work is carried out, since the components table is very
heavy and there is a .
•
Then fit the new waste chute (wafflepack changer guide plate).
•
Fix the docking rail to the components table.
•
Using the platform truck, move the wafflepack changer into the machine. When lowering the changer,
ensure that the two centering pins slide into the holes in the docking rail.
The wafflepack changer must be seated correctly on the components table and fixed in place using the
docking rail. If it is not fitted correctly, it with the gantry.
•
Now align the wafflepack changer using the spirit level.
Connect the electrical connector on the wafflepack changer to the left-hand plug on the component
placement system.
WPW an SIPLACE 80 F3/F4 / WPC on SIPLACE 80 F3/F4 Nachrüstanleitung/Retrofitting Instructions
Ausgabe 09/96 / 09/96 Edition
Seite/Page 8 von/of 12
Figure 1
Key to figure 1:
① Components table
② Wafflepack changer guide plate
③ Docking rail
④ Centering pin
⑤ Spirit level
⑥ Used tape guide channel
