2 Safety
2.2 Warning labels
22 Instruction Guide ASM ProcessLens Dual-lane 06/2018

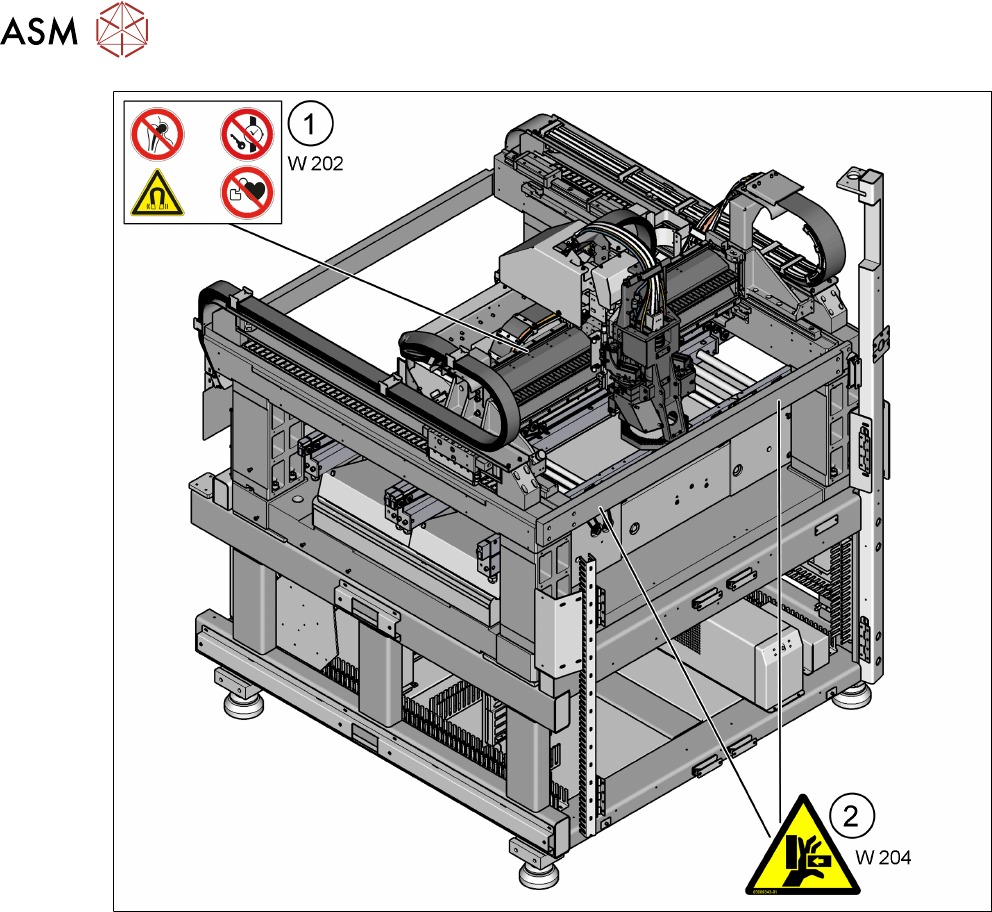

Fig.7: Warning labels - front view - inside - part 2
1 W 202 [03009341-xx] 2 W 204 [03009343-xx]
2 Safety
2.2 Warning labels
Instruction Guide ASM ProcessLens Dual-lane 06/2018 23

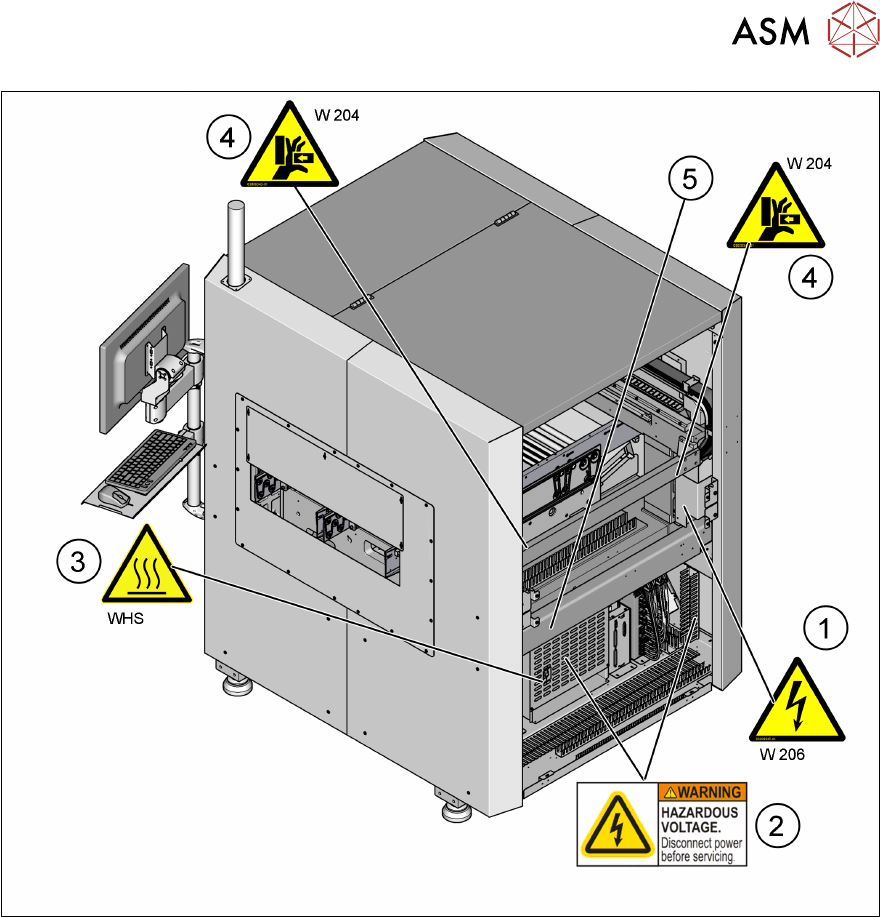

Fig.8: Warning labels - Power supply unit and voltage distribution board
1 W 206 [03009345-xx] 2 W-Hazardous-Voltage [03157800-xx]
3 W HS - Hot surface [03031926-xx] 4 W 204 [03009343-xx]
5 Label for the power supply unit cover
[03113903‑xx]
2 Safety
2.2 Warning labels
24 Instruction Guide ASM ProcessLens Dual-lane 06/2018

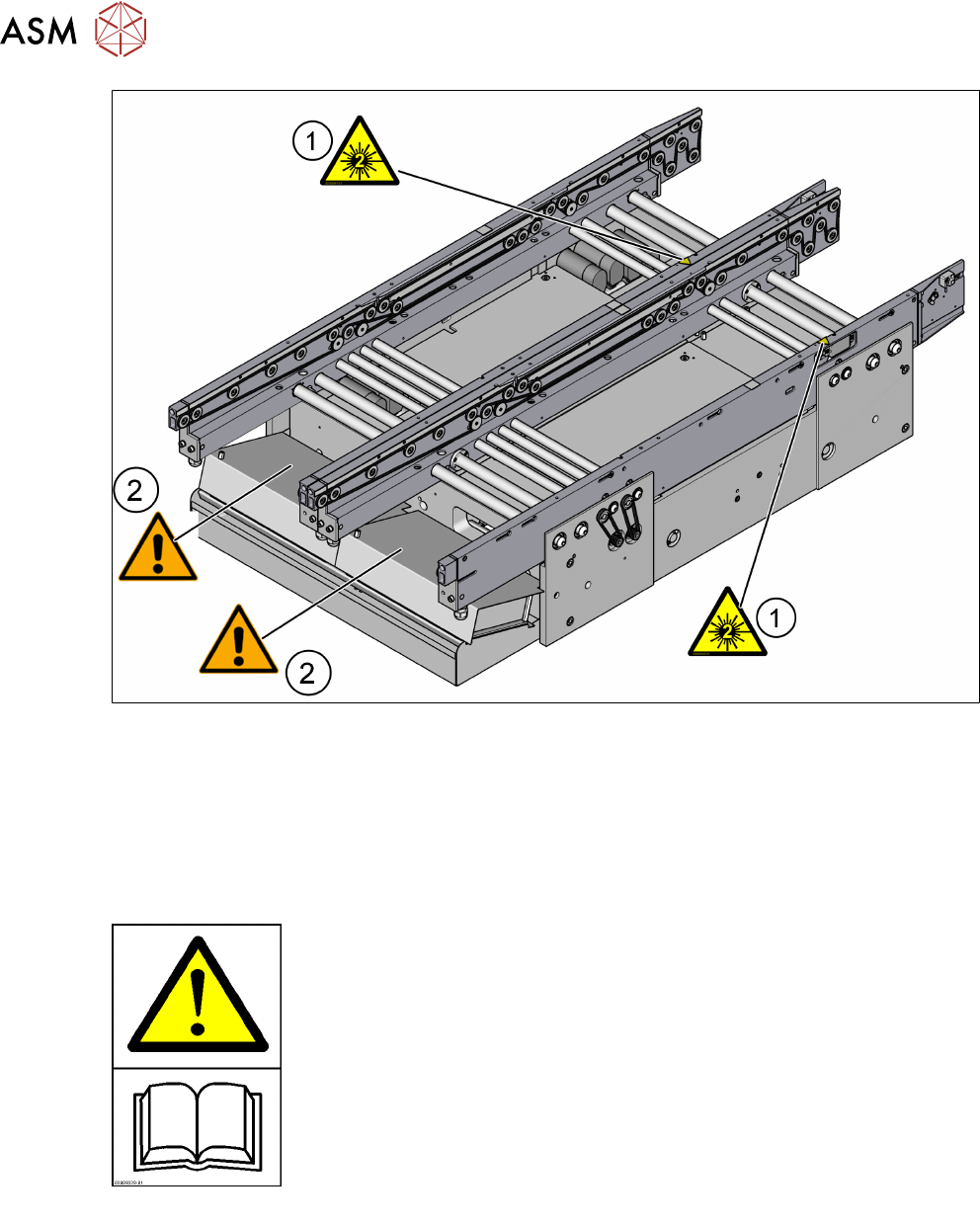

Fig.9: Warning labels - Conveyor
1 W 208 [03009347-xx]
2 Conveyor control (under the cover)
2.2.3 Description of the warning labels
2.2.3.1 Warning label W 201
Fig.10: W 201 [03009338-xx] (quantity per machine: 1)
Safe operation of the machine
Safe operation of the machine depends abso-
lutely on the operator being familiar with the In-
structor Guide and safety instructions and put-
ting them into effect.
See fig. "Warning labels front view" [}19]
