2 Safety
2.2 Warning labels
18 Instruction Guide ASM ProcessLens Dual-lane 06/2018
2.2 Warning labels
The warning labels are made from soft PVC film, and are abrasion-proof, light-fast and resistant to
water and weathering. Their design meets the requirements of ISO 3864-2 and ANSI Z535.6.
WARNING
Damaged or illegible warning labels
Make sure that the warning labels are always clearly identifiable and always easily readable.
► Do not use abrasive cleaners or solvents for cleaning warning labels.
► Replace any damaged or illegible warning labels.
► Replace any labels that are missing.
2 Safety
2.2 Warning labels
Instruction Guide ASM ProcessLens Dual-lane 06/2018 19
2.2.1 Warning labels on the machine
Fig.4: Warning labels front view
1 W 201 [03009338-xx] 2 W 202 [03009341-xx]
3 External grounding point [00359574-xx] 4 W 204 [03009343-xx]
5 W laser class 2 [03134118-xx] 6 W 81-00382 [03112319-xx]
7 W 203 [03009342-xx] 8 W 210 [03009350-xx]
2 Safety
2.2 Warning labels
20 Instruction Guide ASM ProcessLens Dual-lane 06/2018

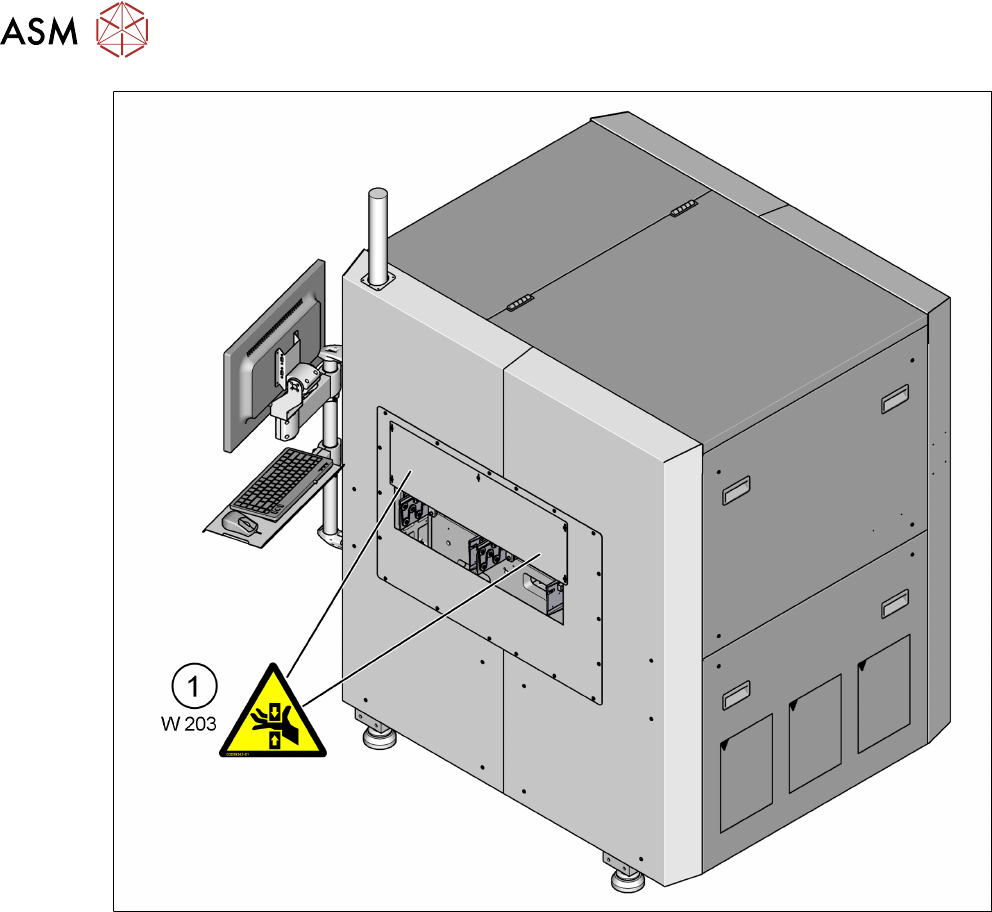

Fig.5: Warning labels back view
1 W 203 [03009342-xx]
