2 Safety 2.2 Warning labels 22 Instruction Guide ASM ProcessLens Dual-lane 06/2018 Fig.7: Warning labels - front view - inside - part 2 1 W 202 [03009341-xx] 2 W 204 [03009343-xx]
2 Safety
2.2 Warning labels
Instruction Guide ASM ProcessLens Dual-lane 06/2018 21
2.2.2 Warning labels in the machine

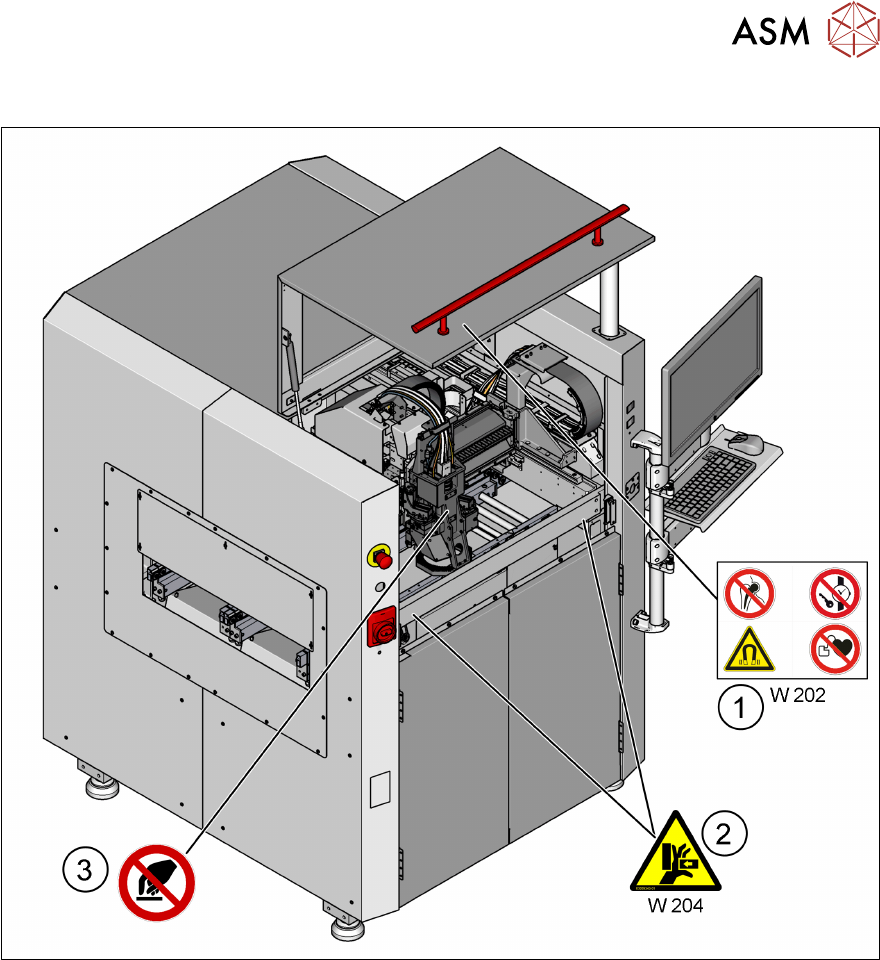

Fig.6: Warning labels - front view - inside - part 1
1 W 202 [03149289-xx] 2 W 204 [03009343-xx]
3 Do not touch
2 Safety
2.2 Warning labels
22 Instruction Guide ASM ProcessLens Dual-lane 06/2018
Fig.7: Warning labels - front view - inside - part 2
1 W 202 [03009341-xx] 2 W 204 [03009343-xx]
2 Safety
2.2 Warning labels
Instruction Guide ASM ProcessLens Dual-lane 06/2018 23
Fig.8: Warning labels - Power supply unit and voltage distribution board
1 W 206 [03009345-xx] 2 W-Hazardous-Voltage [03157800-xx]
3 W HS - Hot surface [03031926-xx] 4 W 204 [03009343-xx]
5 Label for the power supply unit cover
[03113903‑xx]
