3 Machine description
3.1 Overview of the modules
50 Instruction Guide ASM ProcessLens Dual-lane 06/2018

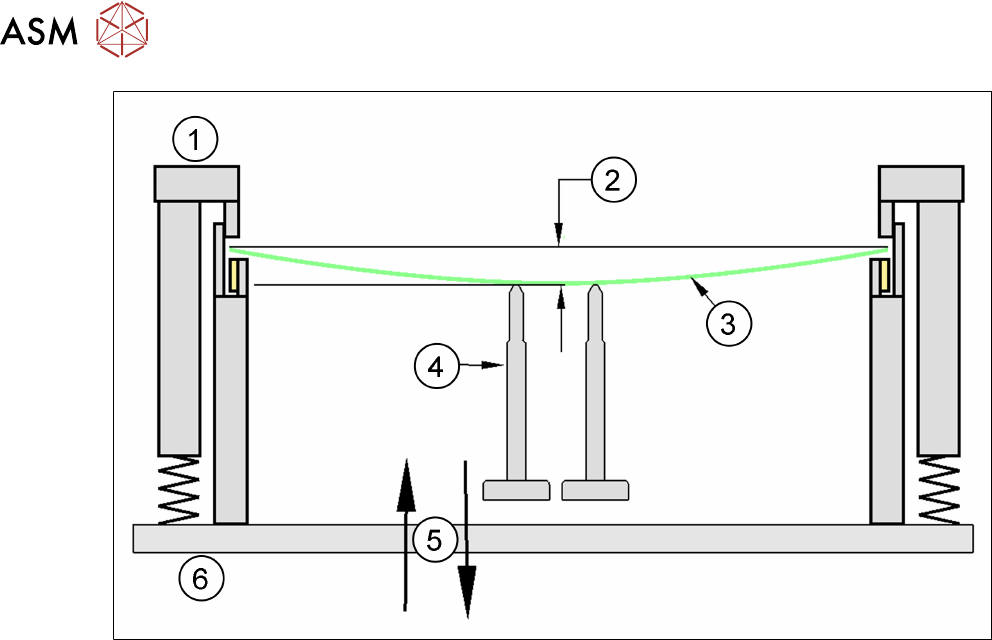

1 Fixed clamped edge 2 0.5 mm
3 Printed circuit board 4 Magnetic pin support
5 Movable clamping device 6 Conveyor rail
► Use magnetic pin supports to achieve this value.
3 Machine description
3.2 Technical data
Instruction Guide ASM ProcessLens Dual-lane 06/2018 51
3.2 Technical data
3.2.1 Dimensions and ambient conditions for machine operation
Machine dimension
Length along PCB transport direction 1130 mm
Width 1300 mm
Height at a conveyor height of 950 mm 1600 mm
Machine weight 780 kg
Adjustable monitor and keyboard height range 880 - 1140 mm
Floor load 5 kN/m²
Machine ground clearance
(for PCB conveyor height 900 mm) machine height is 1831 mm ± 15 mm
(for PCB conveyor height 930 mm) machine height is 1861 mm ± 15 mm
(for PCB conveyor height 950 mm) machine height is 1881 mm ± 15 mm
Room temperature Between 15°C and 35°C
Atmospheric humidity 30% to 75% (no higher than 45% on average to
prevent any possibility of condensation in the
machine)
Operating temperature range Between 0°C and 50°C
Operating humidity max. 50% at 40°C
Operating altitude max. up to 1000m sea level
Max. noise emissions 78 dB (A)
3.2.2 Ambient conditions for packaging, transportation and storage
Temperature range Between -25°C and 55°C
Atmospheric humidity Up to 95%
Ambient pressure Up to 1700 m height without pressure equalization
3 Machine description
3.2 Technical data
52 Instruction Guide ASM ProcessLens Dual-lane 06/2018
3.2.3 Center of Gravity

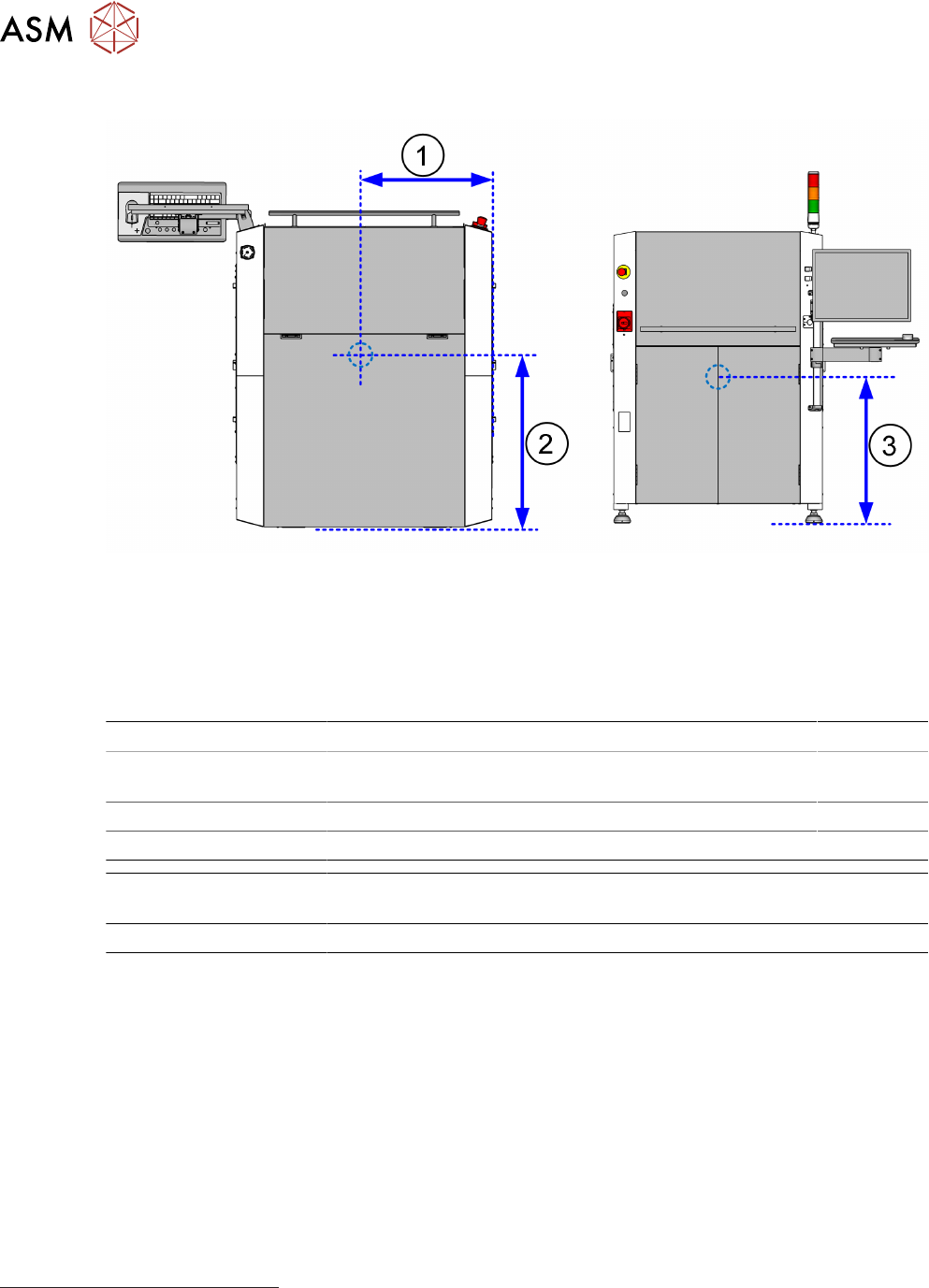

Fig.31: Center of gravity of the ASM ProcessLens Dual-lane solder paste inspection machine
1 550 mm 2 610 mm
3 730 mm
3.2.4 Electrical Ratings
Supply voltage Fuses
Main power supply 1/N/PE
Current rating: 110 V
1)
- 9.1 A, 240 V - 4.2 A, 50/60Hz
2 x 15 A
Power consumption 1 kW
Power supply 100 ~ 240 VAC, Single Phase 50/60 Hz
Short circuit rating of
machine (SCCR)
2)
10 kA
Power connector MENNEKES: 32 A 230 V 2 P+E STRAIGHT
1)
110 V~ as an option
2)
With the original mains connection cable. The marked short circuit rating (SCCR) relates to the beginning of
the original mains cable. In the case of customer modifications, the factory-set length of the mains cable to
the machine may not be shortened nor the factory-set conductor cross-section increased, as this would
have a negative impact on the short circuit rating (SCCR).
