4 Setting up and commissioning 4.4 Commissioning the machine Instruction Guide ASM ProcessLens Dual-lane 06/2018 69 Fig.41: Position of the shipping braces - Front side of the machine (part 2) 1 Shipping braces
4 Setting up and commissioning
4.4 Commissioning the machine
68 Instruction Guide ASM ProcessLens Dual-lane 06/2018
4.4.2 Removing the shipping braces
► Remove all the shipping braces (see next three figures).
► If the ASM ProcessLens Dual-lane machine needs to be transported, always fit the shipping
braces.
CAUTION
Always fit the shipping braces
Do not get rid of the shipping braces.
► Store the shipping braces for future use if ASM ProcessLens Dual-lane needs to be
moved to another location.
► If the ASM ProcessLens Dual-lane machine needs to be transported, always fit the
shipping braces.
Fig.40: Position of the shipping braces - Front side of the machine (part 1)
1 Shipping braces
4 Setting up and commissioning
4.4 Commissioning the machine
Instruction Guide ASM ProcessLens Dual-lane 06/2018 69

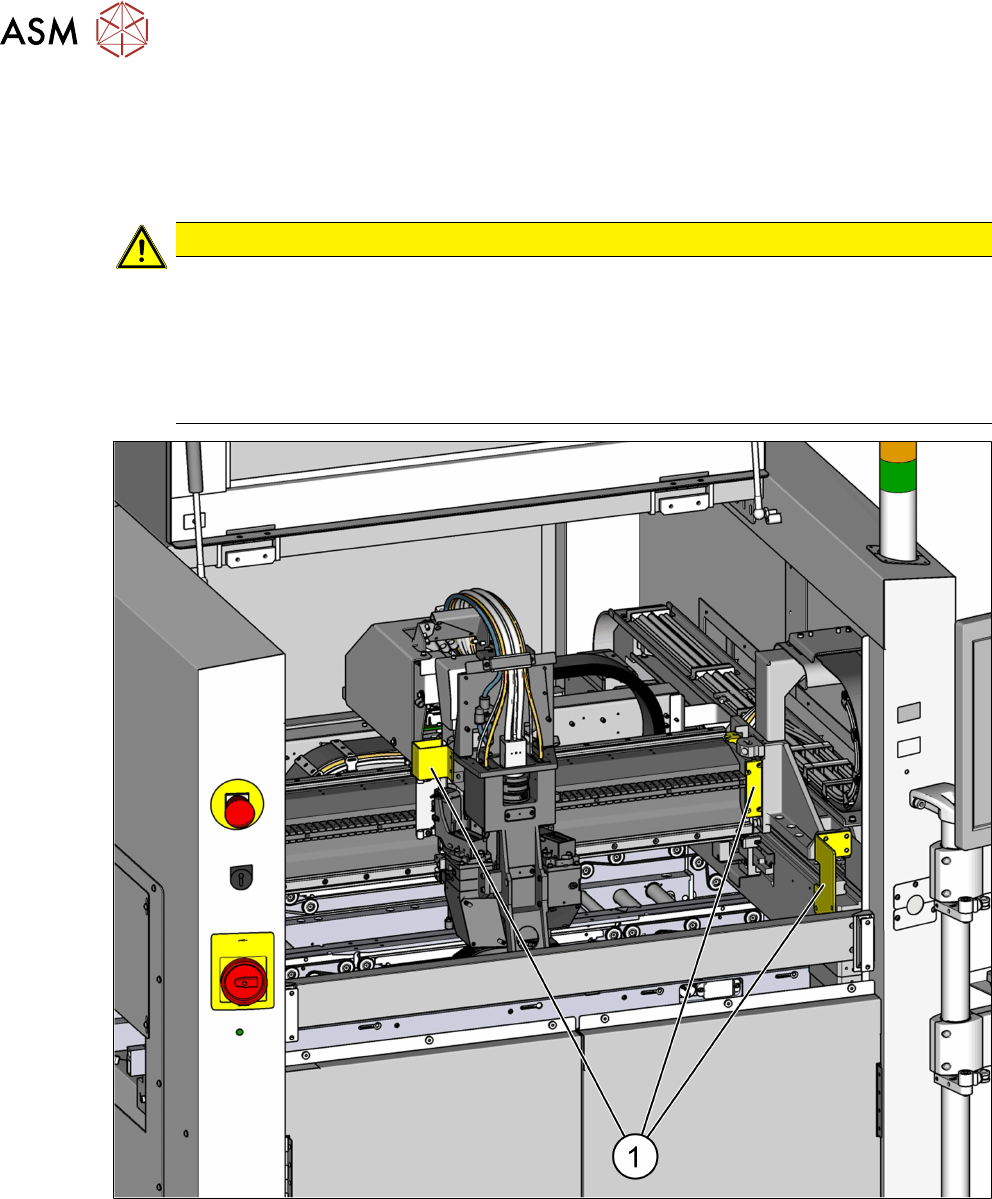

Fig.41: Position of the shipping braces - Front side of the machine (part 2)
1 Shipping braces
4 Setting up and commissioning
4.4 Commissioning the machine
70 Instruction Guide ASM ProcessLens Dual-lane 06/2018
Fig.42: Position of the shipping braces - Front side of the machine (part 3)
1 Shipping braces
