4 Setting up and commissioning 4.4 Commissioning the machine 70 Instruction Guide ASM ProcessLens Dual-lane 06/2018 Fig.42: Position of the shipping braces - Front side of the machine (part 3) 1 Shipping braces
4 Setting up and commissioning
4.4 Commissioning the machine
Instruction Guide ASM ProcessLens Dual-lane 06/2018 69

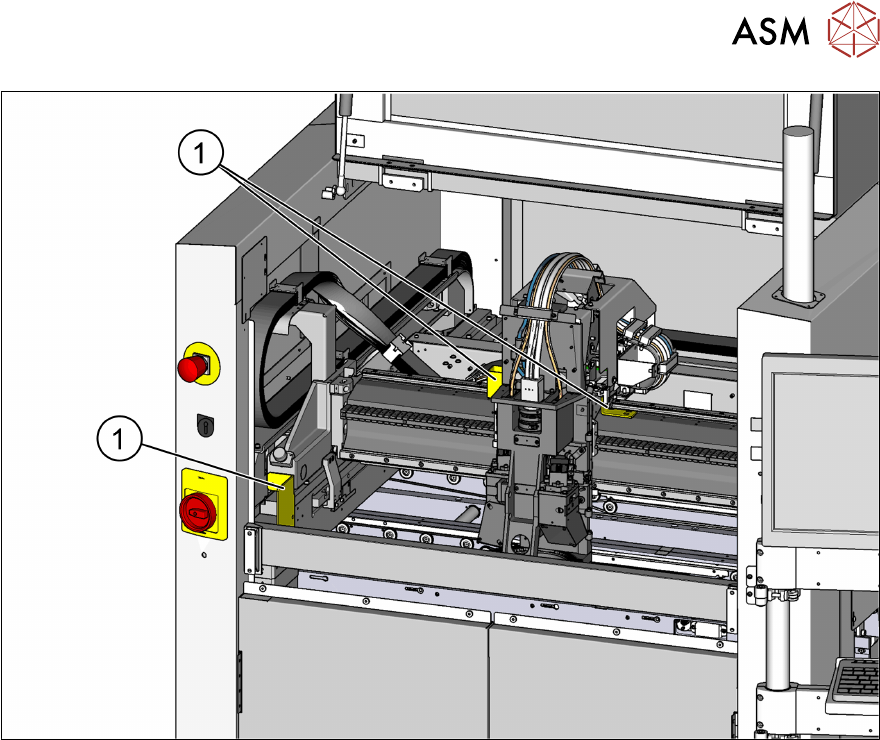

Fig.41: Position of the shipping braces - Front side of the machine (part 2)
1 Shipping braces
4 Setting up and commissioning
4.4 Commissioning the machine
70 Instruction Guide ASM ProcessLens Dual-lane 06/2018

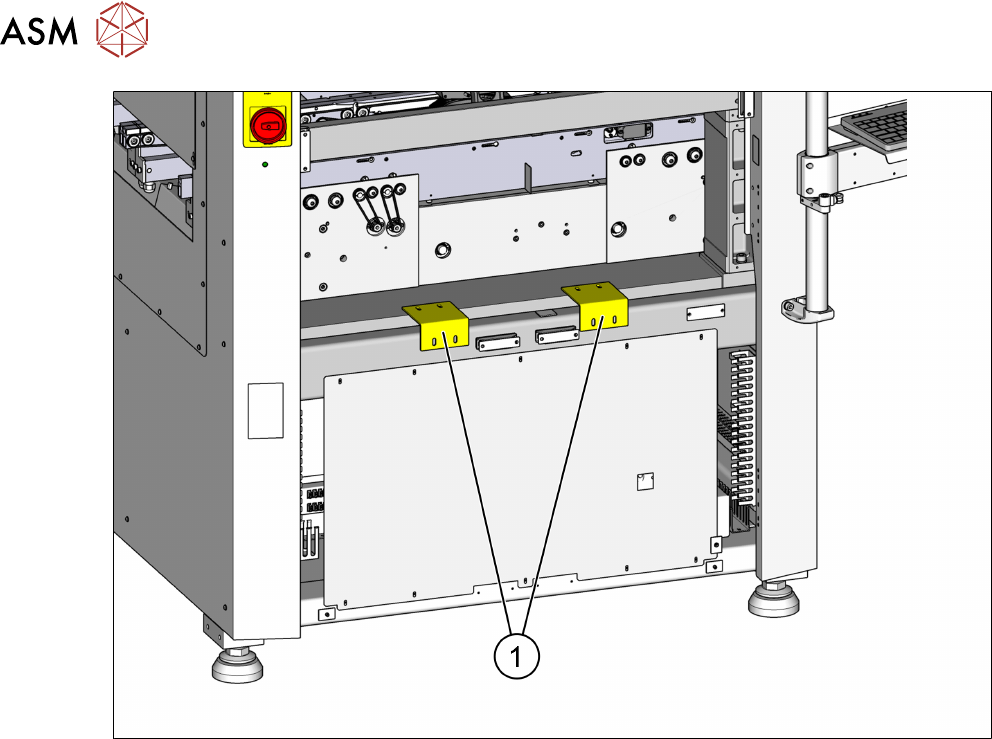

Fig.42: Position of the shipping braces - Front side of the machine (part 3)
1 Shipping braces
4 Setting up and commissioning
4.4 Commissioning the machine
Instruction Guide ASM ProcessLens Dual-lane 06/2018 71

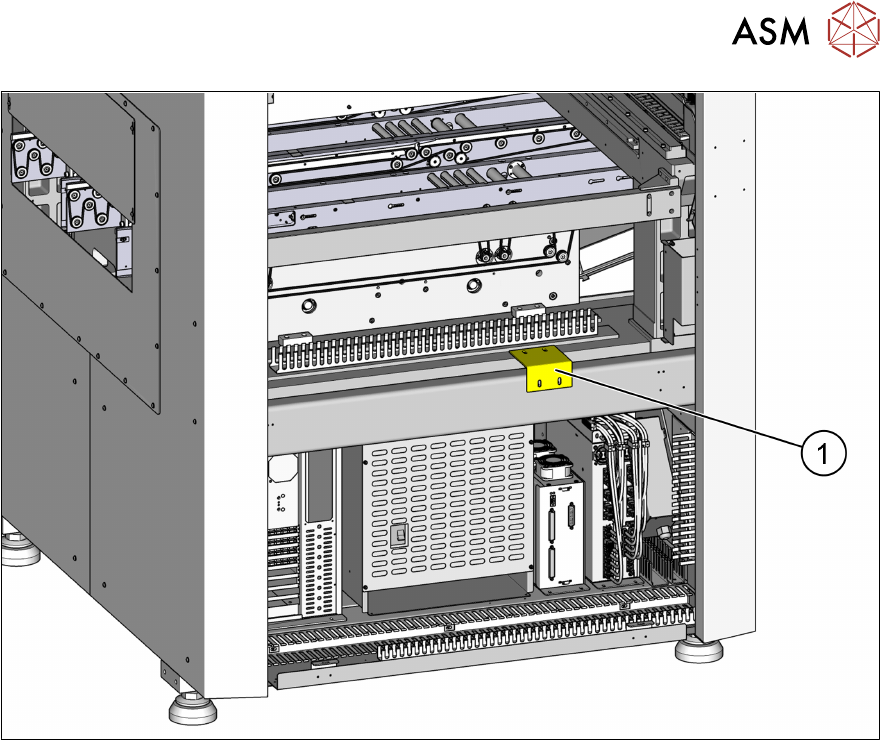

Fig.43: Position of the shipping brace - Rear side of the machine
1 Shipping brace
