: Download the P&P Head firmware.

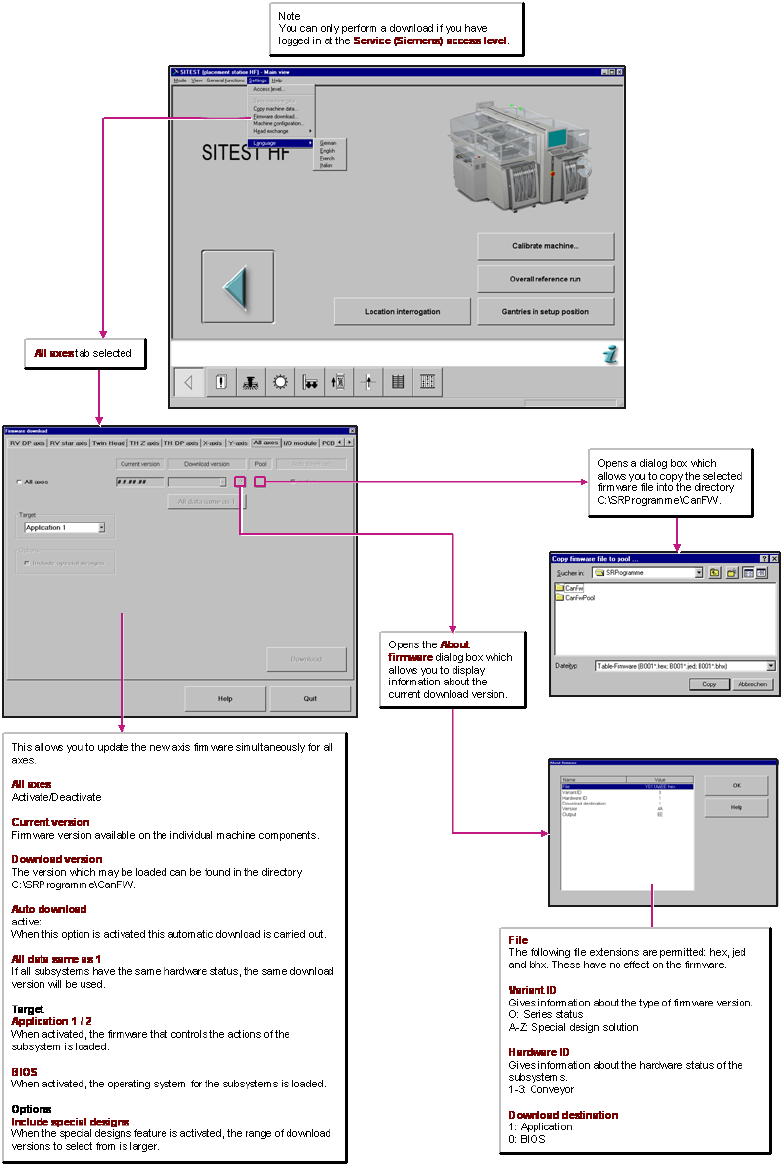

Abb. 2.7.13 Firmware download as example HF (D-series similar)
2From SW version 604 upwards the download is not restricted to SIPLACE-Service anymore. 2
Assembly instructions Head Reconfiguration SIPLACE D1 / D2
Edition 03/2007
71
Assembly instructions Head Reconfiguration SIPLACE D1 / D2
Edition 03/2007
72
2.7.10 Calibrate all heads and cameras:
: Calibrate the P&P Head, camera and nozzle changer.
: Carry out the head mapping, if necessary.
2
: Back-up the machine data.
2
: Restart again.
This completes the conversion. 2
2.7.11 Dismounting the P&P module
A standard D1 machine is converted into a D1 single head (with C&P placement head).) 2
The second placement head on the gantry is dismounted with
its nozzle changer and stationary
cameras and deactivated at SIPLACE Pro and SITEST. In detail the work is described above in
chapter "Mounting". 2
