Assembly instructions Head Reconfiguration SIPLACE D1 / D2 Edition 03/2007 80 : Fix the silicon hose size 8 and the silicon hose size 6 as shown in Fig. 2.8.4. 2 Fig. 2.8.6 Maintain a distance to the ribbon cable 2 2 2 2…
Assembly instructions Head Reconfiguration SIPLACE D1 / D2
Edition 03/2007
79
2

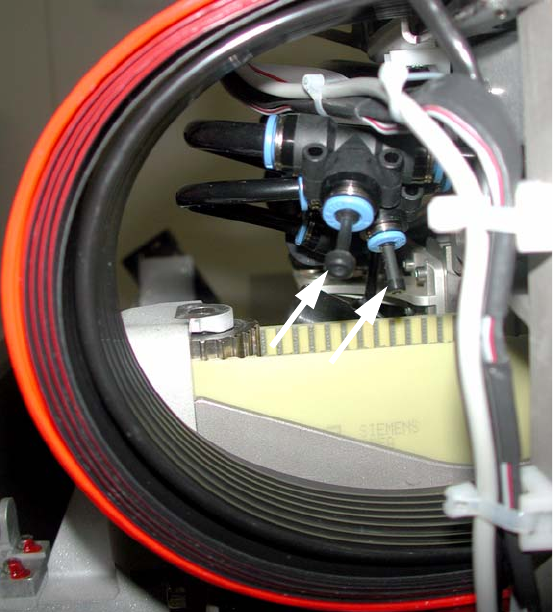

Fig. 2.8.5 Single Head: T pieces with blind plugs
2
: If necessary shorten the two hoses to the head to the extent that the plugs have no contact
also in the outermost gantry position. The hoses must not kink however!
2
2
2
2
2
2
2
2
2
2
2
Assembly instructions Head Reconfiguration SIPLACE D1 / D2
Edition 03/2007
80
: Fix the silicon hose size 8 and the silicon hose size 6 as shown in Fig. 2.8.4.
2
Fig. 2.8.6 Maintain a distance to the ribbon cable
2
2
2
2
2
2
2
2
2
2
2
2
2Cable routing must take place as described in the service instructions D1/D2, FS 03, chapter on
cable routing! 2
X18
X19
X20
Component
camera
PCB
camera
X14
X13
Assembly instructions Head Reconfiguration SIPLACE D1 / D2
Edition 03/2007
81
: Connect the following connectors
- 3 x step motors (X18 / X19 / X20)
- 2x component camera
(2x PCB camera are already connected).
2
Fig. 2.8.7 5 cables: left (00359364-), centre (00367074-), right (00350382-) and 2x component camera
2
Fig. 2.8.8 2 ribbon cables of the placement head ( Fig. 2.8.7 viewed from the left)
