1-4
Tg1576-ID-SO
0708-002
1.1 Specications
Table A1-4
Item Description
14. Specied
Position and Type

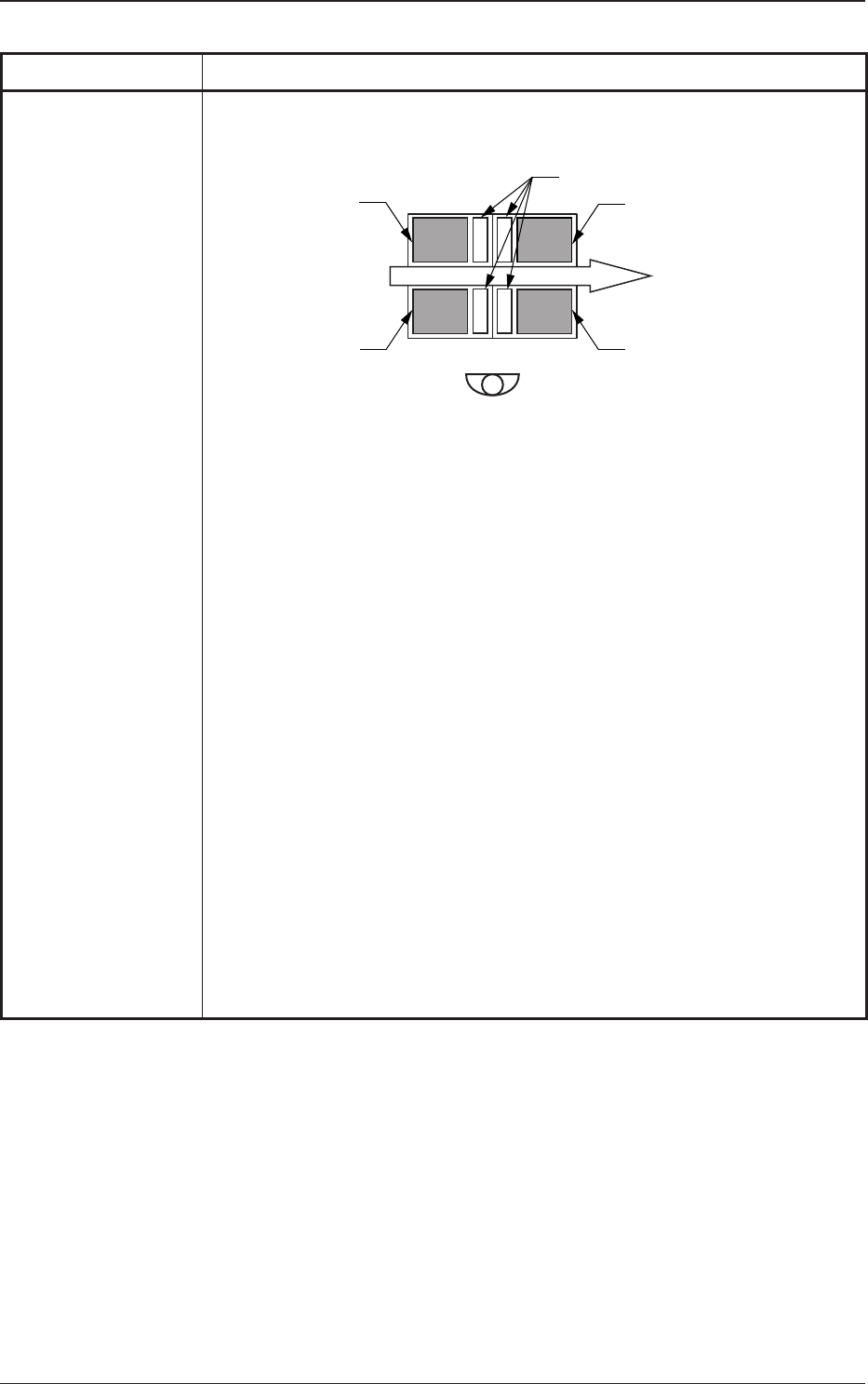

The installation locations for the single-transfer tray feeder have been set as
follows.
FP-G400
FP-G400 FP-G400
FP-G400
Block 1
Block 2
Block 3
Block 4
Max. 5 feeders to be set
Notes : (a) When the single-transfer tray feeder FP-G400 is to be installed,
set it on the location specied in each block.
• Block 1: Slot No. 101 to 139
(The drawer connector is connected in slot Nos. 103
, 105 or
107)
• Block 2 : Slot No. 211 to 24
9
(The drawer connector is connected in slot Nos. 213, 215 or
217)
• Block 2 : Slot No. 3
11 to 349
(The drawer connector is connected in slot Nos. 313, 315 or
317)
• Block 2 : Slot No. 401 to 439
(The drawer connector is connected in slot Nos. 403
, 405 or
407)
(b) W
hen the tape feeders (max. 5 feeders) are to be set on the feeder
base where the single-transfer tray feeder has been installed, they
can be set on the following positions.
• For Block 1 : 141 to 14
9
• For Block 2 : 201 to 209
•
For Block 3
: 301 to 309
• For Block 4 : 441 to 449
1-5
Tg1576-ID-SO
1.2 Standard Accessory Parts List
Table A1-5
No. Name Part No. Part Name Q’ty Remarks
1 Tray Magnet 630 129 6302 MF-G100 2
2 Magnet Attachment ------ MA-G100 1 Sets
3
Pallet Locating
Accuracy Adjusting
Jig
630 159 3586 1
4 Fuse (Time-Delay) 423 022 8104 FUSE 250V 2A 1
•
spare
0711-002
1.2 Standard Accessory Parts List
1-6
Tg1576-ID-SO
2. Various Functions and Outline of Actions
0708-002
2. Various Functions and Outline of Actions
2.1 Various Functions
•
Direct Pickup
The components are taken out directly from the pallet on the single-transfer
tray feeder using the placement head on the GHX main machine.
•
Block
Allocation Function
Up to
9 different pieces of component allocation data can be set for one
pallet.
When small trays are handled, additional types of components can be
allocated by installing several trays, increasing the number of components
to be used.
Moreover, not only grid-type trays but also staggered-type ones can be
handled regarding them as parallel-bank-arranged ones (overlapped grid-
type trays), making it possible to make exible use of trays.
